R14108 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

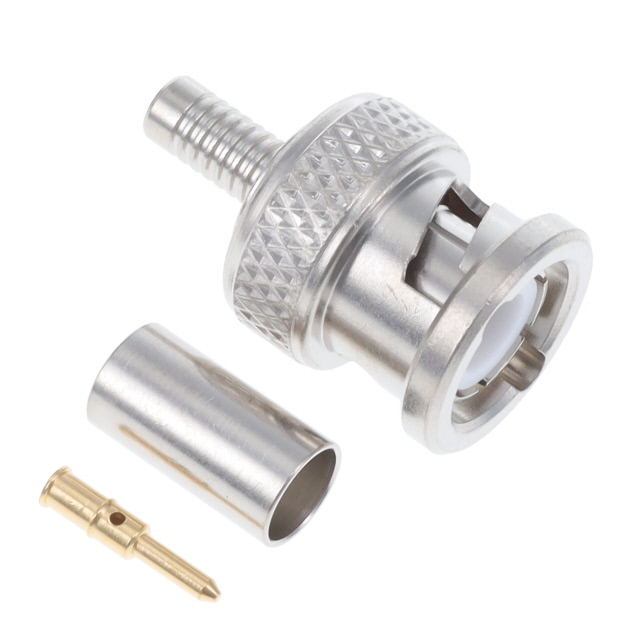

BNC / STRAIGHT PLUG CRIMP TYPE C
| Part | Body Material | Voltage Rating | Operating Temperature [Min] | Operating Temperature [Max] | Dielectric Material | Body Finish | Center Contact Plating | Housing Color | Contact Termination | Connector Style | Center Contact Material | Shield Termination | Frequency - Max [Max] | Number of Ports | Cable Group | Cable Group | Mounting Type | Fastening Type | Connector Type | Impedance | Mating Cycles |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | Brass | 500 V | -35 °C | 70 °C | Polypropylene (PP) | Nickel | Gold | Silver | Crimp | BNC | Brass | Crimp | 1.5 GHz | 1 | RG-58 | 141 | Free Hanging (In-Line) | Bayonet Lock | Plug Male Pin | 50 Ohms | |
 Radiall USA, Inc. | Brass | 500 V | -65 ░C | 165 °C | Polytetrafluoroethylene (PTFE) | Nickel | Gold | Silver | Crimp | BNC | Brass | Crimp | 4 GHz | 1 | 223 400 RG-142 | Free Hanging (In-Line) | Bayonet Lock | Plug Male Pin | 50 Ohms | 500 |
