MPM-90 Series

Catalog

AC/DC CONVERTER 48V 90W

Part	Load Regulation	Line Regulation	Voltage - Input [Min]	Voltage - Input [Max]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Power (Watts)	Number of Outputs	Efficiency	Voltage - Output 1	Package / Case	Mounting Type	Current - Output (Max) [Max]	Approval Agency	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Type	Voltage - Isolation	Current - Output 1

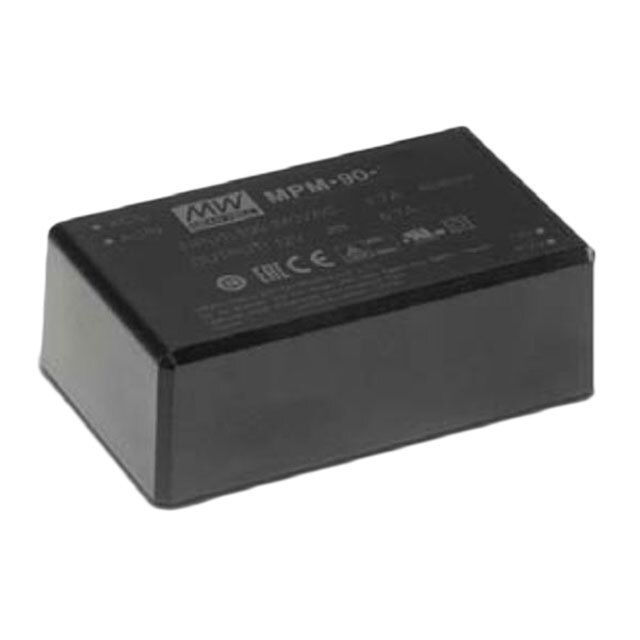

MEAN WELL USA Inc. MPM-90-48	0.5 %	0.5 %	80 VAC 113 VDC	264 VAC 370 VDC	1.16 in	3.43 "	29.5 mm	2.05 in	52 mm	87 mm	90 W	1	93 %	48 V	4-DIP Module	Through Hole	1.88 A	CB CE cURus EAC TUV	Household Appliances Medical	80 °C	-30 °C	Enclosed

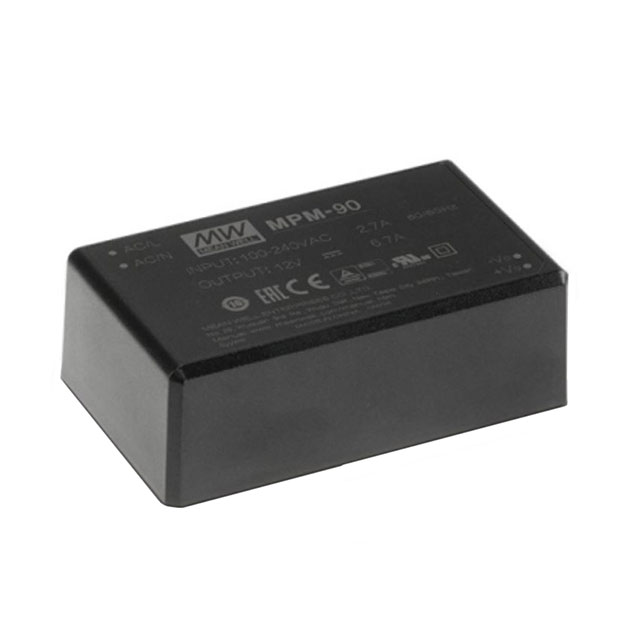

MEAN WELL USA Inc. MPM-90-15	0.5 %	0.5 %	80 VAC 113 VDC	264 VAC 370 VDC	1.16 in	3.43 "	29.5 mm	2.05 in	52 mm	87 mm	85 W	1	92.5 %	15 V	4-DIP Module	Through Hole		CB CE cURus EAC TUV	Household Appliances Medical	80 °C	-30 °C	Enclosed

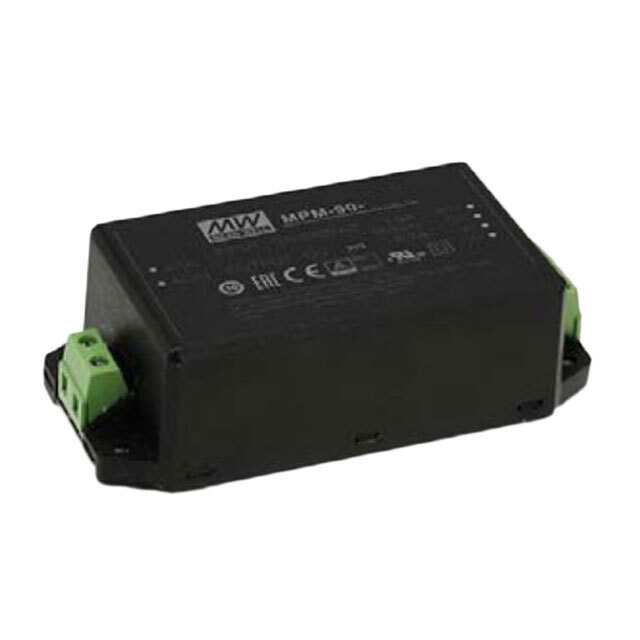

MEAN WELL USA Inc. MPM-90-24ST			80 VAC 113 VDC	264 VAC 370 VDC	1.32 in	4.29 "	33.5 mm	2.05 in	52 mm	109 mm	90 W 99 W	1	93 %	24 V		Chassis Mount		CB CE cURus EAC TUV	Household Appliances Medical	80 °C	-30 °C	Enclosed	4000 V	3.75 A
