3102-2 Series
Manufacturer: Mill-Max Manufacturing Corp.
Catalog

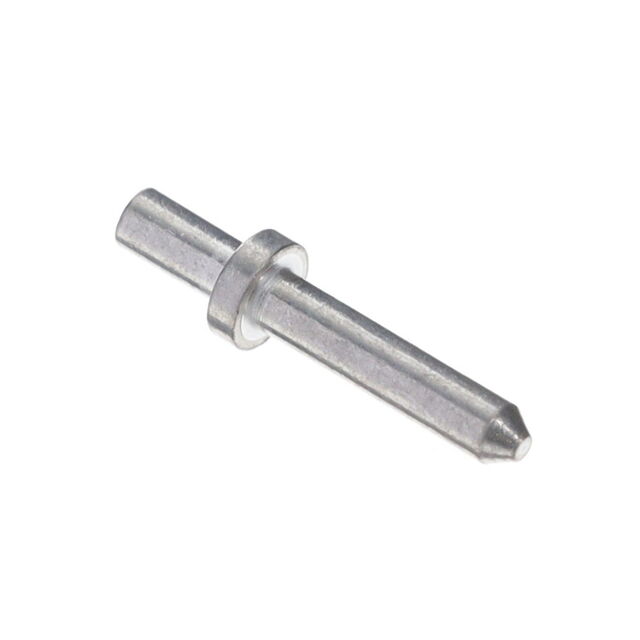

CONN PC PIN CIRC
| Part | Contact Finish Thickness | Contact Finish Thickness | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Length - Overall | Length - Overall | Termination | Length - Below Flange [x] | Length - Below Flange [x] | Pin Size - Above Flange [diameter] | Pin Size - Above Flange [diameter] | Length - Above Flange | Length - Above Flange | Terminal Type | Contact Finish | Contact Material | Flange Diameter [diameter] | Flange Diameter [diameter] | Insulation | Mounting Type | Board Thickness | Board Thickness | Terminal Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Mill-Max Manufacturing Corp. | 200 Áin | 5.08 Ám | 1.09 mm | 0.043 in | 7.37 mm | 0.29 in | Swage | 0.082 in | 2.08 mm | 1.02 mm | 0.04 in | 4.78 mm | 0.188 " | PC Pin | Tin | Brass Alloy | 1.78 mm | 0.07 in | Non-Insulated | Through Hole | 0.062 in | 1.57 mm | Single End |
 Mill-Max Manufacturing Corp. | 200 Áin | 5.08 Ám | 1.09 mm | 0.043 in | 7.37 mm | 0.29 in | Swage | 0.082 in | 2.08 mm | 1.02 mm | 0.04 in | 4.78 mm | 0.188 " | PC Pin | Tin-Lead | Brass Alloy | 1.77 mm | 0.07 in | Non-Insulated | Through Hole | 0.062 in | 1.57 mm | Single End |
