0997-9 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

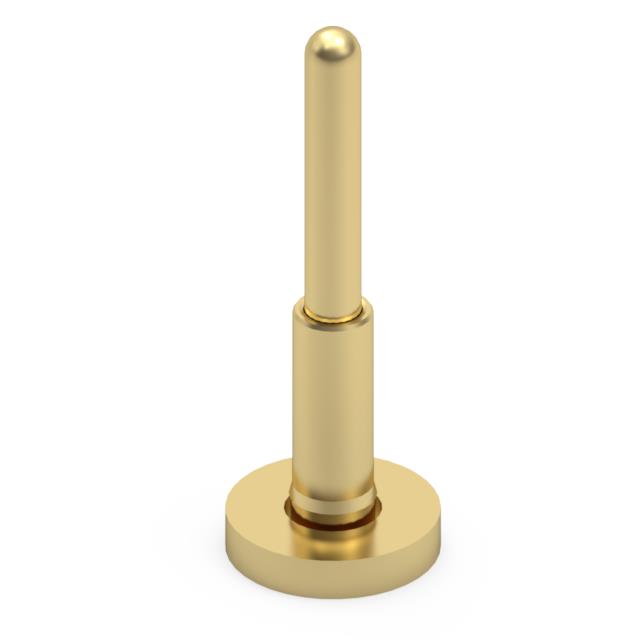

CONTACT SPRING LOADED SMD GOLD
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Current Rating (Amps) | Maximum Working Height [Max] | Maximum Working Height [Max] | Minimum Working Height | Minimum Working Height | Mating Cycles | Contact Type | Mounting Type | Plunger Size [diameter] | Plunger Size [diameter] | Operating Force - Mid Compression | Contact Finish Thickness | Contact Finish Thickness | Recommended Working Height | Recommended Working Height | Contact Finish | Operating Force - Initial | Pad Layout Dimension [diameter] | Pad Layout Dimension [diameter] | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | -55 C | 125 °C | 5.2 A | 0.43 in | 10.92 mm | 9.52 mm | 0.375 in | 1000000 | Sleeve & Plunger (Pogo Pins) | Surface Mount | 0.042 in | 1.07 mm | 60 gf | 20 µin | 0.51 µm | 10.22 mm | 0.402 in | Gold | 10 gf | 0.159 in | 4.04 mm | Brass Alloy |
