A759MU Series
Manufacturer: KEMET
Beta
⌘K

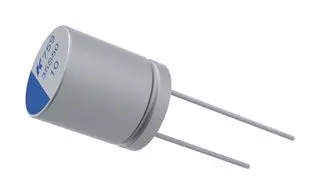

CAP ALUMINUM POLYMER 270UF 35VDC 20%( 10 X 12.5MM) RADIAL 5MM 0.022 OHM 2.2A 2000H 125°C BAG
| Part | Type | Size / Dimension [diameter] | Size / Dimension [diameter] | Voltage - Rated | Tolerance | Lead Spacing | Lead Spacing | Operating Temperature [Min] | Operating Temperature [Max] | Package / Case | ESR (Equivalent Series Resistance) | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Mounting Type | Lifetime @ Temp. | Applications | Ripple Current @ Low Frequency | Capacitance | Ripple Current @ High Frequency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 KEMET | Polymer | 0.394 in | 10 mm | 35 V | 20 % | 0.197 " | 5 mm | -55 C | 125 °C | Can Radial | 22 mOhms | 14 mm | 0.551 in | Through Hole | 2000 Hrs | General Purpose | 187 mA | 270 µF | 3.74 A |
 KEMET | Polymer | 0.394 in | 10 mm | 35 V | 20 % | 0.197 " | 5 mm | -55 C | 125 °C | Can Radial | 22 mOhms | 14 mm | 0.551 in | Through Hole | 2000 Hrs | General Purpose | 187 mA | 330 µF | 3.74 A |
