PAA.M0 Series
Manufacturer: LEMO
Beta
⌘K

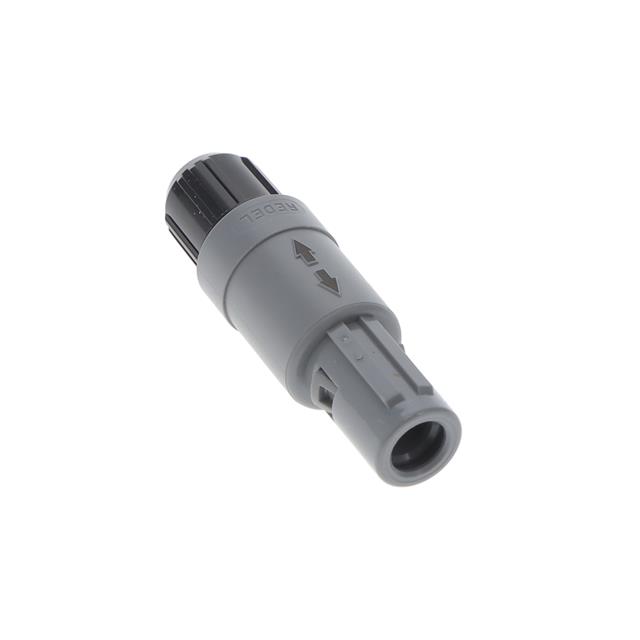

CONN PLUG MALE 4P GOLD SLDR CUP
| Part | Mounting Type | Applications | Operating Temperature [Max] | Operating Temperature [Min] | Insert Material | Current Rating (Amps) | Primary Material | Shell Material | Contact Finish - Mating | Color | Shell Size - Insert | Backshell Material, Plating | Shielding | Cable Opening [custom] | Cable Opening [custom] | Ingress Protection | Number of Positions | Connector Type | Features | Orientation | Fastening Type | Termination | Cable Opening [Min] [custom] | Cable Opening [Max] [custom] | Cable Opening [Min] [custom] | Cable Opening [Max] [custom] | Cable Opening [Min] [diameter] | Cable Opening [Max] [diameter] | Cable Opening [Max] [diameter] | Cable Opening [Min] [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
LEMO | Free Hanging (In-Line) | Automotive Industrial Medical Testing Equipment & Measurement | 150 °C | -50 °C | Polyetheretherketone (PEEK) | 8 A | Plastic | Polysulfone (PSU) | Gold | Gray | M04 | Polysulfone (PSU) | Unshielded | 0.209 in 0.256 in | 5.3 mm 6.5 mm | IP50 | 4 | Male Pins Plug | Backshell | A | Detent Lock Push-Pull | |||||||||
Free Hanging (In-Line) | Automotive Industrial Medical Testing Equipment & Measurement | 150 °C | -50 °C | Polyetheretherketone (PEEK) | 6 A | Plastic | Polysulfone (PSU) | Gold | Gray Yellow | M06 | Polysulfone (PSU) | Unshielded | 0.209 in 0.256 in | 5.3 mm 6.5 mm | IP50 | 6 | Male Pins Plug | Backshell | A | Detent Lock Push-Pull | Crimp | |||||||||
LEMO | Free Hanging (In-Line) | Automotive Industrial Medical Testing Equipment & Measurement | 150 °C | -50 °C | Polyetheretherketone (PEEK) | 6 A | Plastic | Polysulfone (PSU) | Gold | Gray | M06 | Polysulfone (PSU) | Unshielded | IP50 | 6 | Male Pins Plug | Backshell | A | Detent Lock Push-Pull | 0.157 in | 0.205 in | 4 mm | 5.2 mm | |||||||
Free Hanging (In-Line) | Automotive Industrial Medical Testing Equipment & Measurement | 150 °C | -50 °C | Polyetheretherketone (PEEK) | 5 A | Plastic | Polysulfone (PSU) | Gold | Gray | M08 | Polysulfone (PSU) | Unshielded | 0.209 in 0.256 in | 5.3 mm 6.5 mm | IP50 | 8 | Male Pins Plug | Backshell | A | Detent Lock Push-Pull | ||||||||||
LEMO | Free Hanging (In-Line) | Automotive Industrial Medical Testing Equipment & Measurement | 150 °C | -50 °C | Polyetheretherketone (PEEK) | 5 A | Plastic | Polysulfone (PSU) | Gold | Gray | M08 | Polysulfone (PSU) | Unshielded | 0.209 in 0.256 in | 5.3 mm 6.5 mm | IP50 | 8 | Male Pins Plug | Backshell | A | Detent Lock Push-Pull | |||||||||
LEMO | Free Hanging (In-Line) | Automotive Industrial Medical Testing Equipment & Measurement | 150 °C | -50 °C | Polyetheretherketone (PEEK) | 8 A | Plastic | Polysulfone (PSU) | Gold | Gray | M04 | Polysulfone (PSU) | Unshielded | IP50 | 4 | Male Pins Plug | Backshell | A | Detent Lock Push-Pull | 2.7 mm | 0.154 in | 3.9 mm | 0.106 in | |||||||
LEMO | Free Hanging (In-Line) | Automotive Industrial Medical Testing Equipment & Measurement | 150 °C | -50 °C | Polyetheretherketone (PEEK) | 6 A | Plastic | Polysulfone (PSU) | Gold | Gray | M06 | Polysulfone (PSU) | Unshielded | 0.209 in 0.256 in | 5.3 mm 6.5 mm | IP50 | 6 | Male Pins Plug | Backshell | A | Detent Lock Push-Pull | |||||||||
LEMO | Free Hanging (In-Line) | Automotive Industrial Medical Testing Equipment & Measurement | 150 °C | -50 °C | Polyetheretherketone (PEEK) | 8 A | Plastic | Polysulfone (PSU) | Gold | M04 | Polysulfone (PSU) | Unshielded | IP50 | 4 | Male Pins Plug | Backshell | A | Detent Lock Push-Pull | 2.7 mm | 0.154 in | 3.9 mm | 0.106 in | ||||||||
 LEMO | Free Hanging (In-Line) | Automotive Industrial Medical Testing Equipment & Measurement | 150 °C | -50 °C | Polyetheretherketone (PEEK) | 6 A | Plastic | Polysulfone (PSU) | Gold | M06 | Polysulfone (PSU) | Unshielded | IP50 | 6 | Male Pins Plug | Backshell | A | Detent Lock Push-Pull | 0.157 in | 0.205 in | 4 mm | 5.2 mm | ||||||||
LEMO | Free Hanging (In-Line) | Automotive Industrial Medical Testing Equipment & Measurement | 150 °C | -50 °C | Polyetheretherketone (PEEK) | 5 A | Plastic | Polysulfone (PSU) | Gold | Gray Green | Polysulfone (PSU) | Unshielded | IP50 | 7 | Male Pins Plug | Backshell | A | Detent Lock Push-Pull | 2.7 mm | 0.154 in | 3.9 mm | 0.106 in |
