DKIP Series

Catalog

CMC 10A 3LN CHAS MNT

Part	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Voltage Rating - AC	Voltage Rating - DC	Number of Lines	Current Rating (Max) [Max]	DC Resistance (DCR) (Max) [Max]

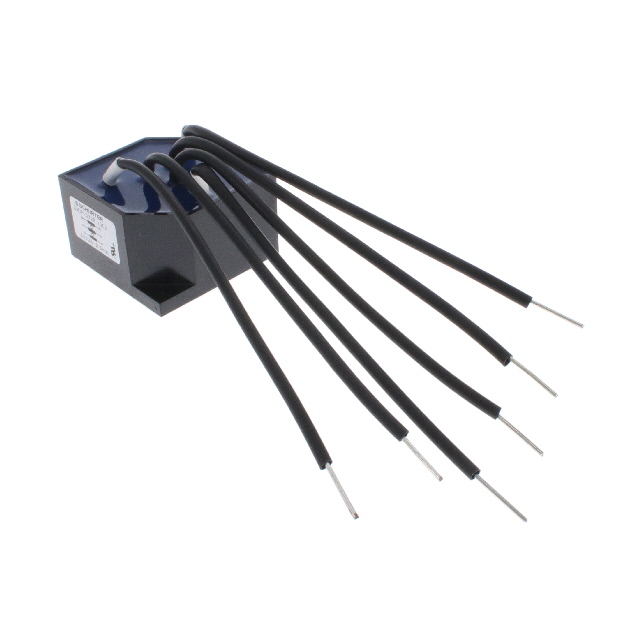

SCHURTER Inc. DKIP-0329-1002	Nonstandard	100 °C	-25 °C	Chassis Mount	1.89 in	48 mm	1.89 in	48 mm	540 V	760 V	3	10 A	15 mOhm

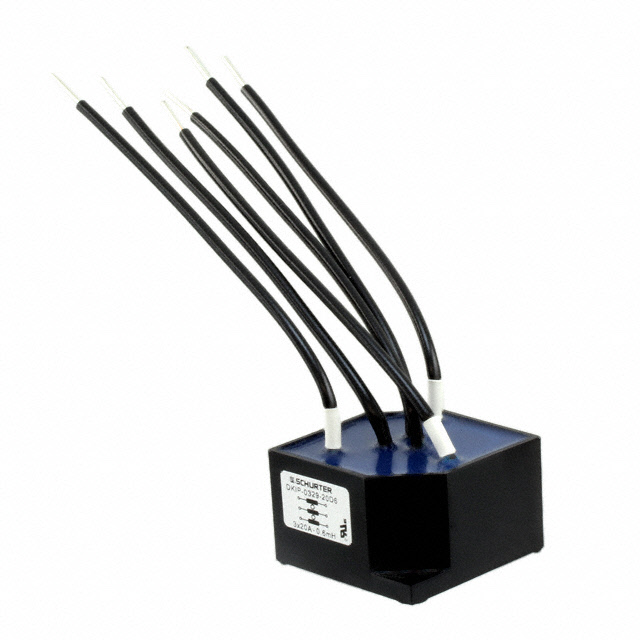

SCHURTER Inc. DKIP-0329-20D6	Nonstandard	100 °C	-25 °C	Chassis Mount	1.89 in	48 mm	1.89 in	48 mm	540 V	760 V	3	20 A	5 mOhm

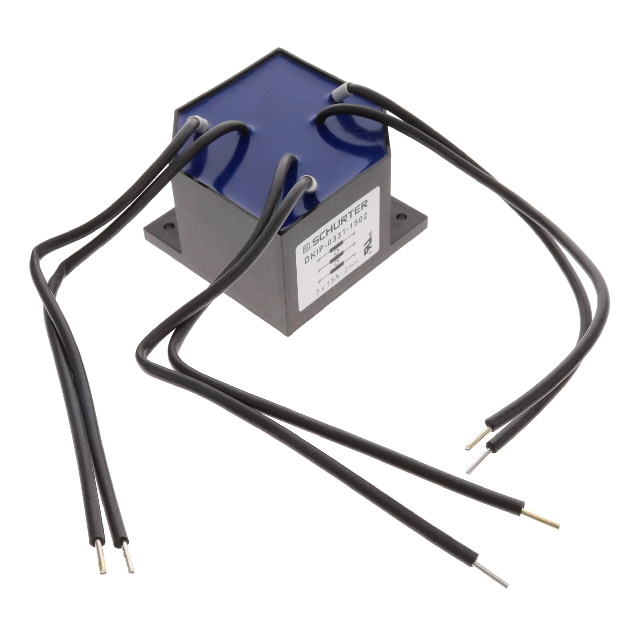

SCHURTER Inc. DKIP-0331-1502	Nonstandard	100 °C	-25 °C	Through Hole		4.724 " 120 mm		4.724 in 120 mm	540 V	760 V	3	15 A	13 mOhm

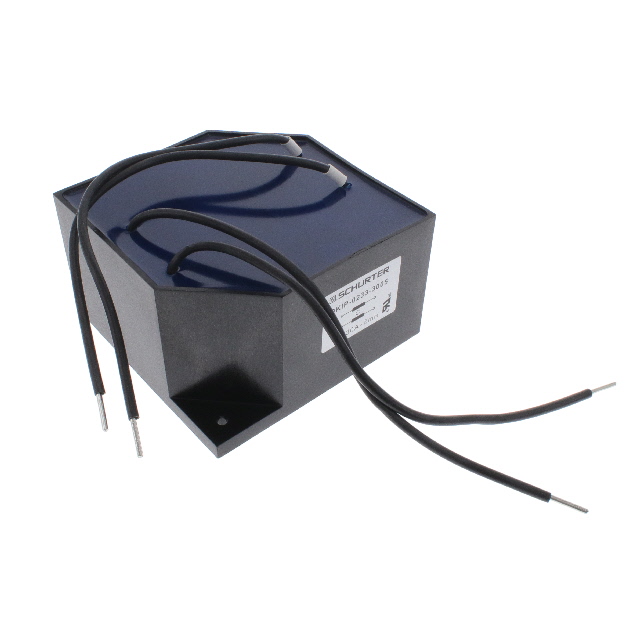

SCHURTER Inc. DKIP-0233-3005	Nonstandard	100 °C	-25 °C	Through Hole		4.724 " 120 mm		4.724 in 120 mm	540 V	760 V	2	30 A	12.5 mOhm

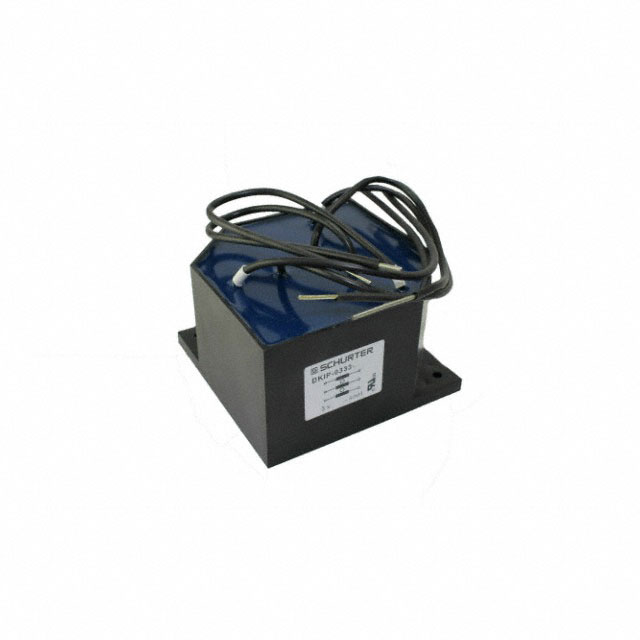

SCHURTER Inc. DKIP-0333-3602	Nonstandard	100 °C	-25 °C	Through Hole		4.724 " 120 mm		4.724 in 120 mm	540 V	760 V	3	36 A	7.6 mOhm

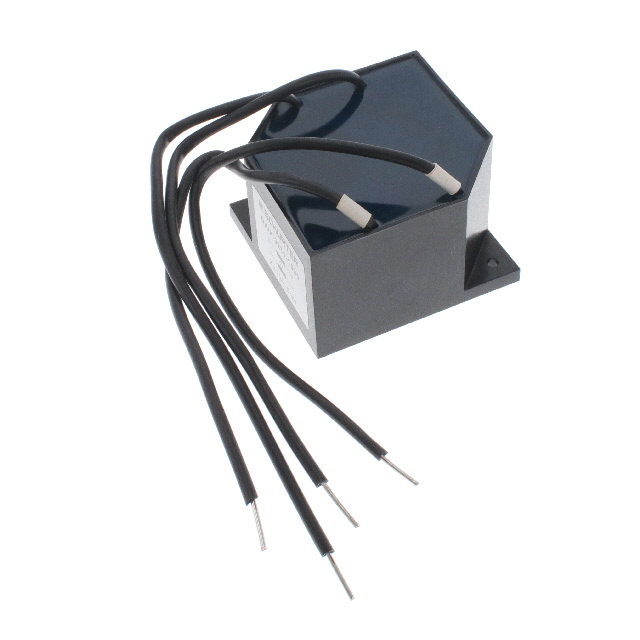

SCHURTER Inc. DKIP-0231-1505	Nonstandard	100 °C	-25 °C	Through Hole	3.15 "	80 mm	3.15 in	80 mm	540 V	760 V	2	15 A	17 mOhm

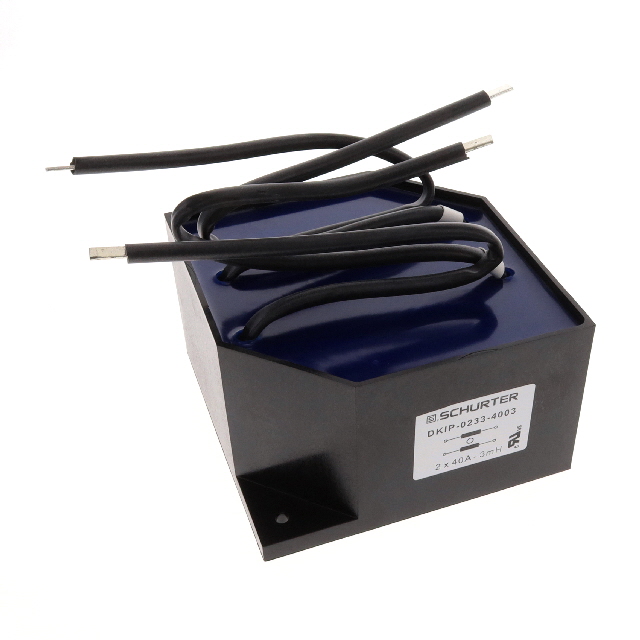

SCHURTER Inc. DKIP-0233-4003	Nonstandard	100 °C	-25 °C	Through Hole		4.724 " 120 mm		4.724 in 120 mm	540 V	760 V	2	40 A

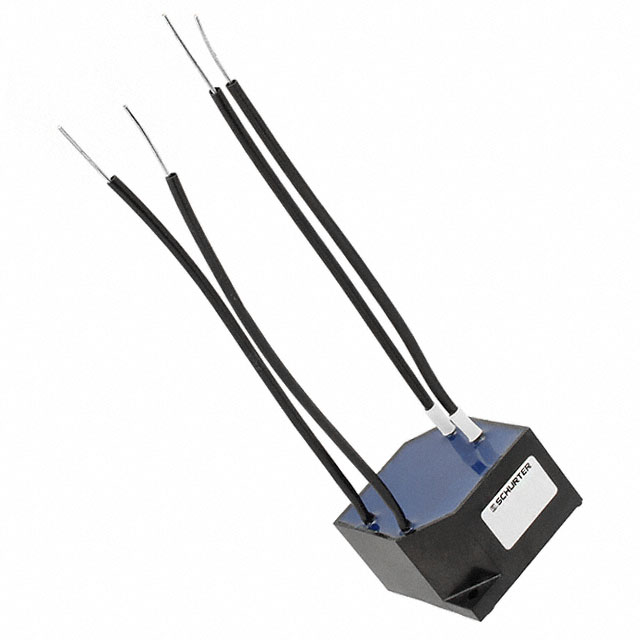

SCHURTER Inc. DKIP-0229-1005	Nonstandard	100 °C	-25 °C	Chassis Mount	1.89 in	48 mm	1.89 in	48 mm	540 V	760 V	2	10 A	18 mOhm

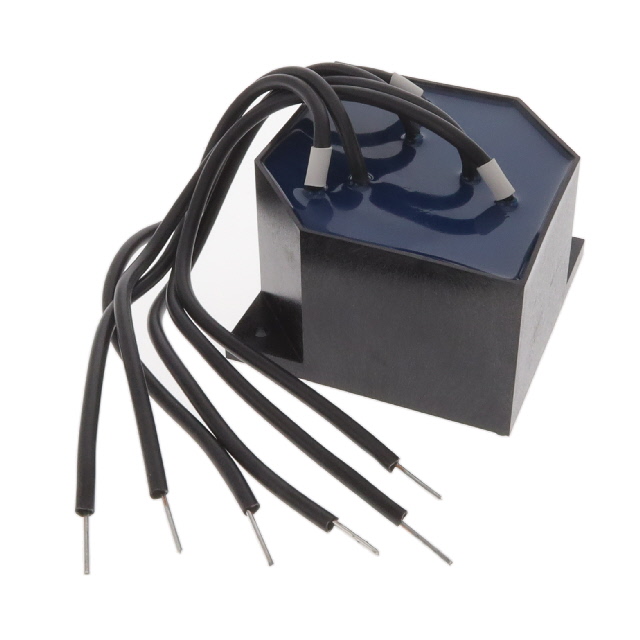

SCHURTER Inc. DKIP-0331-1005	Nonstandard	100 °C	-25 °C	Through Hole		4.724 " 120 mm		4.724 in 120 mm	540 V	760 V	3	10 A	32 mOhm

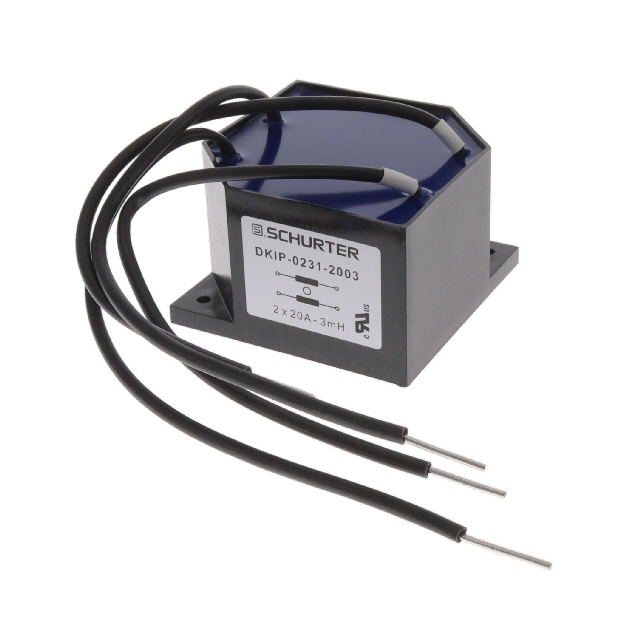

SCHURTER Inc. DKIP-0231-2003	Nonstandard	100 °C	-25 °C	Through Hole	3.15 "	80 mm	3.15 in	80 mm	540 V	760 V	2	20 A	10 mOhm
