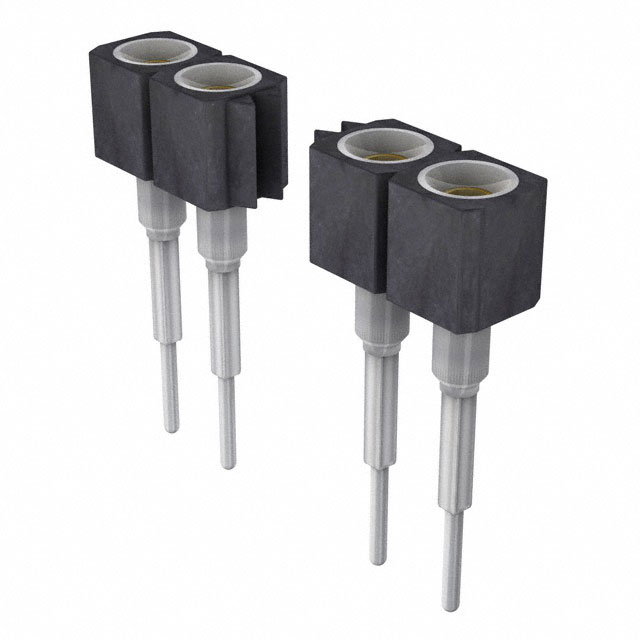

326-83 Series

Manufacturer: Preci-Dip

Catalog

Catalog

CONN SOCKET 17POS 0.1 GOLD PCB

...

Part	Contact Shape	Contact Material	Insulation Material	Number of Rows	Contact Finish - Mating	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions Loaded	Insulation Height [z]	Insulation Height [z]	Contact Finish - Post	Pitch - Mating	Pitch - Mating	Fastening Type	Contact Type	Contact Length - Post [x]	Contact Length - Post [x]	Termination	Contact Finish Thickness - Mating [custom]	Contact Finish Thickness - Mating [custom]	Insulation Color	Material Flammability Rating	Mounting Type	Current Rating (Amps)	Number of Positions	Insulation Height	Insulation Height
Preci-Dip 326-83-117-41-001101	Circular	Beryllium Copper	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	1	Gold	Socket	-55 C	125 °C	All	10.8 mm	0.425 in	Tin	0.1 "	2.54 mm	Push-Pull	Female Socket	0.126 "	3.2 mm	Wire Wrap	29.5 µin	0.75 µm	Black	UL94 V-0	Through Hole	3 A
Preci-Dip 326-83-137-41-001101	Circular	Beryllium Copper	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	1	Gold	Socket	-55 C	125 °C	All	10.8 mm	0.425 in	Tin	0.1 "	2.54 mm	Push-Pull	Female Socket	0.126 "	3.2 mm	Wire Wrap	29.5 µin	0.75 µm	Black	UL94 V-0	Through Hole	3 A	37
Preci-Dip 326-83-125-41-001101	Circular	Beryllium Copper	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	1	Gold	Socket	-55 C	125 °C	All	10.8 mm	0.425 in	Tin	0.1 "	2.54 mm	Push-Pull	Female Socket	0.126 "	3.2 mm	Wire Wrap	29.5 µin	0.75 µm	Black	UL94 V-0	Through Hole	3 A	25
Preci-Dip 326-83-132-41-001101	Circular	Beryllium Copper	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	1	Gold	Socket	-55 C	125 °C	All	10.8 mm	0.425 in	Tin	0.1 "	2.54 mm	Push-Pull	Female Socket	0.126 "	3.2 mm	Wire Wrap	29.5 µin	0.75 µm	Black	UL94 V-0	Through Hole	3 A
Preci-Dip 326-83-119-41-002101	Circular	Beryllium Copper	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	1	Gold	Socket	-55 C	125 °C	All			Tin	0.1 "	2.54 mm	Push-Pull	Female Socket	0.126 "	3.2 mm	Wire Wrap	29.5 µin	0.75 µm	Black	UL94 V-0	Through Hole	3 A	19	13.8 mm	0.543 in
Preci-Dip 326-83-156-41-001101	Circular	Beryllium Copper	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	1	Gold	Socket	-55 C	125 °C	All	10.8 mm	0.425 in	Tin	0.1 "	2.54 mm	Push-Pull	Female Socket	0.126 "	3.2 mm	Wire Wrap	29.5 µin	0.75 µm	Black	UL94 V-0	Through Hole	3 A	56
Preci-Dip 326-83-110-41-003101	Circular	Beryllium Copper	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	1	Gold	Socket	-55 C	125 °C	All			Tin	0.1 "	2.54 mm	Push-Pull	Female Socket	0.126 "	3.2 mm	Wire Wrap	29.5 µin	0.75 µm	Black	UL94 V-0	Through Hole	3 A	10	16.8 mm	0.661 "
Preci-Dip 326-83-126-41-001101	Circular	Beryllium Copper	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	1	Gold	Socket	-55 C	125 °C	All	10.8 mm	0.425 in	Tin	0.1 "	2.54 mm	Push-Pull	Female Socket	0.126 "	3.2 mm	Wire Wrap	29.5 µin	0.75 µm	Black	UL94 V-0	Through Hole	3 A	26
Preci-Dip 326-83-106-41-001101	Circular	Beryllium Copper	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	1	Gold	Socket	-55 C	125 °C	All	10.8 mm	0.425 in	Tin	0.1 "	2.54 mm	Push-Pull	Female Socket	0.126 "	3.2 mm	Wire Wrap	29.5 µin	0.75 µm	Black	UL94 V-0	Through Hole	3 A	6
Preci-Dip 326-83-108-41-002101	Circular	Beryllium Copper	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	1	Gold	Socket	-55 C	125 °C	All			Tin	0.1 "	2.54 mm	Push-Pull	Female Socket	0.126 "	3.2 mm	Wire Wrap	29.5 µin	0.75 µm	Black	UL94 V-0	Through Hole	3 A	8	13.8 mm	0.543 in
