4DLCD Series

Catalog

IPS LCD MODULE 3.5" 320X480 PXL

Part	Dot Pitch [x]	Dot Pitch [y]	Interface	Touchscreen	Viewing Area [y]	Viewing Area [x]	Display Type	Graphics Color	Dot Pixels [y]	Dot Pixels [x]	Display Mode	Backlight	Diagonal Screen Size	Diagonal Screen Size	Dot Pitch [custom]	Dot Pitch [custom]	Diagonal Screen Size [custom]	Diagonal Screen Size [custom]	Viewing Area [z]
4D LCD Pty Ltd 4DLCD-35480320-RTP	0.2 mm	0.2 mm	MCU SPI	Resistive	73.44 mm	48.96 mm	TFT - Color	Blue Green Red	480	320	Transmissive	LED
4D LCD Pty Ltd 4DLCD-43480272	0.2 mm	0.2 mm	Parallel 24-Bit (RGB)	Non-Touch	53.86 mm	95.04 mm	TFT - Color	Blue Green Red	272	480	Transmissive	LED	4.3 in	109.22 mm
4D LCD Pty Ltd 4DLCD-90800480-RTP			Parallel 24-Bit (RGB)	Resistive	111.7 mm	198 mm	TFT - Color	Blue Green Red	480	800 pixels	Transmissive	LED	9 in	228.6 mm	0.09 mm	0.23 mm
4D LCD Pty Ltd 4DLCD-35480320-CTP-CLB	0.2 mm	0.2 mm	MCU SPI	Capacitive	73.44 mm	48.96 mm	TFT - Color	Blue Green Red	480	320	Transmissive	LED
4D LCD Pty Ltd 4DLCD-90800480-CTP			Parallel 24-Bit (RGB)	Capacitive	111.7 mm	198 mm	TFT - Color	Blue Green Red	480	800 pixels	Transmissive	LED	9 in	228.6 mm	0.09 mm	0.23 mm

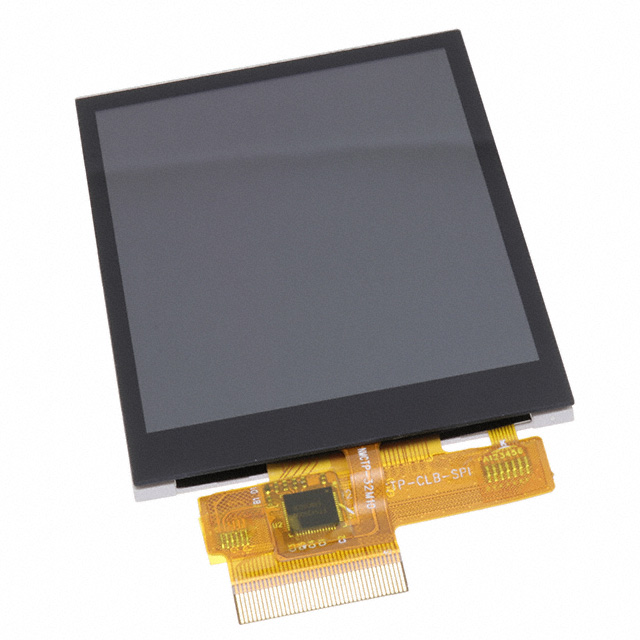

4D LCD Pty Ltd 4DLCD-32320240-CTP	0.18 mm	0.18 mm	MCU SPI	Capacitive	48.6 mm		TFT - Color	Blue Green Red	320	240	Transmissive	LED					81.28 mm	3.2 in	64.8 mm

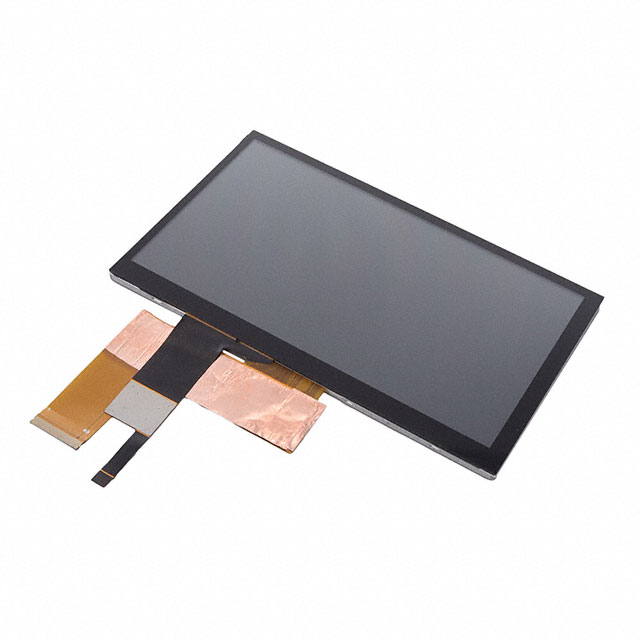

4D LCD Pty Ltd 4DLCD-70800480-CTP	0.19 mm	0.19 mm	Parallel 24-Bit (RGB)	Capacitive	85.63 mm	153.84 mm	TFT - Color	Blue Green Red	480	800 pixels	Transmissive	LED	7 "	177.8 mm

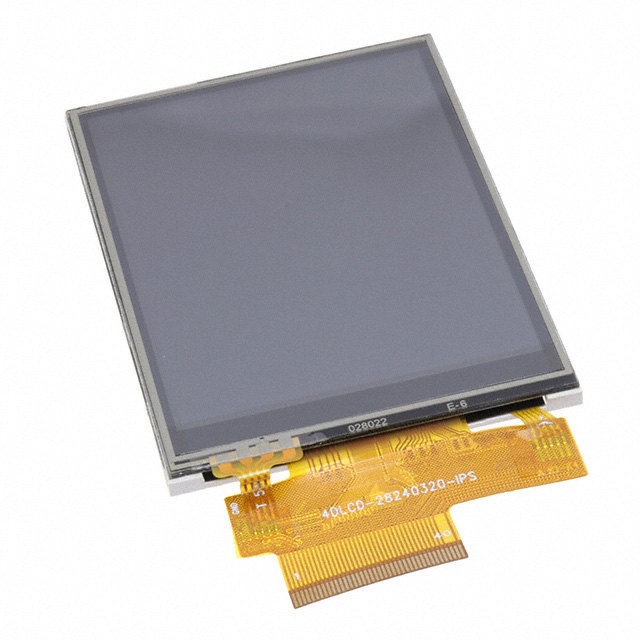

4D LCD Pty Ltd 4DLCD-28320240-RTP	0.18 mm	0.18 mm	MCU SPI	Resistive	43.2 mm		TFT - Color	Blue Green Red	320	240	Transmissive	LED	2.8 in	71.12 mm					57.6 mm

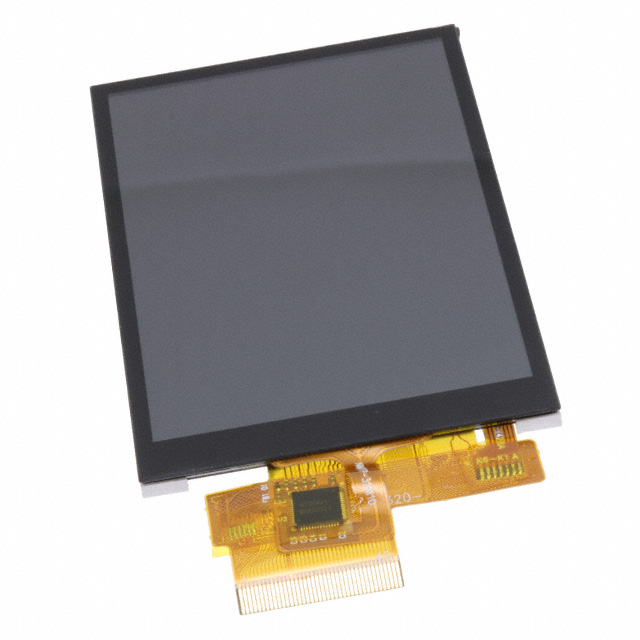

4D LCD Pty Ltd 4DLCD-35480320-CTP	0.2 mm	0.2 mm	MCU SPI	Capacitive	73.44 mm	48.96 mm	TFT - Color	Blue Green Red	480	320	Transmissive	LED

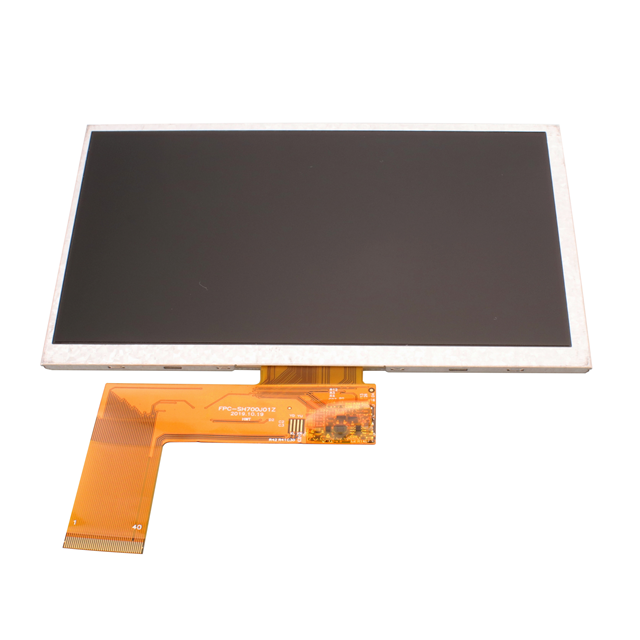

4D LCD Pty Ltd 4DLCD-70800480	0.19 mm	0.19 mm	Parallel 24-Bit (RGB)	Non-Touch	85.63 mm	153.84 mm	TFT - Color	Blue Green Red	480	800 pixels	Transmissive	LED	7 "	177.8 mm
