MP2736 Series

Catalog

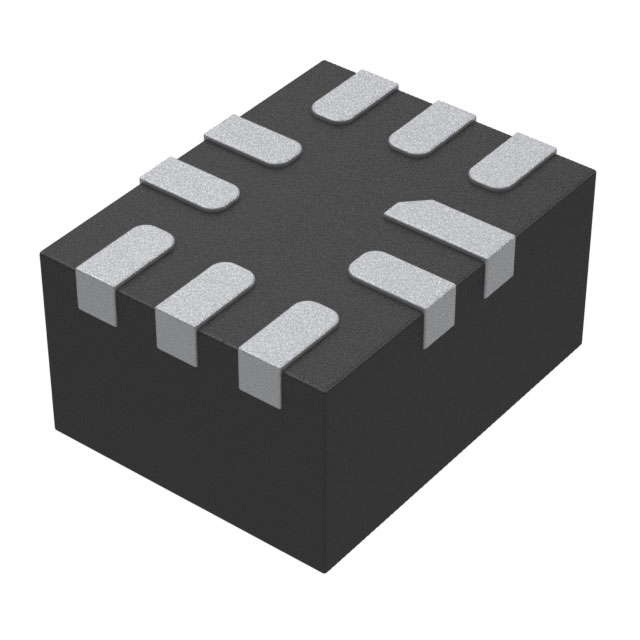

IC SWITCH SPDT X 2 450MOHM 10QFN

Part	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Supply, Single (V+) [Min]	Voltage - Supply, Single (V+) [Max]	On-State Resistance (Max) [Max]	Mounting Type	Package / Case	-3db Bandwidth	Current - Leakage (IS(off)) (Max)	Switch Time (Ton, Toff) (Max) [custom]	Switch Time (Ton, Toff) (Max) [custom]	Number of Circuits	Supplier Device Package [y]	Supplier Device Package	Supplier Device Package [x]	Channel-to-Channel Matching (ΔRon)	Channel Capacitance (CS(off), CD(off)) [custom]	Channel Capacitance (CS(off), CD(off)) [custom]	Crosstalk	Multiplexer/Demultiplexer Circuit	Switch Circuit
Monolithic Power Systems Inc. MP2736DQG-LF-Z	85 C	-40 ¯C	1.65 V	5.5 V	450 mOhm	Surface Mount	10-VFQFN	50 MHz	40 nA	36 ns	30 ns	2	1.8	10-QFN	1.4	10 mOhm	55 pF	55 pF	-70 dB	2:1	SPDT
Monolithic Power Systems Inc. MP2736DQG-LF-P	85 C	-40 ¯C	1.65 V	5.5 V	450 mOhm	Surface Mount	10-VFQFN	50 MHz	40 nA	36 ns	30 ns	2	1.8	10-QFN	1.4	10 mOhm	55 pF	55 pF	-70 dB	2:1	SPDT
