RCH895NP Series
Manufacturer: Sumida America Components Inc.
Beta
⌘K
FIXED IND 220UH 500MA 380MOHM TH
| Part | Current - Saturation (Isat) | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Type | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Material - Core | Tolerance | Size / Dimension [diameter] | Size / Dimension [diameter] | Shielding | Inductance Frequency - Test | Package / Case | Current Rating (Amps) | Inductance | DC Resistance (DCR) [Max] | DC Resistance (DCR) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sumida America Components Inc. | 640 mA | 0.374 " | 9.5 mm | Drum Core Wirewound | Through Hole | -40 C | 100 °C | Ferrite | 10 % | 0.307 in | 7.8 mm | Unshielded | 1 kHz | Radial Vertical Cylinder (Open) | 0.5 A | 220 µH | 380 mOhm | |

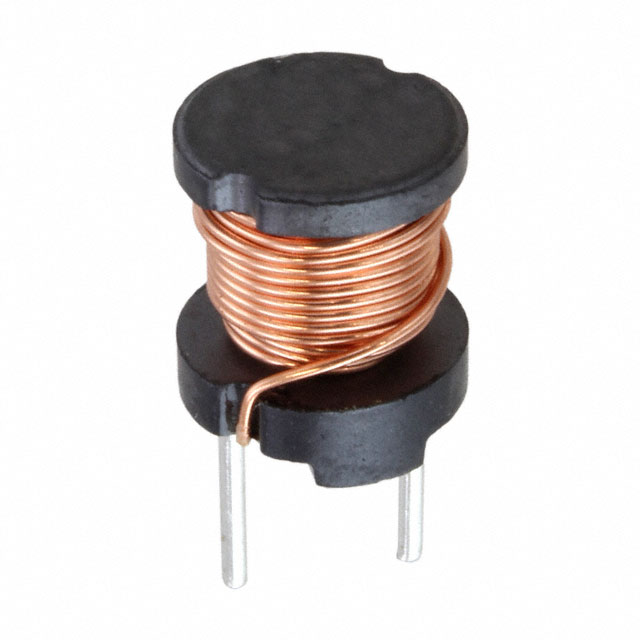

 Sumida America Components Inc. | 740 mA | 0.374 " | 9.5 mm | Drum Core Wirewound | Through Hole | -40 C | 100 °C | Ferrite | 10 % | 0.307 in | 7.8 mm | Unshielded | 1 kHz | Radial Vertical Cylinder (Open) | 0.61 A | 150 µH | 270 mOhm | |

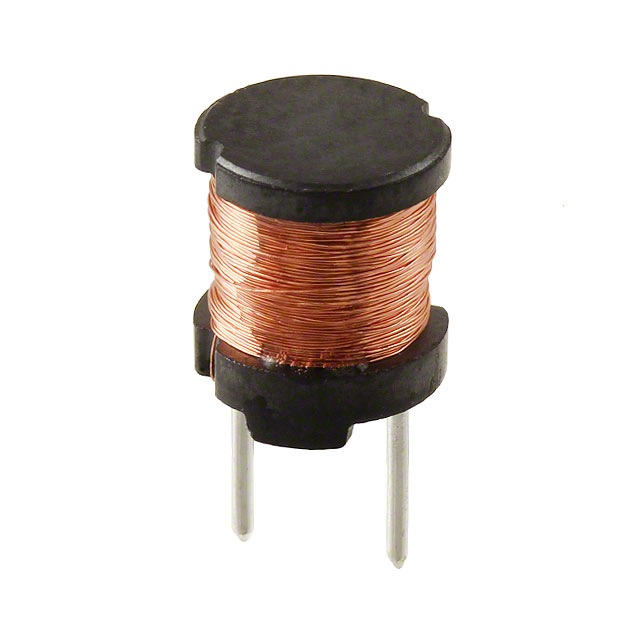

 Sumida America Components Inc. | 48 mA | 0.374 " | 9.5 mm | Drum Core Wirewound | Through Hole | -40 C | 100 °C | Ferrite | 10 % | 0.307 in | 7.8 mm | Unshielded | 1 kHz | Radial Vertical Cylinder (Open) | 0.037 A | 33 mH | 64.2 Ohm | |

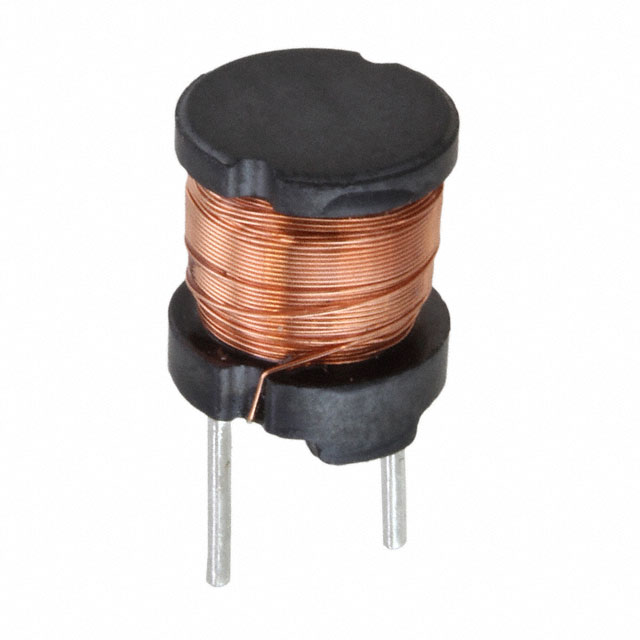

 Sumida America Components Inc. | 100 mA | 0.374 " | 9.5 mm | Drum Core Wirewound | Through Hole | -40 C | 100 °C | Ferrite | 10 % | 0.307 in | 7.8 mm | Unshielded | 1 kHz | Radial Vertical Cylinder (Open) | 75 mA | 8.2 mH | 15.3 Ohm | |
 Sumida America Components Inc. | 73 mA | 0.374 " | 9.5 mm | Drum Core Wirewound | Through Hole | -40 C | 100 °C | Ferrite | 10 % | 0.307 in | 7.8 mm | Unshielded | 1 kHz | Radial Vertical Cylinder (Open) | 59 mA | 12 mH | 25 Ohm | |
Sumida America Components Inc. | 2.1 A | 0.374 " | 9.5 mm | Drum Core Wirewound | Through Hole | -40 C | 100 °C | Ferrite | 10 % | 0.307 in | 7.8 mm | Unshielded | 2.52 MHz | Radial Vertical Cylinder (Open) | 1.8 A | 15 µH | 50 mOhm | |
Sumida America Components Inc. | 1 A | 0.374 " | 9.5 mm | Drum Core Wirewound | Through Hole | -40 C | 100 °C | Ferrite | 10 % | 0.307 in | 7.8 mm | Unshielded | 2.52 MHz | Radial Vertical Cylinder (Open) | 760 mA | 82 µH | 160 mOhm | |
Sumida America Components Inc. | 42 mA | 0.374 " | 9.5 mm | Drum Core Wirewound | Through Hole | -40 C | 100 °C | Ferrite | 10 % | 0.307 in | 7.8 mm | Unshielded | 1 kHz | Radial Vertical Cylinder (Open) | 0.035 A | 39 mH | 74.2 Ohm | |
Sumida America Components Inc. | 430 mA | 0.374 " | 9.5 mm | Drum Core Wirewound | Through Hole | -40 C | 100 °C | Ferrite | 10 % | 0.307 in | 7.8 mm | Unshielded | 1 kHz | Radial Vertical Cylinder (Open) | 320 mA | 470 µH | 890 mOhm | |
Sumida America Components Inc. | 270 mA | 0.374 " | 9.5 mm | Drum Core Wirewound | Through Hole | -40 C | 100 °C | Ferrite | 10 % | 0.307 in | 7.8 mm | Unshielded | 1 kHz | Radial Vertical Cylinder (Open) | 0.21 A | 1200 µH | 2.1 Ohm |
