THD0848 Series
Manufacturer: Delta Electronics
Beta
⌘K

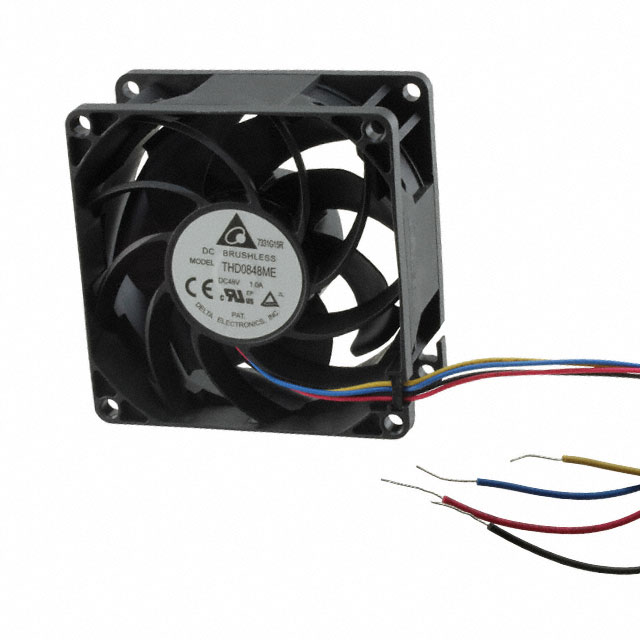

FAN AXIAL 80X38MM 48VDC WIRE
| Part | Lifetime @ Temp. | Current Rating (Amps) | Voltage Range [Max] | Voltage Range [Min] | Material - Frame | Material - Blade | Size / Dimension [z] | Size / Dimension [x] | Approval Agency | Features | Static Pressure | Static Pressure | Fan Type | Termination | RPM | Air Flow | Air Flow | Operating Temperature [Max] | Operating Temperature [Min] | Bearing Type | Weight | Weight | Width [y] | Noise | Power (Watts) | Voltage - Rated |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Delta Electronics | 70000 Hrs | 0.55 A | 75 VDC | 36 VDC | Plastic | Plastic | 80 mm | 80 mm | CE cURus TUV | Locked Rotor Protection PWM Control Speed Sensor (Tach) | 367.6 Pa | 1.476 in H2O | Tubeaxial | 4 Wire Leads | 9500 RPM | 128 CFM | 3.58 mł/min | 70 °C | -10 °C | Ball | 0.353 lb | 160.12 g | 38 mm | 60 dB(A) | 26.4 W | 48 VDC |
