GK0WBM-P Series
Manufacturer: ODU
Beta
⌘K

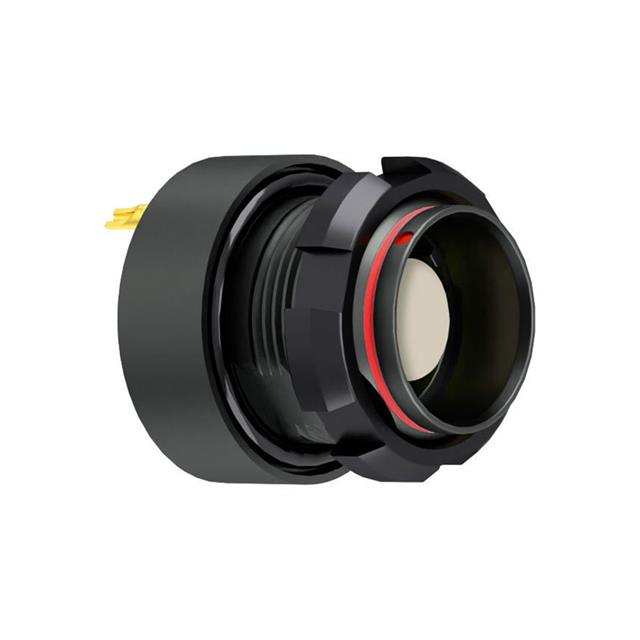

ODU AMC HD RECEPT, STY K, SZ 0,
| Part | Applications | Color | Fastening Type | Contact Finish - Mating | Insert Material | Operating Temperature [Min] | Operating Temperature [Max] | Ingress Protection | Connector Type | Contact Material | Number of Positions | Mounting Type | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Shell Size - Insert [custom] | Current Rating (Amps) | Material Flammability Rating | Shielding | Shell Finish | Shell Material | Mounting Feature | Primary Material | Orientation | Termination | Number of Positions [custom] | Number of Positions [custom] | Voltage Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Industrial Medical Military | Black Silver | Detent Lock Push-Pull | Gold | Polyetheretherketone (PEEK) | -51 °C | 125 °C | IP68 IP69K | Receptacle Female Sockets | Copper Alloy | 9 | Panel Mount | 50 µin | 1.27 µm | 0 | 1 A 5 A | UL94 V-0 | Shielded | Ruthenium over Electroless Nickel | Brass | Bulkhead - Front Side Nut | Metal | B | |||||
Industrial Medical Military | Black Silver | Detent Lock Push-Pull | Gold | Polyetheretherketone (PEEK) | -51 °C | 125 °C | IP68 IP69K | Receptacle Female Sockets | Copper Alloy | 16 | Panel Mount Through Hole | 50 µin | 1.27 µm | 0 | UL94 V-0 | Shielded | Ruthenium over Electroless Nickel | Brass | Bulkhead - Front Side Nut | Metal | B | Solder | |||||
Industrial Medical Military | Black Silver | Detent Lock Push-Pull | Gold | Polyetheretherketone (PEEK) | -51 °C | 125 °C | IP68 IP69K | Receptacle Female Sockets | Copper Alloy | 16 | Panel Mount | 50 µin | 1.27 µm | 0 | UL94 V-0 | Shielded | Ruthenium over Electroless Nickel | Brass | Bulkhead - Front Side Nut | Metal | B | ||||||
Industrial Medical Military | Black Silver | Detent Lock Push-Pull | Gold | Polyetheretherketone (PEEK) | -51 °C | 125 °C | IP68 IP69K | Receptacle Female Sockets | Copper Alloy | 9 | Panel Mount Through Hole | 50 µin | 1.27 µm | 0 | 1 A 5 A | UL94 V-0 | Shielded | Ruthenium over Electroless Nickel | Brass | Bulkhead - Front Side Nut | Metal | B | Solder | ||||
Industrial Medical Military | Black Silver | Detent Lock Push-Pull | Gold | Polyetheretherketone (PEEK) | -51 °C | 125 °C | IP68 IP69K | Receptacle Female Sockets | Copper Alloy | Panel Mount Through Hole | 50 µin | 1.27 µm | 0 | 1 A 5 A | UL94 V-0 | Shielded | Ruthenium over Electroless Nickel | Brass | Bulkhead - Front Side Nut | Metal | B | Solder | 2 | 10 | 250 V | ||
Industrial Medical Military | Black Silver | Detent Lock Push-Pull | Gold | Polyetheretherketone (PEEK) | -51 °C | 125 °C | IP68 IP69K | Receptacle Female Sockets | Copper Alloy | Panel Mount | 50 µin | 1.27 µm | 0 | 1 A 5 A | UL94 V-0 | Shielded | Ruthenium over Electroless Nickel | Brass | Bulkhead - Front Side Nut | Metal | B | 2 | 10 |
