AB-EZP03 Series

Catalog

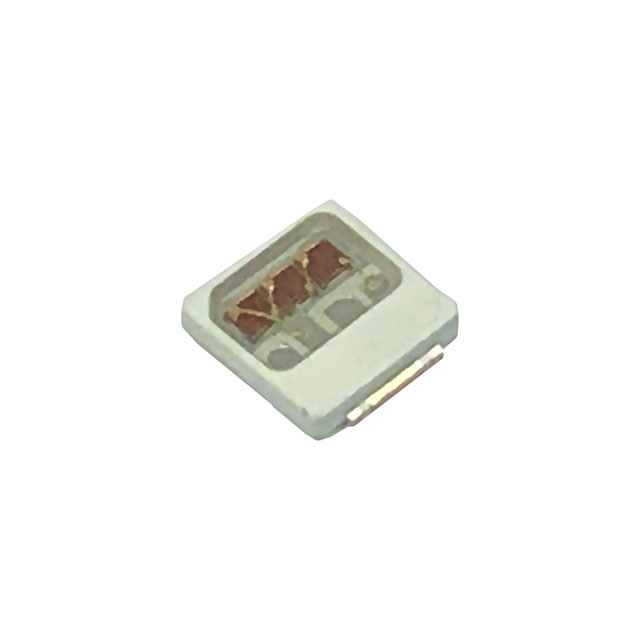

LED AB-EZP RED 625NM 3030

Part	Color	Mounting Type	Package Name	Package / Case	Size / Dimension Width	Size / Dimension Length	Voltage - Forward (Vf) (Typ)	Wavelength (Nominal)	Wavelength (Maximum)	Wavelength	Wavelength (Minimum)	Luminous Flux (Typical)	Viewing Angle	Temperature - Test	Height - Seated (Max)
American Bright Optoelectronics Corporation AB-EZP03R-B3	Red	Surface Mount	1212 3030	1212 (3030 Metric)	0.118 in	0.118 in	24 VDC	625 nm	630 nm	625 nm	620 nm	9 lm	120 °	25 °C	0.02 in
American Bright Optoelectronics Corporation AB-EZP03R-A3	Red	Surface Mount	1212 3030	1212 (3030 Metric)	0.118 in	0.118 in	12 VAC	625 nm	630 nm	625 nm	620 nm	9 lm	120 °	25 °C	0.02 in
American Bright Optoelectronics Corporation AB-EZP03B-B3	Blue	Surface Mount	1212 3030	1212 (3030 Metric)	0.118 in	0.118 in	24 VDC	455 nm	465 nm	455 nm	445 nm	6 lm	120 °	25 °C	0.02 in
