90141 Series
Manufacturer: Preci-Dip
Beta
⌘K

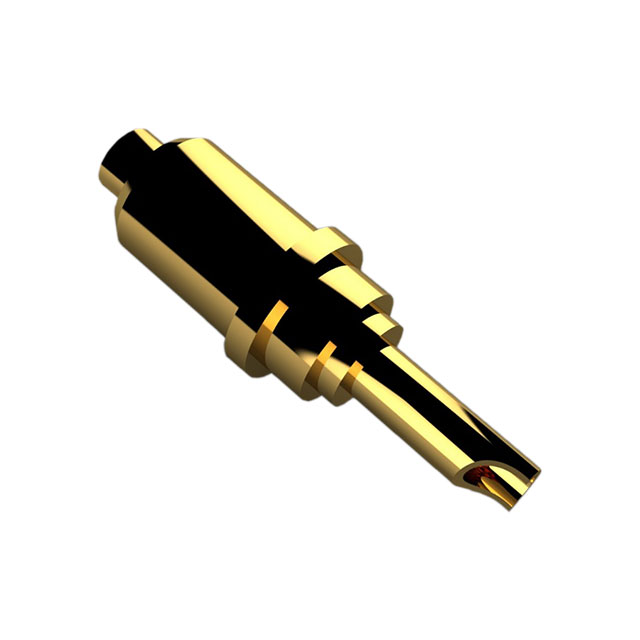

CONTACT SPRING LOADED SLDR CUP
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Plunger Size [diameter] | Plunger Size [diameter] | Operating Force - Initial | Pad Layout Dimension | Pad Layout Dimension | Mating Cycles | Operating Force - Mid Compression | Mounting Type | Contact Material | Contact Finish | Maximum Working Height [Max] | Maximum Working Height [Max] | Current Rating (Amps) | Minimum Working Height | Minimum Working Height [Min] | Contact Type | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Preci-Dip | -55 C | 125 °C | 2.97 mm | 0.117 in | 458.87 gf | 3.44 mm | 0.135 in | 40000 | 662.82 gf | Solder Cup Through Hole | Brass Alloy | Gold | 11.73 mm | 0.462 in | 3 A | 10.08 mm | 0.397 in | Sleeve & Plunger (Pogo Pins) | 0.25 Ám | 10 Áin |
