RF55-31 Series
Manufacturer: Adam Tech
Beta
⌘K
FAKRA PLUG SMB TYPE: STRAIGHT
| Part | Body Material | Dielectric Material | Body Finish | Center Contact Plating | Operating Temperature [Max] | Operating Temperature [Min] | Fastening Type | Housing Color | Center Contact Material | Features | Mounting Type | Number of Ports | Connector Type | Shield Termination | Contact Termination | Connector Style | Cable Group | Cable Group | Frequency - Max [Max] | Impedance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

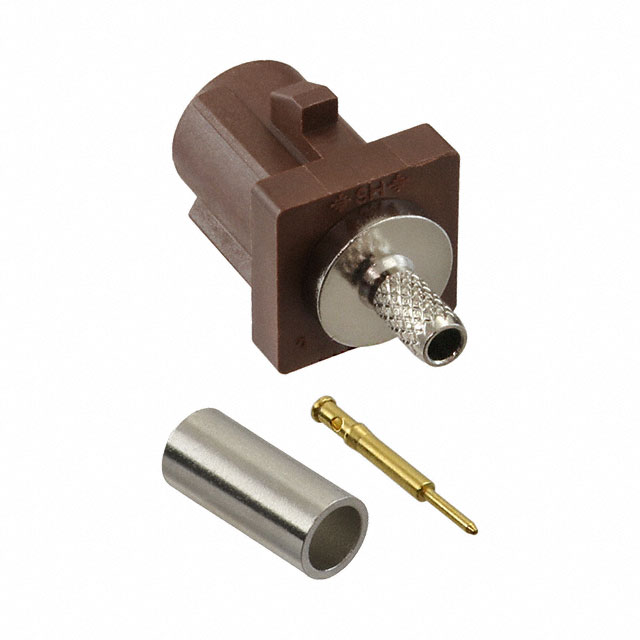

 Adam Tech | Brass | Polytetrafluoroethylene (PTFE) | Nickel | Gold | 85 °C | -40 C | Locking Ramp | Brown | Brass | Code F | Free Hanging (In-Line) | 1 | Plug Male Pin | Crimp | Crimp | Fakra SMB | RG-174 | 316 | 4 GHz | 50 Ohms |

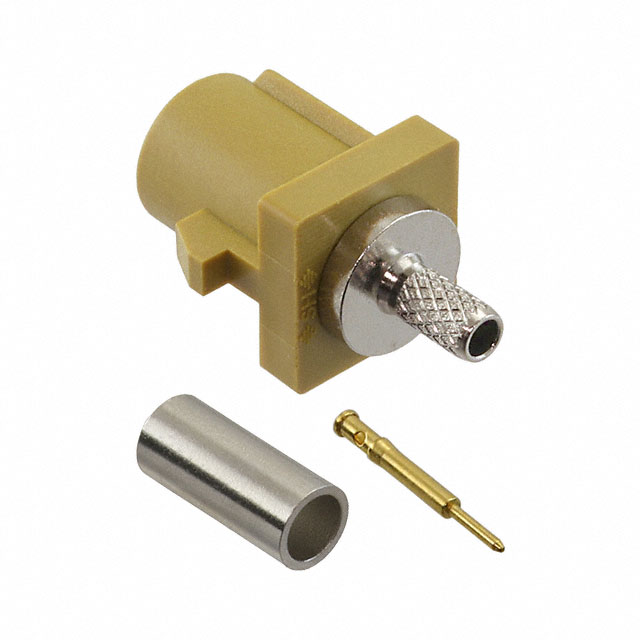

 Adam Tech | Brass | Polytetrafluoroethylene (PTFE) | Nickel | Gold | 85 °C | -40 C | Locking Ramp | Curry | Brass | Code K | Free Hanging (In-Line) | 1 | Plug Male Pin | Crimp | Crimp | Fakra SMB | RG-174 | 316 | 4 GHz | 50 Ohms |

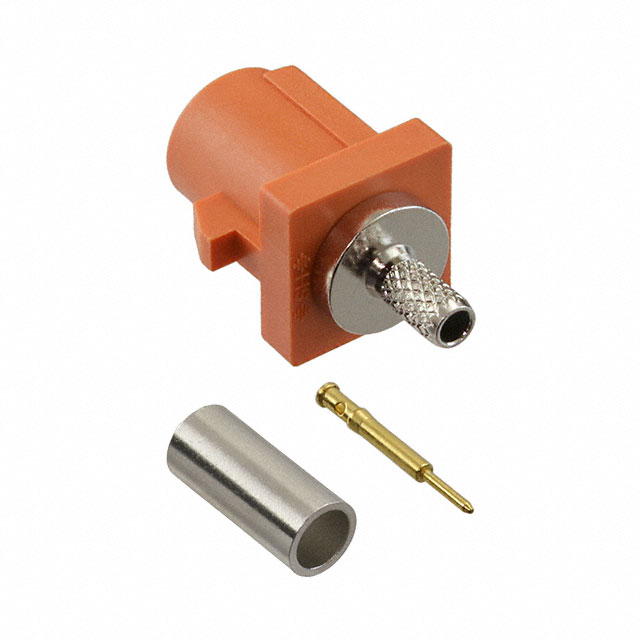

 Adam Tech | Brass | Polytetrafluoroethylene (PTFE) | Nickel | Gold | 85 °C | -40 C | Locking Ramp | Orange Pastel | Brass | Code M | Free Hanging (In-Line) | 1 | Plug Male Pin | Crimp | Crimp | Fakra SMB | RG-174 | 316 | 4 GHz | 50 Ohms |

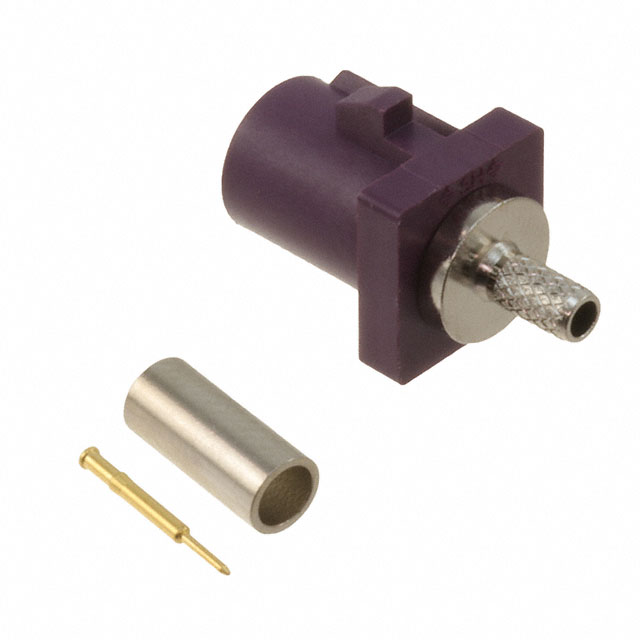

 Adam Tech | Brass | Polytetrafluoroethylene (PTFE) | Nickel | Gold | 85 °C | -40 C | Locking Ramp | Bordeaux Violet | Brass | Code D | Free Hanging (In-Line) | 1 | Plug Male Pin | Crimp | Crimp | Fakra SMB | RG-174 | 316 | 4 GHz | 50 Ohms |
 Adam Tech | Brass | Polytetrafluoroethylene (PTFE) | Nickel | Gold | 85 °C | -40 C | Locking Ramp | Carmine Red | Brass | Code L | Free Hanging (In-Line) | 1 | Plug Male Pin | Crimp | Crimp | Fakra SMB | RG-174 | 316 | 4 GHz | 50 Ohms |

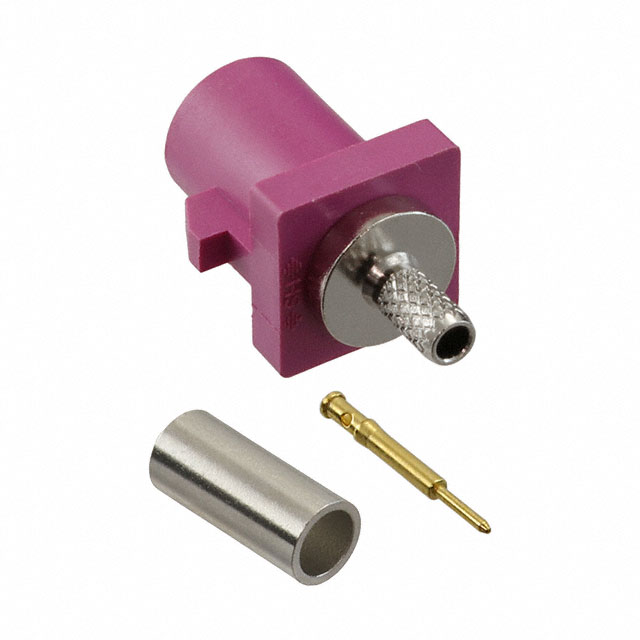

 Adam Tech | Brass | Polytetrafluoroethylene (PTFE) | Nickel | Gold | 85 °C | -40 C | Locking Ramp | Violet | Brass | Code H | Free Hanging (In-Line) | 1 | Plug Male Pin | Crimp | Crimp | Fakra SMB | RG-174 | 316 | 4 GHz | 50 Ohms |
