AGC05 Series
Manufacturer: TE Intercontec
Beta
⌘K

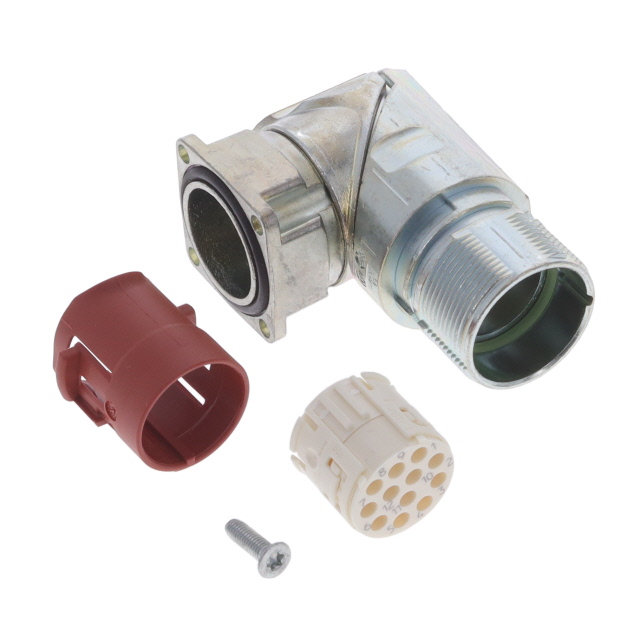

CONN RCPT HSG MALE 12P PNL MT RA
| Part | Fastening Type | Shielding | Contact Shape | Mounting Type | Orientation | Shell Finish | Includes Total Count | Includes | Features | Number of Positions | Shell Size - Insert | Type | Ingress Protection Description | Ingress Protection IP Rating | Material Flammability Rating | Mounting Feature | Operating Temperature (Min) | Operating Temperature (Max) | Note | Insert Material | Shell Material | Connector Type | Housing Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Intercontec | Push-Twist | Unshielded | Circular | Panel Mount Right Angle | Keyed | Chromate | 3 pcs | Backshell Connector O-Ring | Backshell Rotatable | 12 | M23-12 | For Male Pins | Dust Tight Water Resistant Waterproof | IP66 IP67 | UL94 V-0 | Flange | -20 °C | 130 °C | Contacts Not Included | PBT Polybutylene Terephthalate | Zinc Die Cast | Receptacle Housing | Silver |
TE Intercontec | Push-Twist | Unshielded | Circular | Panel Mount Right Angle | Keyed | Chromate | 4 pcs | Contact Block Housing Retainer Screw | Backshell Rotatable | 12 | M23-12 | For Male Pins | Dust Tight Water Resistant Waterproof | IP66 IP67 | UL94 V-0 | Flange | -20 °C | 130 °C | Contacts Not Included | PBT Polybutylene Terephthalate | Zinc Die Cast | Receptacle Housing | Silver |
