MAX22701 Series

Catalog

DGTL ISO 3KV 1CH GATE DVR 8SOIC

Part	Common Mode Transient Immunity (Min) [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Pulse Width Distortion (Max) [Max]	Technology	Supplier Device Package	Approval Agency	Package / Case	Package / Case [y]	Package / Case [x]	Voltage - Isolation	Rise / Fall Time (Typ) [Max]	Rise / Fall Time (Typ)	Number of Channels	Mounting Type	Propagation Delay tpLH / tpHL (Max) [Max] [custom]	Propagation Delay tpLH / tpHL (Max) [Max] [custom]	Current - Output High, Low	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Supplied Contents	Function	Utilized IC / Part	Secondary Attributes	Type
Analog Devices Inc./Maxim Integrated MAX22701DASA+	300 kV/µs	125 °C	-40 °C	2 ns	Capacitive Coupling	8-SOIC	CSA cUL UL	8-SOIC	3.9 mm	0.154 in	3000 VAC	2.5 ns	2.5 ns	1	Surface Mount	36 ns	36 ns
Analog Devices Inc./Maxim Integrated MAX22701EASA+T	300 kV/µs	125 °C	-40 °C	2 ns	Capacitive Coupling	8-SOIC	UL	8-SOIC	3.9 mm	0.154 in	3000 VAC			1	Surface Mount	36 ns	36 ns	2.85 A 4 A	2.5 ns	3.6 ns
Analog Devices Inc./Maxim Integrated MAX22701EASA+	300 kV/µs	125 °C	-40 °C	2 ns	Capacitive Coupling	8-SOIC	UL	8-SOIC	3.9 mm	0.154 in	3000 VAC			1	Surface Mount	36 ns	36 ns	2.85 A 4 A	2.5 ns	3.6 ns

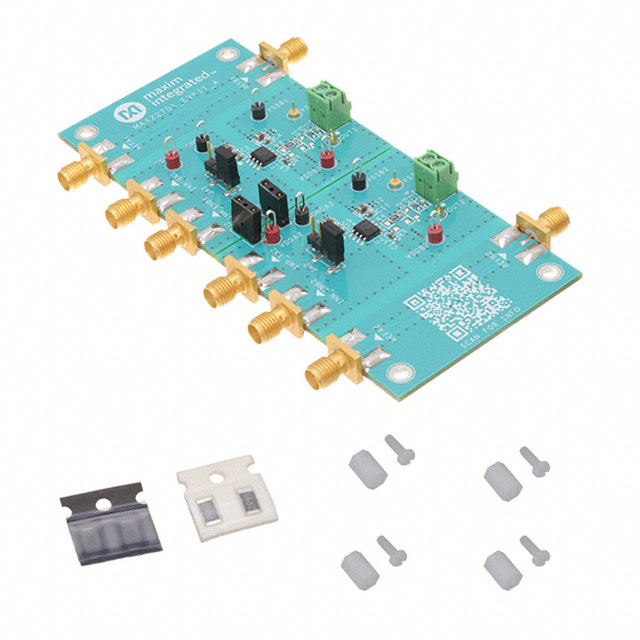

Analog Devices Inc./Maxim Integrated MAX22701EVKIT#																					Board(s)	Gate Driver	MAX22701	Single-Ended	Power Management
