44L45 Series
Manufacturer: Grayhill Inc.
Catalog

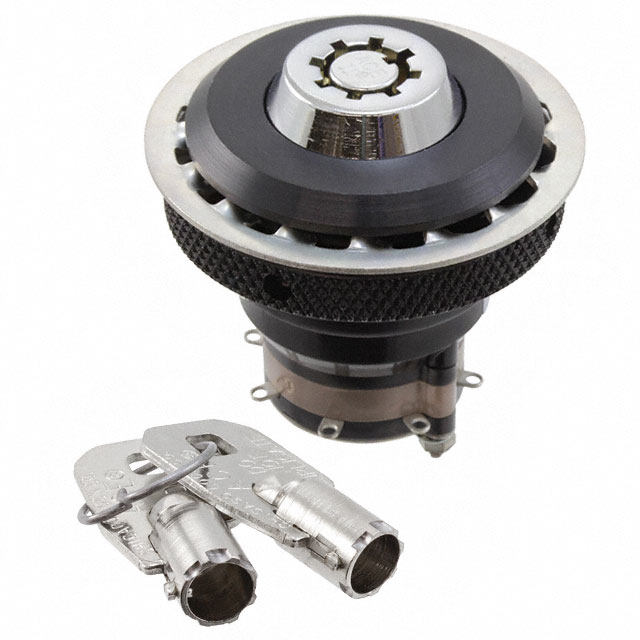

SWITCH KEYLOCK 3POS SP3T 5A 115V
| Part | Electrical Life | Depth Behind Flange | Mechanical Life | Circuit | Switch Function | Mounting Type | Panel Cutout Dimensions [diameter] | Actuator Type | Contact Material | Current Rating (Amps) | Angle of Throw | Voltage Rating - DC | Voltage Rating - AC | Contact Timing | Key Removable Positions | Termination Style | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Grayhill Inc. | 25000 Steps | 48.31 mm | 100000 Cycles | SP3T | On-On-On | Panel Mount | 34.93 mm | Tubular Key | Silver Alloy | 1 A 5 A | 45 ° | 28 V | 115 V | Non-Shorting (BBM) | All | Solder Lug | |
Grayhill Inc. | 25000 Steps | 39.52 mm | 100000 Cycles | DP3T | On-On-On | Panel Mount | 34.93 mm | Tubular Key | Silver Alloy | 1 A 5 A | 45 ° | 28 V | 115 V | Shorting (MBB) | All | Solder Lug | |
Grayhill Inc. | 25000 Steps | 39.52 mm | 100000 Cycles | SP4T | On-On-On-On | Panel Mount | 34.93 mm | Tubular Key | Silver Alloy | 1 A 5 A | 45 ° | 28 V | 115 V | Non-Shorting (BBM) | All | Solder Lug | 4 |
Grayhill Inc. | 25000 Steps | 39.52 mm | 100000 Cycles | SP5T | On-On-On-On-On | Panel Mount | 34.93 mm | Tubular Key | Silver Alloy | 1 A 5 A | 45 ° | 28 V | 115 V | Non-Shorting (BBM) | All | Solder Lug | |
 Grayhill Inc. | 25000 Steps | 48.31 mm | 100000 Cycles | SPDT | On-On | Panel Mount | 34.93 mm | Tubular Key | Silver Alloy | 1 A 5 A | 45 ° | 28 V | 115 V | Shorting (MBB) | All | Solder Lug | 2 |
 Grayhill Inc. | 25000 Steps | 39.52 mm | 100000 Cycles | SP7T | Panel Mount | 34.93 mm | Tubular Key | Silver Alloy | 1 A 5 A | 45 ° | 28 V | 115 V | Non-Shorting (BBM) | All | Solder Lug | 7 | |
Grayhill Inc. | 25000 Steps | 39.52 mm | 100000 Cycles | SPDT | On-On | Panel Mount | 34.93 mm | Tubular Key | Silver Alloy | 1 A 5 A | 45 ° | 28 V | 115 V | Non-Shorting (BBM) | All | Solder Lug | 2 |
Grayhill Inc. | 25000 Steps | 39.52 mm | 100000 Cycles | SP5T | On-On-On-On-On | Panel Mount | Flatted (6.35mm Dia) | Silver Alloy | 1 A 5 A | 45 ° | 28 V | 115 V | Shorting (MBB) | All | Solder Lug | ||
Grayhill Inc. | 25000 Steps | 48.31 mm | 100000 Cycles | SPDT | On-On | Panel Mount | 34.93 mm | Tubular Key | Silver Alloy | 1 A 5 A | 45 ° | 28 V | 115 V | Non-Shorting (BBM) | All | Solder Lug | 2 |
 Grayhill Inc. | 25000 Steps | 57.1 mm | 100000 Cycles | DP3T | On-On-On | Panel Mount | 34.93 mm | Tubular Key | Silver Alloy | 1 A 5 A | 45 ° | 28 V | 115 V | Non-Shorting (BBM) | All | Solder Lug |
