TPS92410 Series

Switch-controlled, direct drive, linear controller for offline LED drivers

Catalog

Switch-controlled, direct drive, linear controller for offline LED drivers

Part	Outputs and Type	Outputs and Type	Supplied Contents	Features	Voltage - Output	Contents	Voltage - Input [Min]	Voltage - Input [Max]	Outputs and Type [custom]	Number of Outputs	Mounting Type	Dimming	Package / Case	Package / Case	Package / Case	Type	Voltage - Supply (Max) [Max]	Supplier Device Package	Operating Temperature [Min]	Operating Temperature [Max]

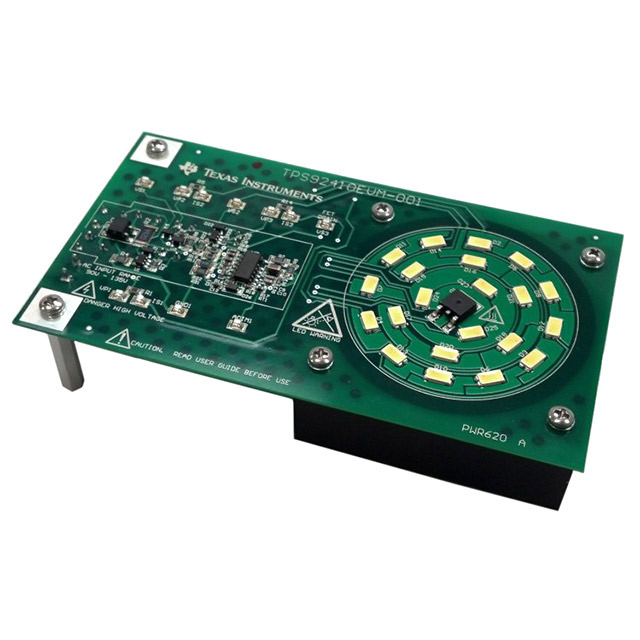

Texas Instruments TPS92410EVM-001	Non-Isolated Non-Isolated Outputs	3	Board(s)	Dimmable	20 V 40 V 80 V	Board(s)	90 VAC	135 VAC	3

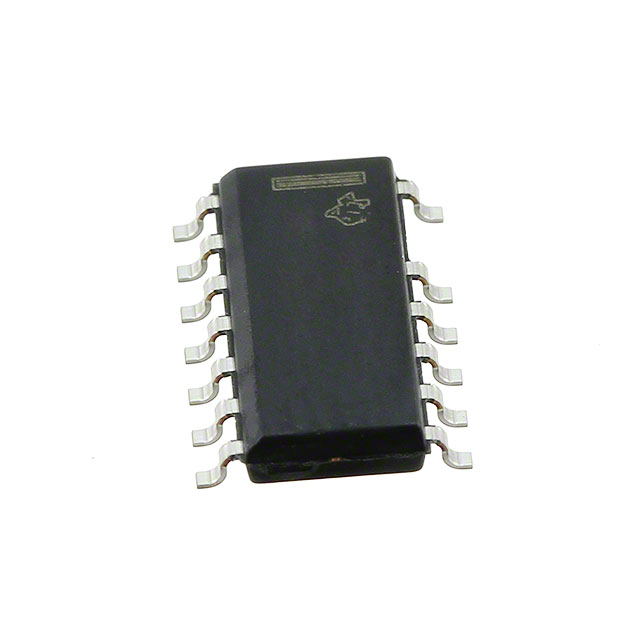

Texas Instruments TPS92410DR										1	Surface Mount	Analog TRIAC	14-SOIC	0.154 in 13 Leads	3.9 mm	AC DC Offline Switcher	450 V	13-SOIC	-40 C	125 °C
Texas Instruments TPS92410D										1	Surface Mount	Analog TRIAC	14-SOIC	0.154 in 13 Leads	3.9 mm	AC DC Offline Switcher	450 V	13-SOIC	-40 C	125 °C

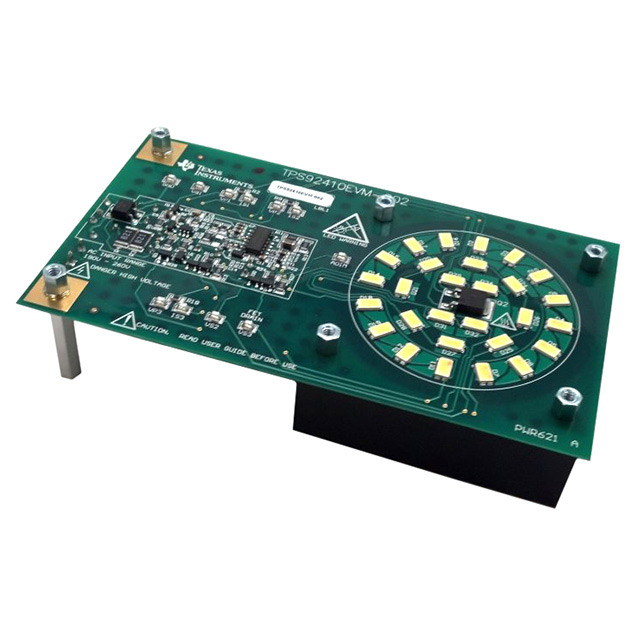

Texas Instruments TPS92410EVM-002	Non-Isolated Non-Isolated Outputs	3	Board(s)	Dimmable	40 V 80 V 160 V	Board(s)	190 VAC	260 VAC	3

Catalog

Switch-controlled, direct drive, linear controller for offline LED drivers

Description

The TPS92410 is an advanced linear driver with high voltage start-up intended for use in low power, offline LED lighting applications. It can be used to regulate the average LED current through LEDs in conjunction with the TPS92411 direct drive switch. The TPS92410 features a reference voltage that can be used to set the current level as well as the thermal foldback threshold. A multiplier is included to obtain excellent power factor while maintaining good line regulation. Other features include under-voltage lockout, over-voltage protection, forward phase dimmer detection with change to constant current mode, thermal foldback, and thermal shutdown. The TPS92410 is an advanced linear driver with high voltage start-up intended for use in low power, offline LED lighting applications. It can be used to regulate the average LED current through LEDs in conjunction with the TPS92411 direct drive switch. The TPS92410 features a reference voltage that can be used to set the current level as well as the thermal foldback threshold. A multiplier is included to obtain excellent power factor while maintaining good line regulation. Other features include under-voltage lockout, over-voltage protection, forward phase dimmer detection with change to constant current mode, thermal foldback, and thermal shutdown.
