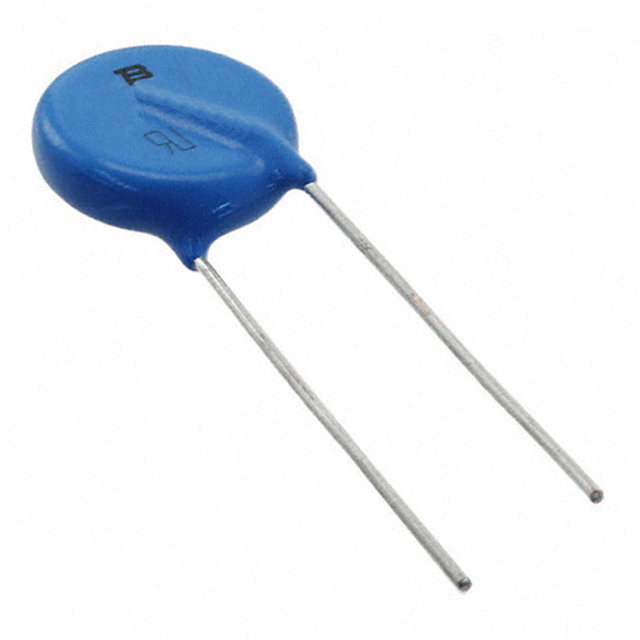

MOV-14 Series

Catalog

VARISTOR 220V 4.5KA DISC 14MM

Part	Number of Circuits	Package / Case	Mounting Type	Varistor Voltage (Min) [Min]	Energy	Maximum AC Volts [Max]	Varistor Voltage (Typ)	Operating Temperature [Max]	Operating Temperature [Min]	Capacitance @ Frequency	Varistor Voltage (Max)	Maximum DC Volts [Max]	Current - Surge	Varistor Voltage (Max) [Max]
Bourns Inc. MOV-14D221KTR	1	Disc 14mm	Through Hole	198 V	60 J	140 V	220 V	85 C	-40 ¯C	900 pF	242 V	180 V	4.5 kA
Bourns Inc. MOV-14D781K	1	Disc 14mm	Through Hole	702 V	148 J	485 V	780 V	85 C	-40 ¯C	260 pF		640 V	4.5 kA	858 V
Bourns Inc. MOV-14D751K	1	Disc 14mm	Through Hole	675 V	143 J	460 V	750 V	85 C	-40 ¯C	270 pF		615 V	4.5 kA	825 V
Bourns Inc. MOV-14D182KTR	1	Disc 14mm	Through Hole	1620 V	337 J	1.1 kV	1800 V	85 C	-40 ¯C	100 pF		1.465 kV	4.5 kA	1.98 kV
Bourns Inc. MOV-14D301K	1	Disc 14mm	Through Hole	270 V	77 J	190 V	300 V	85 C	-40 ¯C	1 kHz 670 pF		250 V	4.5 kA	330 V
Bourns Inc. MOV-14D680K	1	Disc 14mm	Through Hole	61 V	14 J	40 V	68 V	85 C	-40 ¯C		75 V	56 V	1 kA
Bourns Inc. MOV-14D270KTR	1	Disc 14mm	Through Hole	24 V	6 J	17 V	27 V	85 C	-40 ¯C	7400 pF		22 V	1 kA	30 V
Bourns Inc. MOV-14D121K	1	Disc 14mm	Through Hole	108 V	32 J	75 V	120 V	85 C	-40 ¯C	1700 pF		100 V	4.5 kA
Bourns Inc. MOV-14D821K	1	Disc 14mm	Through Hole	738 V	157 J	510 V	820 V	85 C	-40 ¯C	1 kHz 240 pF		670 V	4.5 kA	902 V
Bourns Inc. MOV-14D751KTR	1	Disc 14mm	Through Hole	675 V	143 J	460 V	750 V	85 C	-40 ¯C	270 pF		615 V	4.5 kA	825 V
