807-082 Series

Manufacturer: EDAC Inc.

Catalog

Catalog

CONN EDGE DUAL FMALE 82POS 0.156

...

Part	Termination Rows [custom]	Material - Insulation	Card Thickness [Max]	Card Thickness [Min]	Termination	Contact Finish Thickness	Contact Finish Thickness	Contact Material	Gender	Mounting Type	Number of Positions	Operating Temperature [Max]	Operating Temperature [Min]	Color	Number of Rows [custom]	Number of Positions/Bay/Row	Contact Finish	Read Out	Pitch	Pitch	Card Type	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]	Contact Type	Features
EDAC Inc. 807-082-520-204	2	Diallyl Phthalate (DAP)	0.07 in 1.78 mm	0.054 in 1.37 mm	Solder	0.25 Ám	10 Áin	Copper Alloy	Female	Through Hole	82	125 °C	-40 C	Green	2	41	Gold	Dual	3.96 mm	0.156 in	Non Specified - Dual Edge	Flush Mount Top Opening Unthreaded	0.156 "	3.96 mm	Semi Bellows
EDAC Inc. 807-082-455-207	2	Diallyl Phthalate (DAP)	0.07 in 1.78 mm	0.054 in 1.37 mm	Solder			Copper Alloy	Female	Board Edge Straddle Mount	82	125 °C	-40 C	Green	2	41	Tin	Dual	3.96 mm	0.156 in	Non Specified - Dual Edge	Flush Mount M3 Threaded Insert Top Opening			Semi Bellows	Card Extender
EDAC Inc. 807-082-455-212	2	Diallyl Phthalate (DAP)	0.07 in 1.78 mm	0.054 in 1.37 mm	Solder			Copper Alloy	Female	Board Edge Straddle Mount	82	125 °C	-40 C	Green	2	41	Tin	Dual	3.96 mm	0.156 in	Non Specified - Dual Edge	Side Mount Opening Unthreaded	0.128 "	3.25 mm	Semi Bellows	Card Extender
EDAC Inc. 807-082-420-204	2	Diallyl Phthalate (DAP)	0.07 in 1.78 mm	0.054 in 1.37 mm	Solder			Copper Alloy	Female	Through Hole	82	125 °C	-40 C	Green	2	41	Tin	Dual	3.96 mm	0.156 in	Non Specified - Dual Edge	Flush Mount Top Opening Unthreaded	0.156 "	3.96 mm	Semi Bellows
EDAC Inc. 807-082-555-203	2	Diallyl Phthalate (DAP)	0.07 in 1.78 mm	0.054 in 1.37 mm	Solder	0.25 Ám	10 Áin	Copper Alloy	Female	Board Edge Straddle Mount	82	125 °C	-40 C	Green	2	41	Gold	Dual	3.96 mm	0.156 in	Non Specified - Dual Edge	Floating Bobbin Flush Mount	0.116 "	2.95 mm	Semi Bellows	Card Extender
EDAC Inc. 807-082-424-203	2	Diallyl Phthalate (DAP)	0.07 in 1.78 mm	0.054 in 1.37 mm	Solder			Copper Alloy	Female	Through Hole	82	125 °C	-40 C	Green	2	41	Tin	Dual	3.96 mm	0.156 in	Non Specified - Dual Edge	Floating Bobbin Flush Mount	0.116 "	2.95 mm	Semi Bellows

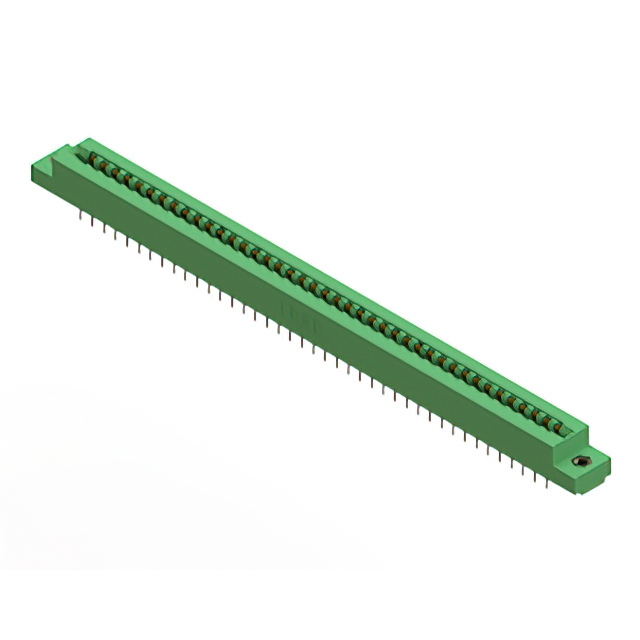

EDAC Inc. 807-082-524-207	2	Diallyl Phthalate (DAP)	0.07 in 1.78 mm	0.054 in 1.37 mm	Solder	0.25 Ám	10 Áin	Copper Alloy	Female	Through Hole	82	125 °C	-40 C	Green	2	41	Gold	Dual	3.96 mm	0.156 in	Non Specified - Dual Edge	Flush Mount M3 Threaded Insert Top Opening			Semi Bellows
EDAC Inc. 807-082-560-208	2	Diallyl Phthalate (DAP)	0.07 in 1.78 mm	0.054 in 1.37 mm	Solder	0.25 Ám	10 Áin	Copper Alloy	Female	Board Edge Straddle Mount	82	125 °C	-40 C	Green	2	41	Gold	Dual	3.96 mm	0.156 in	Non Specified - Dual Edge	4-40 Flush Mount Threaded Insert Top Opening			Semi Bellows	Card Extender
EDAC Inc. 807-082-522-204	2	Diallyl Phthalate (DAP)	0.07 in 1.78 mm	0.054 in 1.37 mm	Solder	0.25 Ám	10 Áin	Copper Alloy	Female	Through Hole	82	125 °C	-40 C	Green	2	41	Gold	Dual	3.96 mm	0.156 in	Non Specified - Dual Edge	Flush Mount Top Opening Unthreaded	0.156 "	3.96 mm	Semi Bellows

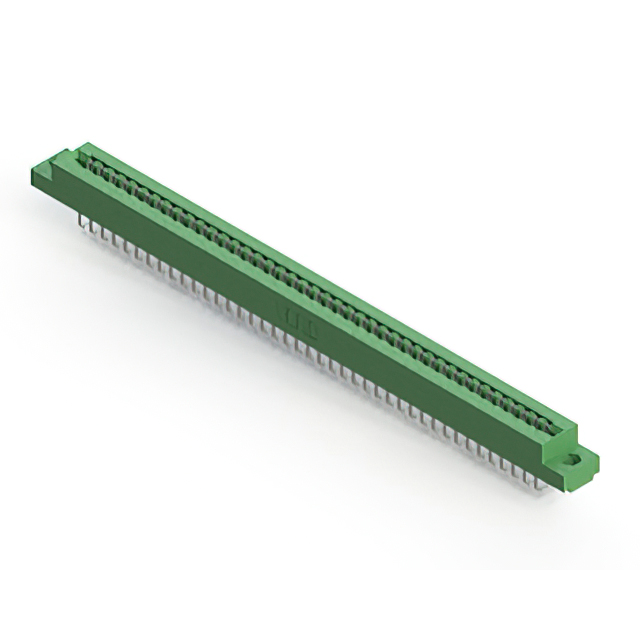

EDAC Inc. 807-082-458-204	2	Diallyl Phthalate (DAP)	0.07 in 1.78 mm	0.054 in 1.37 mm	Solder			Copper Alloy	Female	Right Angle Through Hole	82	125 °C	-40 C	Green	2	41	Tin	Single	3.96 mm	0.156 in	Non Specified - Dual Edge	Flush Mount Top Opening Unthreaded	0.156 "	3.96 mm	Semi Bellows
