PE0815F Series
Manufacturer: YAGEO
Beta
⌘K

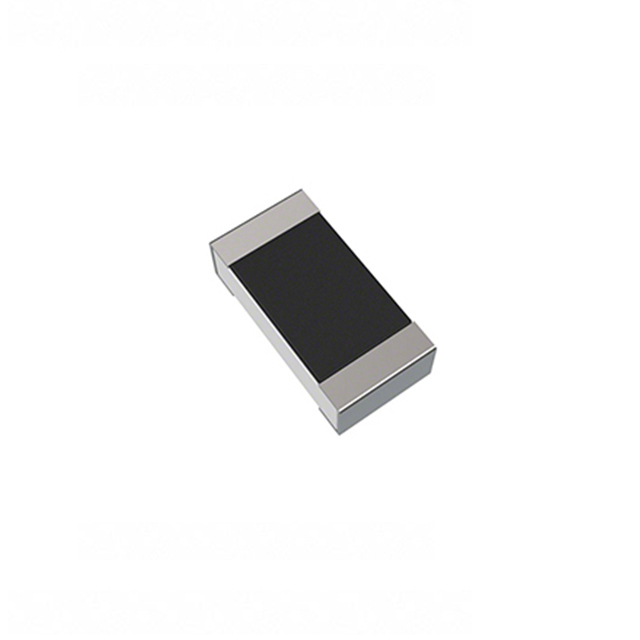

RES 0.02 OHM 1% 1/2W 1508 WIDE
| Part | Power (Watts) | Power (Watts) | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Tolerance | Features | Supplier Device Package | Operating Temperature [Max] | Operating Temperature [Min] | Temperature Coefficient | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Resistance | Number of Terminations [custom] | Package / Case | Composition | Ratings |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 YAGEO | 0.5 W | 0.5 W | 0.03 " | 0.75 mm | 1 % | Automotive AEC-Q200 Current Sense | 0815 | 155 C | -55 C | 100 ppm/°C | 2 mm | 3.7 mm | 0.079 in | 0.146 in | 0.02 Ohms | 2 | 0815 Wide 1508 (3720 Metric) | Metal Element | AEC-Q200 |
YAGEO | 1 W | 0.03 " | 0.75 mm | 1 % | Automotive AEC-Q200 Current Sense | 0815 | 155 C | -55 C | 100 ppm/°C | 2 mm | 3.7 mm | 0.079 in | 0.146 in | 8 mOhms | 2 | 0815 Wide 1508 (3720 Metric) | Metal Element | AEC-Q200 | |
YAGEO | 0.5 W | 0.5 W | 0.03 " | 0.75 mm | 1 % | Automotive AEC-Q200 Current Sense | 0815 | 155 C | -55 C | 100 ppm/°C | 2 mm | 3.7 mm | 0.079 in | 0.146 in | 10 mOhms | 2 | 0815 Wide 1508 (3720 Metric) | Metal Element | AEC-Q200 |
YAGEO | 0.5 W | 0.5 W | 0.03 " | 0.75 mm | 1 % | Automotive AEC-Q200 Current Sense | 0815 | 155 C | -55 C | 100 ppm/°C | 2 mm | 3.7 mm | 0.079 in | 0.146 in | 15 mOhms | 2 | 0815 Wide 1508 (3720 Metric) | Metal Element | AEC-Q200 |
