M50-430 Series

Catalog

CONN RCPT 20POS 0.05 GOLD SMD

Part	Contact Material	Applications	Insulation Material	Contact Shape	Number of Positions	Contact Finish - Mating	Features	Insulation Color	Contact Type	Fastening Type	Termination	Pitch - Mating	Pitch - Mating	Connector Type	Material Flammability Rating	Row Spacing - Mating	Row Spacing - Mating	Mated Stacking Heights	Mounting Type	Insulation Height [z]	Insulation Height [z]	Contact Finish - Post	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions Loaded	Number of Rows [custom]
Harwin Inc. M50-4301045	Phosphor Bronze	General Purpose Medical Telecommunications	Liquid Crystal Polymer (LCP)	Square	20	Gold	Board Guide	Black	Female Socket	Push-Pull	Solder	1.27 mm	0.05 in	Receptacle	UL94 V-0	0.05 in	1.27 mm	6 mm 6.5 mm	Surface Mount	0.181 in	4.6 mm	Gold	-40 C	105 ░C	All	2

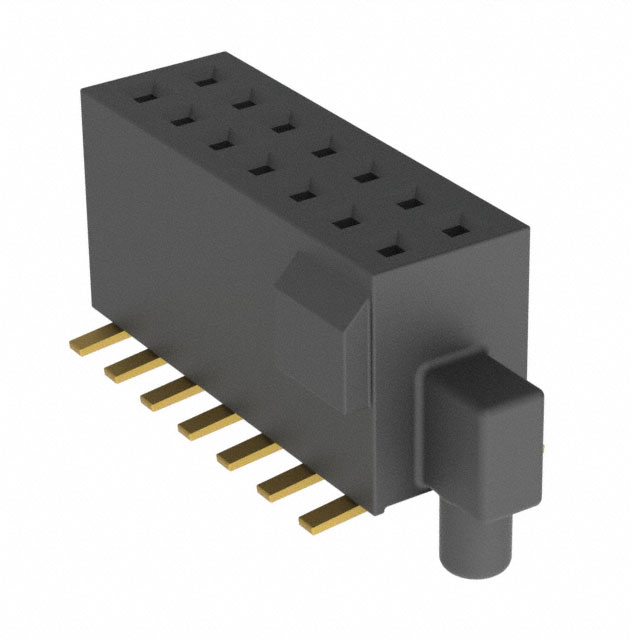

Harwin Inc. M50-4300745	Phosphor Bronze	General Purpose Medical Telecommunications	Liquid Crystal Polymer (LCP)	Square	14	Gold	Board Guide	Black	Female Socket	Push-Pull	Solder	1.27 mm	0.05 in	Receptacle	UL94 V-0	0.05 in	1.27 mm	6 mm 6.5 mm	Surface Mount	0.181 in	4.6 mm	Gold	-40 C	105 ░C	All	2

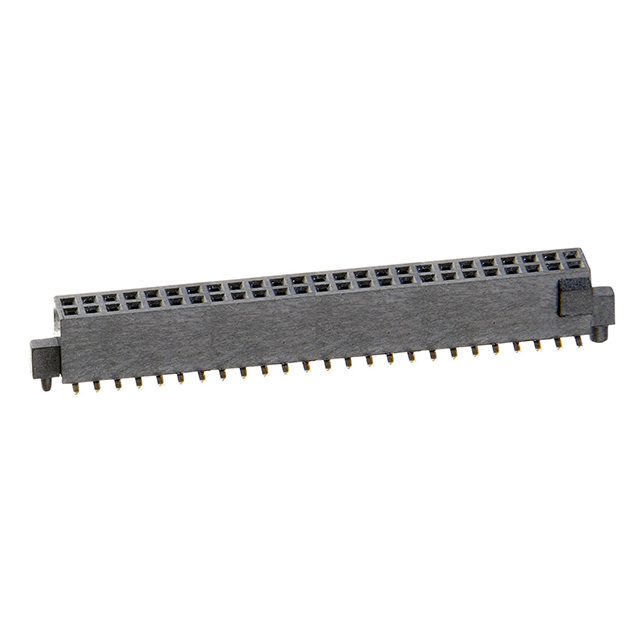

Harwin Inc. M50-4302545	Phosphor Bronze	General Purpose Medical Telecommunications	Liquid Crystal Polymer (LCP)	Square	50	Gold	Board Guide	Black	Female Socket	Push-Pull	Solder	1.27 mm	0.05 in	Receptacle	UL94 V-0	0.05 in	1.27 mm	6 mm 6.5 mm	Surface Mount	0.181 in	4.6 mm	Gold	-40 C	105 ░C	All	2

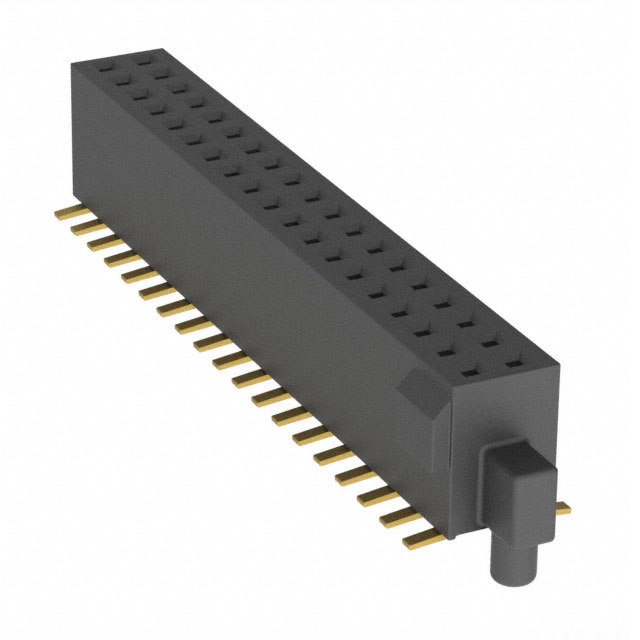

Harwin Inc. M50-4301945	Phosphor Bronze	General Purpose Medical Telecommunications	Liquid Crystal Polymer (LCP)	Square	38	Gold	Board Guide	Black	Female Socket	Push-Pull	Solder	1.27 mm	0.05 in	Receptacle	UL94 V-0	0.05 in	1.27 mm	6 mm 6.5 mm	Surface Mount	0.181 in	4.6 mm	Gold	-40 C	105 ░C	All	2

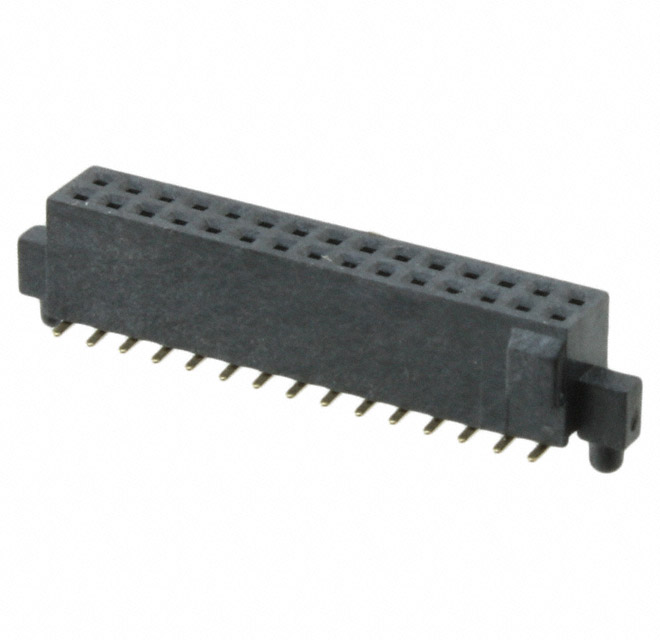

Harwin Inc. M50-4301545	Phosphor Bronze	General Purpose Medical Telecommunications	Liquid Crystal Polymer (LCP)	Square	30	Gold	Board Guide	Black	Female Socket	Push-Pull	Solder	1.27 mm	0.05 in	Receptacle	UL94 V-0	0.05 in	1.27 mm	6 mm 6.5 mm	Surface Mount	0.181 in	4.6 mm	Gold	-40 C	105 ░C	All	2
