9353-0 Series

Catalog

CONN RECEPT PIN .037-.043" .147"

Part	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Tail Type	Contact Finish Thickness	Contact Finish Thickness	Socket Depth	Socket Depth	Contact Material	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Min]	Flange Diameter [diameter]	Flange Diameter [diameter]	Contact Finish	Pin Hole Diameter [diameter]	Pin Hole Diameter [diameter]	Length - Overall [x]	Length - Overall [x]	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]

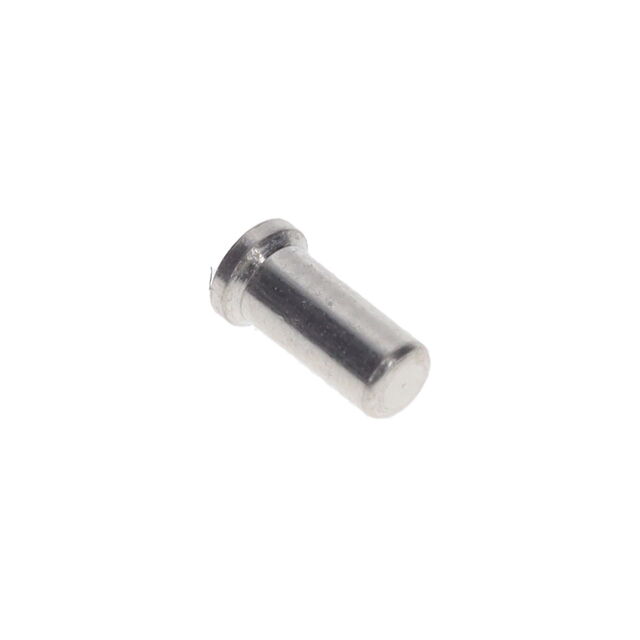

Mill-Max Manufacturing Corp. 9353-0-15-01-18-01-10-0	-55 C	125 °C	Solder	No Tail	200 Áin	5.08 Ám	0.147 in	3.73 mm	Beryllium Copper	0.043 in	1.09 mm	0.94 mm	0.037 in	0.09 in	2.29 mm	Tin-Lead	1.37 mm	0.054 in	0.17 in	4.32 mm	1.8 mm	0.071 in

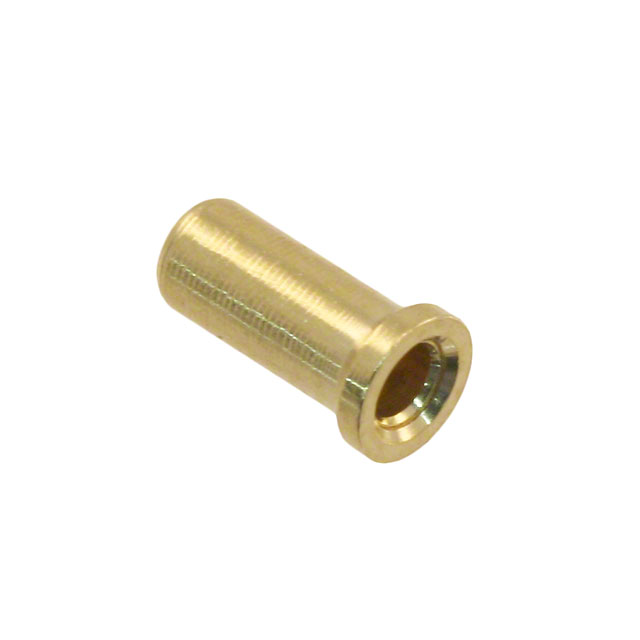

Mill-Max Manufacturing Corp. 9353-0-15-15-18-27-10-0	-55 C	125 °C	Solder	No Tail	30 Áin	0.76 Ám	0.147 in	3.73 mm	Beryllium Copper	0.043 in	1.09 mm	0.94 mm	0.037 in	0.09 in	2.29 mm	Gold	1.37 mm	0.054 in	0.17 in	4.32 mm	1.8 mm	0.071 in

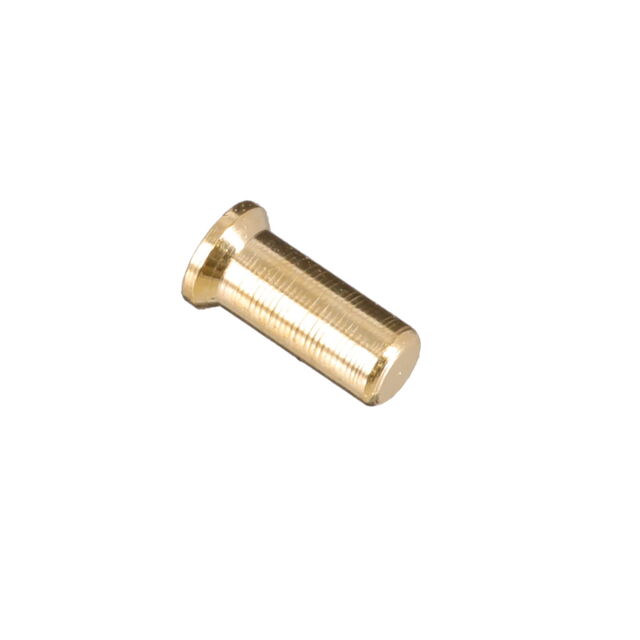

Mill-Max Manufacturing Corp. 9353-0-15-15-18-14-10-0	-55 C	125 °C	Solder	No Tail	10 Áin	0.25 Ám	0.147 in	3.73 mm	Beryllium Copper	0.043 in	1.09 mm	0.94 mm	0.037 in	0.09 in	2.29 mm	Gold	1.37 mm	0.054 in	0.17 in	4.32 mm	1.8 mm	0.071 in
