ATS-HP-D Series
Manufacturer: Advanced Thermal Solutions Inc.
Beta
⌘K

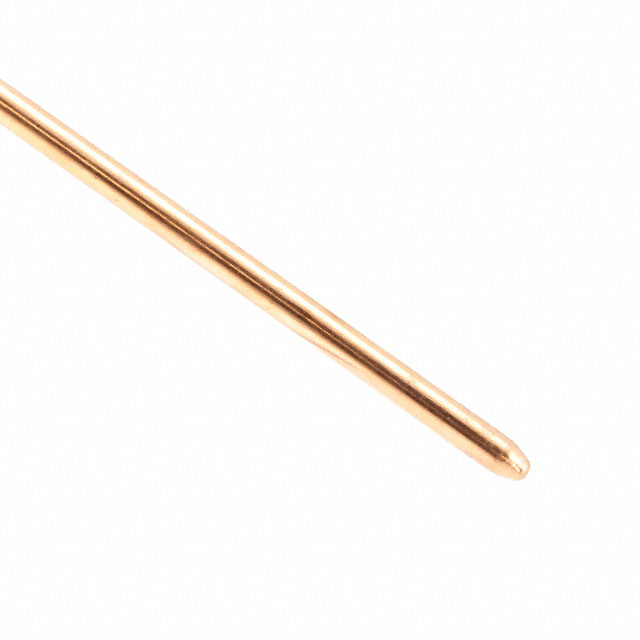

LIQUID COLD PLATES, LIQUID COOLING & HEAT PIPES HEAT PIPE, COPPER, HIGH PERFORMANCE, ROUND, 450MM, 8MM DIA.
| Part | Working Fluid | Power - Cooling | Material | Type | Shape | Wick Type | Attachment Method | Length | Length | Diameter [diameter] | Diameter [diameter] | Operating Temperature [Min] | Operating Temperature [Max] | For Use With/Related Products | Tool Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Advanced Thermal Solutions Inc. | Distilled Water | 43.3 W | Copper | Heat Pipe | Round | Sintered | Epoxy or Solder | 450 mm | 17.717 in | 0.315 in | 8 mm | 30 °C | 120 °C | ||
 Advanced Thermal Solutions Inc. | Heat Pipes | Pipe Bending Tool | |||||||||||||
 Advanced Thermal Solutions Inc. | Distilled Water | 81.1 W | Copper | Heat Pipe | Round | Sintered | Epoxy or Solder | 200 mm | 7.874 in | 0.276 in | 7 mm | 30 °C | 120 °C | ||
Advanced Thermal Solutions Inc. | Distilled Water | Copper | Heat Pipe | Round | Sintered | Epoxy or Solder | 200 mm | 7.874 in | 0.236 in | 6 mm | 30 °C | 120 °C | |||
Advanced Thermal Solutions Inc. | Distilled Water | 100 mm 101.2 W | Copper | Heat Pipe | Round | Sintered | Epoxy or Solder | 100 mm | 3.937 in | 0.197 in | 5 mm | 30 °C | 120 °C | ||
Advanced Thermal Solutions Inc. | Distilled Water | 89.7 W 150 mm | Copper | Heat Pipe | Round | Sintered | Epoxy or Solder | 150 mm | 5.906 in | 0.236 in | 6 mm | 30 °C | 120 °C | ||
 Advanced Thermal Solutions Inc. | Distilled Water | 62.3 W 350 mm | Copper | Heat Pipe | Round | Sintered | Epoxy or Solder | 350 mm | 13.78 in | 0.374 in | 9.5 mm | 30 °C | 120 °C | ||
Advanced Thermal Solutions Inc. | 99.8 W 250 mm | Copper | Heat Pipe | Round | Sintered | Epoxy or Solder | 250 mm | 9.843 in | 0.394 in | 10 mm | 30 °C | 120 °C | |||
Advanced Thermal Solutions Inc. | Distilled Water | 55.7 W | Copper | Heat Pipe | Round | Sintered | Epoxy or Solder | 350 mm | 13.78 in | 0.315 in | 8 mm | 30 °C | 120 °C | ||
Advanced Thermal Solutions Inc. | Distilled Water | 54.5 W | Copper | Heat Pipe | Round | Sintered | Epoxy or Solder | 400 mm | 15.748 in | 0.374 in | 9.5 mm | 30 °C | 120 °C |
