842-114 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FML 114POS 0.100

Part	Termination Rows [custom]	Material - Insulation	Read Out	Pitch	Pitch	Contact Finish Thickness	Contact Finish Thickness	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions	Card Type	Termination	Contact Material	Gender	Number of Positions/Bay/Row [custom]	Contact Type	Mounting Type	Contact Finish	Number of Rows [custom]	Color	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]	Card Thickness [Max]	Card Thickness [Min]	Features
EDAC Inc. 842-114-541-212	2	Diallyl Phthalate (DAP)	Dual	0.1 "	2.54 mm	0.25 Ám	10 Áin	125 °C	-40 C	114	Non Specified - Dual Edge	Wire Wrap	Copper Alloy	Female	57	Cantilever	Through Hole	Gold	2	Green	Flush Mount Side Opening Unthreaded	0.128 "	3.25 mm	0.07 in 1.78 mm	0.054 in 1.37 mm

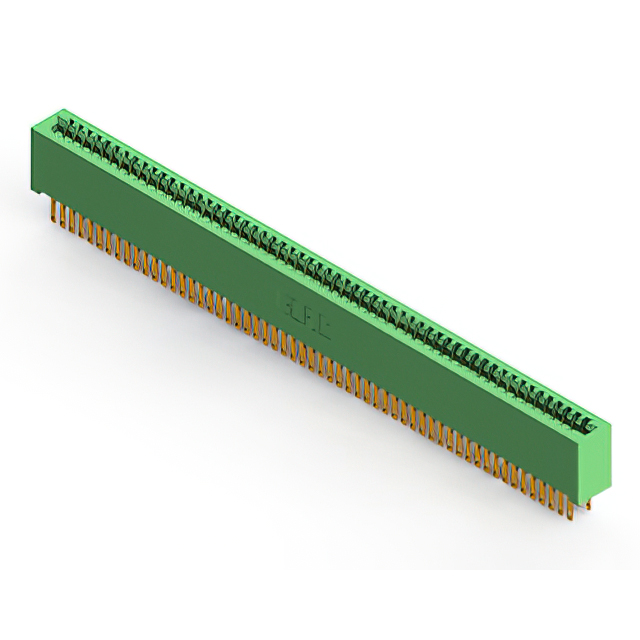

EDAC Inc. 842-114-500-201	2	Diallyl Phthalate (DAP)	Dual	0.1 "	2.54 mm	0.25 Ám	10 Áin	125 °C	-40 C	114	Non Specified - Dual Edge	Solder Eyelet(s)	Copper Alloy	Female	57	Cantilever	Through Hole	Gold	2	Green				0.07 in 1.78 mm	0.054 in 1.37 mm

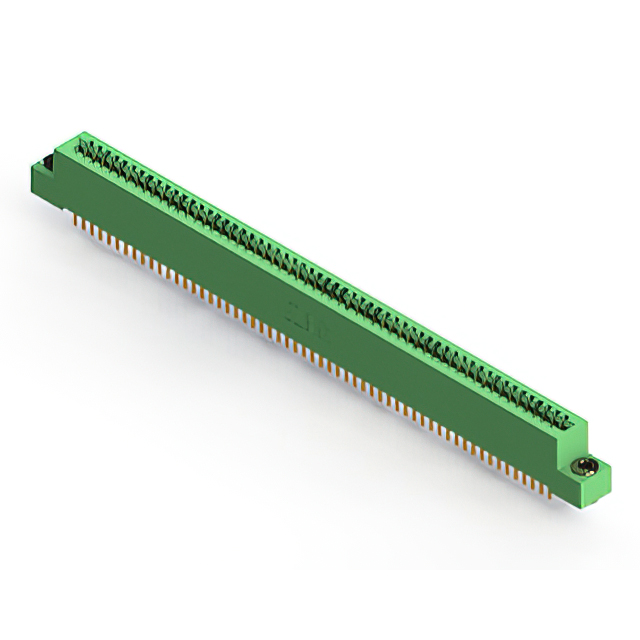

EDAC Inc. 842-114-521-203	2	Diallyl Phthalate (DAP)	Dual	0.1 "	2.54 mm	0.25 Ám	10 Áin	125 °C	-40 C	114	Non Specified - Dual Edge	Solder	Copper Alloy	Female	57	Cantilever	Through Hole	Gold	2	Green	Floating Bobbin Flush Mount	0.116 "	2.95 mm	0.07 in 1.78 mm	0.054 in 1.37 mm
EDAC Inc. 842-114-559-208	2	Diallyl Phthalate (DAP)	Dual	0.1 "	2.54 mm	0.25 Ám	10 Áin	125 °C	-40 C	114	Non Specified - Dual Edge	Solder	Copper Alloy	Female	57	Cantilever	Right Angle Through Hole	Gold	2	Green	4-40 Flush Mount Threaded Insert Top Opening			0.07 in 1.78 mm	0.054 in 1.37 mm
EDAC Inc. 842-114-558-201	2	Diallyl Phthalate (DAP)	Dual	0.1 "	2.54 mm	0.25 Ám	10 Áin	125 °C	-40 C	114	Non Specified - Dual Edge	Solder	Copper Alloy	Female	57	Cantilever	Right Angle Through Hole	Gold	2	Green				0.07 in 1.78 mm	0.054 in 1.37 mm

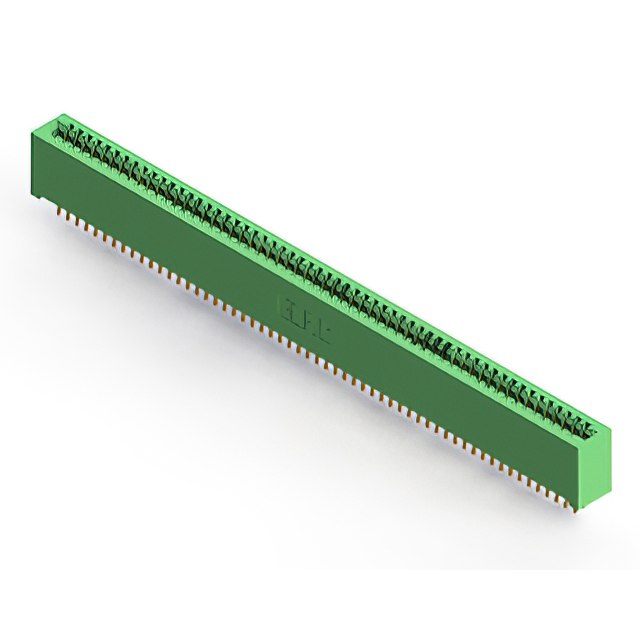

EDAC Inc. 842-114-556-201	2	Diallyl Phthalate (DAP)	Dual	0.1 "	2.54 mm	0.25 Ám	10 Áin	125 °C	-40 C	114	Non Specified - Dual Edge	Solder	Copper Alloy	Female	57	Cantilever	Board Edge Straddle Mount	Gold	2	Green				0.07 in 1.78 mm	0.054 in 1.37 mm	Card Extender
EDAC Inc. 842-114-523-207	2	Diallyl Phthalate (DAP)	Dual	0.1 "	2.54 mm	0.25 Ám	10 Áin	125 °C	-40 C	114	Non Specified - Dual Edge	Solder	Copper Alloy	Female	57	Cantilever	Through Hole	Gold	2	Green	Flush Mount M3 Threaded Insert Top Opening			0.07 in 1.78 mm	0.054 in 1.37 mm
EDAC Inc. 842-114-540-204	2	Diallyl Phthalate (DAP)	Dual	0.1 "	2.54 mm	0.25 Ám	10 Áin	125 °C	-40 C	114	Non Specified - Dual Edge	Wire Wrap	Copper Alloy	Female	57	Cantilever	Through Hole	Gold	2	Green	Flush Mount Top Opening Unthreaded	0.156 "	3.96 mm	0.07 in 1.78 mm	0.054 in 1.37 mm
EDAC Inc. 842-114-558-204	2	Diallyl Phthalate (DAP)	Dual	0.1 "	2.54 mm	0.25 Ám	10 Áin	125 °C	-40 C	114	Non Specified - Dual Edge	Solder	Copper Alloy	Female	57	Cantilever	Right Angle Through Hole	Gold	2	Green	Flush Mount Top Opening Unthreaded	0.156 "	3.96 mm	0.07 in 1.78 mm	0.054 in 1.37 mm

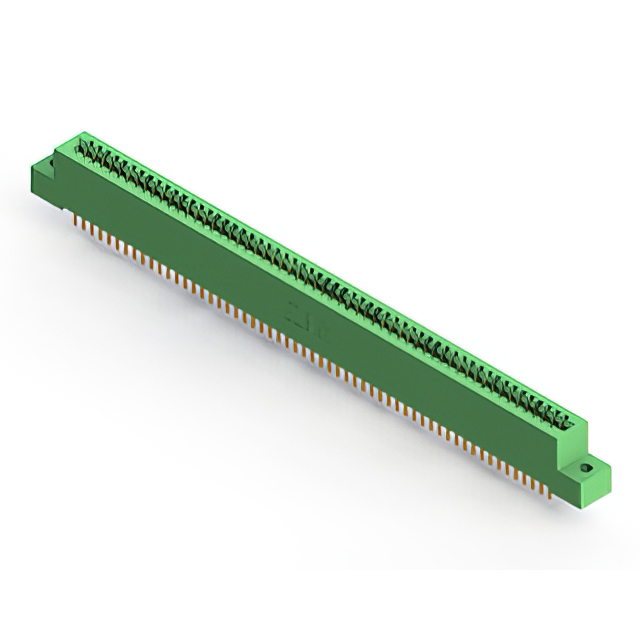

EDAC Inc. 842-114-521-202	2	Diallyl Phthalate (DAP)	Dual	0.1 "	2.54 mm	0.25 Ám	10 Áin	125 °C	-40 C	114	Non Specified - Dual Edge	Solder	Copper Alloy	Female	57	Cantilever	Through Hole	Gold	2	Green	Flush Mount Top Opening Unthreaded	0.128 "	3.25 mm	0.07 in 1.78 mm	0.054 in 1.37 mm
