LBW6B Series

Manufacturer: IDEC

Catalog

INDUSTRIAL PUSHBUTTON SWITCH, LBW SERIES, 22 MM, 3PDT, MAINTAINED, ROUND FLUSH, WHITE

Part	Mechanical Life	Electrical Life	Voltage Rating - AC	Switch Function	Panel Cutout Dimensions [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Actuator Marking	Voltage Rating - DC	Circuit	Mounting Type	Actuator Type	Termination Style	Type	Ingress Protection	Color - Actuator/Cap
IDEC LBW6B-A1T3VW	250000 Cycles	50000 Cycles	125 V	On-On	22.3 mm	-25 °C	60 °C	100 mA	No Marking	30 V	3PDT	Panel Mount Front	Button Flush Round	PC Pin	Standard	IP65 - Dust Tight Water Resistant	White
IDEC LBW6B-A1T3B	250000 Cycles	50000 Cycles	125 V	On-On	22.3 mm	-25 °C	60 °C	100 mA	No Marking	30 V	3PDT	Panel Mount Front	Button Flush Round	Solder Quick Connect - 0.110" (2.8mm)	Standard	IP65 - Dust Tight Water Resistant	Black
IDEC LBW6B-M1T5G	2000000 Cycles	50000 Cycles	125 V	On-Mom	22.3 mm	-25 °C	60 °C	5 A	No Marking	30 V	SPDT	Panel Mount Front	Button Flush Round	Solder Quick Connect - 0.110" (2.8mm)	Standard	IP65 - Dust Tight Water Resistant	Green
IDEC LBW6B-A1T2S	250000 Cycles	50000 Cycles	125 V	On-On	22.3 mm	-25 °C	60 °C	100 mA	No Marking	30 V	DPDT	Panel Mount Front	Button Flush Round	Solder Quick Connect - 0.110" (2.8mm)	Standard	IP65 - Dust Tight Water Resistant	Blue
IDEC LBW6B-M1T1LB	2000000 Cycles	50000 Cycles	125 V	On-Mom	22.3 mm	-25 °C	60 °C	100 mA	No Marking	30 V	SPDT	Panel Mount Front	Button Flush Round	Solder Quick Connect - 0.110" (2.8mm)	Standard	IP65 - Dust Tight Water Resistant	Black
IDEC LBW6B-M1T1Y	2000000 Cycles	50000 Cycles	125 V	On-Mom	22.3 mm	-25 °C	60 °C	100 mA	No Marking	30 V	SPDT	Panel Mount Front	Button Flush Round	Solder Quick Connect - 0.110" (2.8mm)	Standard	IP65 - Dust Tight Water Resistant	Yellow
IDEC LBW6B-M1T3G	2000000 Cycles	50000 Cycles	125 V	On-Mom	22.3 mm	-25 °C	60 °C	100 mA	No Marking	30 V	3PDT	Panel Mount Front	Button Flush Round	Solder Quick Connect - 0.110" (2.8mm)	Standard	IP65 - Dust Tight Water Resistant	Green

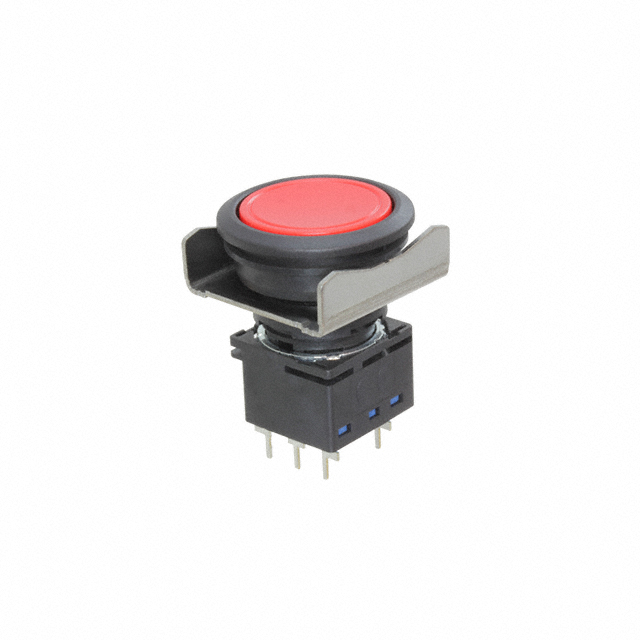

IDEC LBW6B-M1T2VR	2000000 Cycles	50000 Cycles	125 V	On-Mom	22.3 mm	-25 °C	60 °C	100 mA	No Marking	30 V	DPDT	Panel Mount Front	Button Flush Round	PC Pin	Standard	IP65 - Dust Tight Water Resistant	Red
IDEC LBW6B-A1T2Y	250000 Cycles	50000 Cycles	125 V	On-On	22.3 mm	-25 °C	60 °C	100 mA	No Marking	30 V	DPDT	Panel Mount Front	Button Flush Round	Solder Quick Connect - 0.110" (2.8mm)	Standard	IP65 - Dust Tight Water Resistant	Yellow
IDEC LBW6B-M1T2VB	2000000 Cycles	50000 Cycles	125 V	On-Mom	22.3 mm	-25 °C	60 °C	100 mA	No Marking	30 V	DPDT	Panel Mount Front	Button Flush Round	PC Pin	Standard	IP65 - Dust Tight Water Resistant	Black
