MX34020U Series
Manufacturer: JAE Electronics
Beta
⌘K

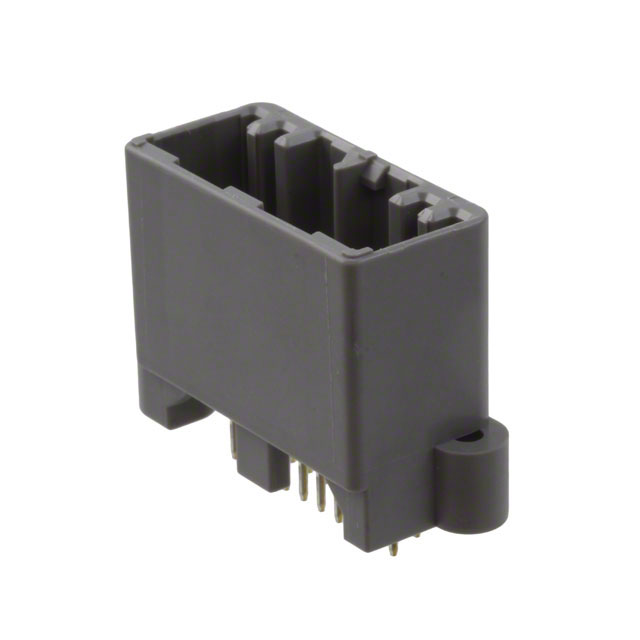

CONN HEADER VERT 20POS 2.2MM
| Part | Applications | Operating Temperature [Min] | Operating Temperature [Max] | Mated Stacking Heights | Insulation Color | Style | Shrouding | Termination | Features | Contact Material | Number of Positions | Connector Type | Contact Finish - Post | Contact Type | Insulation Height [z] | Insulation Height [z] | Contact Shape | Mounting Type | Contact Length - Post [x] | Contact Length - Post [x] | Contact Length - Mating | Contact Length - Mating | Insulation Material | Row Spacing - Mating | Row Spacing - Mating | Fastening Type | Pitch - Mating | Pitch - Mating | Number of Positions Loaded | Number of Rows [custom] | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JAE Electronics | Automotive | -40 C | 85 °C | 29.95 mm | Gray | Board to Cable/Wire | Shrouded - 4 Wall | Solder | Mounting Flange | Brass | 20 | Header | Tin | Male Pin | 0.925 in | 23.5 mm | Square | Through Hole | 0.126 " | 3.2 mm | 0.303 in | 7.7 mm | Glass Filled Syndiotactic Polystyrene (SPS) | 0.118 in | 3 mm | Locking Ramp | 0.087 in | 2.2 mm | All | 2 | 3 A |
