LM2703 Series
Manufacturer: Texas Instruments
Beta
⌘K
MICROPOWER STEP-UP DC/DC CONVERTER WITH 350MA PEAK CURRENT LIMIT
| Part | Voltage - Supply (Min) [Min] | Voltage - Supply (Max) [Max] | Internal Switch(s) | Topology | Supplier Device Package | Current - Output / Channel | Type | Voltage - Output | Package / Case | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Number of Outputs | Applications | Supplied Contents | Board Type | Main Purpose | Regulator Topology | Voltage - Input [Max] | Voltage - Input [Min] | Utilized IC / Part | Outputs and Type | Outputs and Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Texas Instruments | 2.2 V | 7 V | Step-Up (Boost) | SOT-23-5 | 350 mA | DC DC Regulator | 21 V | SC-74A SOT-753 | Surface Mount | -40 °C | 125 ¯C | 1 | Backlight | ||||||||||
 Texas Instruments | 2.2 V | 7 V | Step-Up (Boost) | SOT-23-5 | 350 mA | DC DC Regulator | 21 V | SC-74A SOT-753 | Surface Mount | -40 °C | 125 ¯C | 1 | Backlight | ||||||||||
Texas Instruments | 2.2 V | 7 V | Step-Up (Boost) | SOT-23-5 | 350 mA | DC DC Regulator | 21 V | SC-74A SOT-753 | Surface Mount | -40 °C | 125 ¯C | 1 | Backlight | ||||||||||

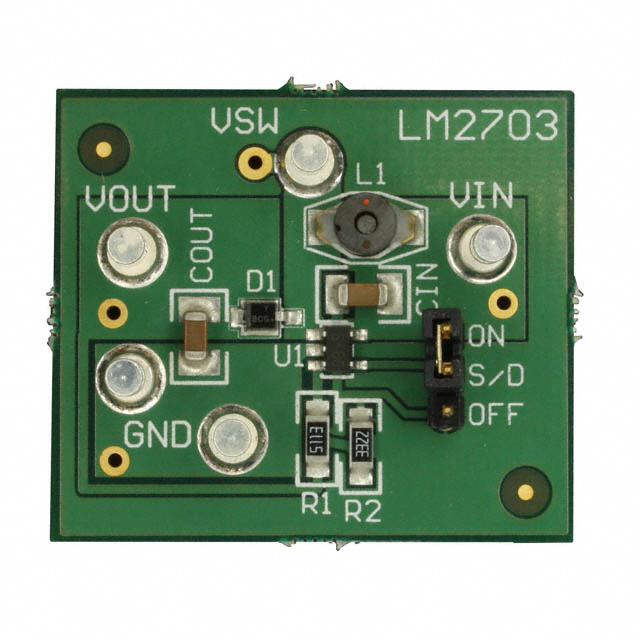

 Texas Instruments | Board(s) | Fully Populated | DC/DC Step Up | Boost | 7 V | 2.2 V | LM2703 | Non-Isolated | 1 | ||||||||||||||
Texas Instruments | 2.2 V | 7 V | Step-Up (Boost) | SOT-23-5 | 350 mA | DC DC Regulator | 21 V | SC-74A SOT-753 | Surface Mount | -40 °C | 125 ¯C | 1 | Backlight |
