S21AW Series
Manufacturer: NKK Switches
Beta
⌘K
TOGGLE SWITCH, IP68, ON-NONE-OFF, DPST, NON ILLUMINATED, S SERIES, 15 A, PANEL MOUNT
| Part | Electrical Life | Voltage Rating - AC | Circuit | Features | Panel Cutout Dimensions [diameter] | Actuator Length [x] | Bushing Thread | Switch Function | Actuator Type | Mounting Type | Voltage Rating - DC | Illumination | Termination Style | Operating Temperature [Min] | Operating Temperature [Max] | Ingress Protection | Current Rating (Amps) | Actuator Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NKK Switches | 25000 Steps | 125 V | DPST | Waterproof Boot | 12.5 mm | 17.5 mm | M12 x 1 | On-Off | Standard Round | Panel Mount | 30 V | Non-Illuminated | Solder Lug | -30 ░C | 70 °C | IP68 - Dust Tight Waterproof | 15 A | |

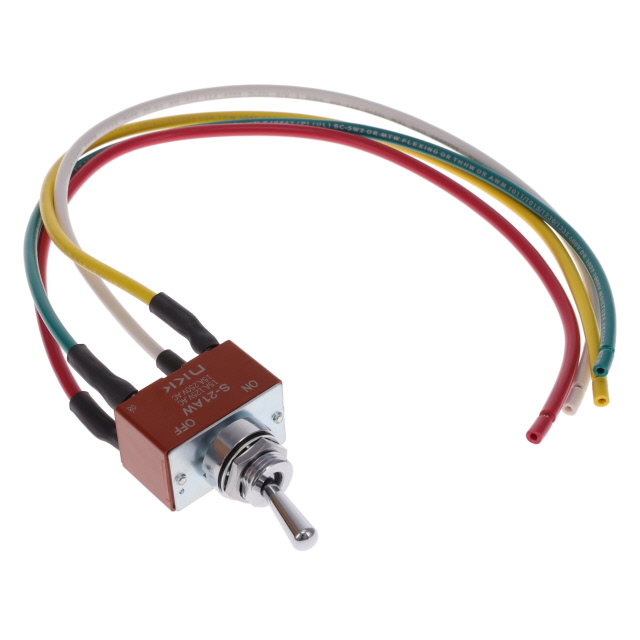

 NKK Switches | 25000 Steps | 125 V | DPST | 12.5 mm | 17.5 mm | M12 x 1 | On-Off | Standard Round | Panel Mount | 30 V | Non-Illuminated | Wire Leads | -30 ░C | 70 °C | IP67 - Dust Tight Waterproof | 15 A | Brass Chrome Plated | |
 NKK Switches | 25000 Steps | 125 V | DPST | 12.5 mm | 17.5 mm | M12 x 1 | On-Off | Standard Round | Panel Mount | 30 V | Non-Illuminated | Quick Connect - 0.250" (6.3mm) | -30 ░C | 70 °C | IP67 - Dust Tight Waterproof | 15 A 20 A | Brass Chrome Plated |
