18 Series

Manufacturer: EAO

Catalog

SWITCH HARDWARE LENS YELLOW WITH SINGLE-LED WHITE 3,0VDC/20MA X/Y=0.41 D7,3 PLASTIC TRANSLUCENT

Part	Mounting Type	Switch Type	Shape	Illumination	Color	For Use With/Related Products	Size [x]	Size [y]	Mechanical Life	Electrical Life	Circuit	Switch Function	Voltage Rating - DC	Voltage Rating - AC	Type	Ingress Protection	Actuator Type	Current Rating (Amps)	Termination Style	Operating Temperature [Min]	Operating Temperature [Max]	Actuator Marking	Panel Cutout Dimensions [diameter]	Lens Transparency	Panel Cutout Shape	Current	Voltage	Lens Color	Panel Cutout Dimensions [custom]	Panel Cutout Dimensions [custom]	Ratings	Lens Style
EAO 18-931.4L	Snap Fit	Pushbutton	Round	Illuminated	Yellow	18 Series
EAO 18-942.2	Snap Fit	Pushbutton	Rectangular	Illuminated	Red	18 Series	7.5 mm	12.5 mm

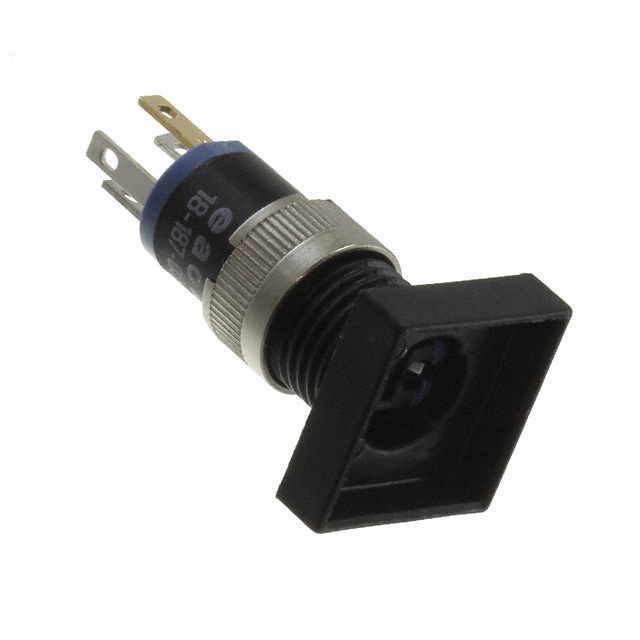

EAO 18-187.035	Panel Mount Front								2000000 Cycles	50000 Cycles	SPST-NO	Off-Mom	42 V	42 V	Standard	IP40	Button Square	100 mA	Solder Lug	-25 °C	65 °C	No Marking
EAO 18-287.035	Panel Mount Front										SPST-NO	Off-On	42 V	42 V	Standard	IP40	Button Square	100 mA	Solder Lug	-25 °C	65 °C	No Marking
EAO 18-148.035	Panel Mount Front										SPST-NC	On-Mom	42 V	42 V	Standard	IP40	Button Rectangular	100 mA	Solder Lug	-25 °C	65 °C	No Marking	8 mm
EAO 18-138.035	Panel Mount Front								2000000 Cycles	50000 Cycles	SPST-NC	On-Mom	42 V	42 V	Standard	IP40	Button Round	100 mA	Solder Lug	-25 °C	65 °C	No Marking	8 mm
EAO 18-062.0052L															LED	IP40			Solder Lug					Diffused	Round	10 mA	24 V	Red	0.64 in	16.2 mm	DC	Round with Flat Top
EAO 18-982.2	Snap Fit	Pushbutton	Square	Illuminated	Red	18 Series	13.8 mm	13.8 mm
EAO 18-248.035	Panel Mount Front										SPST-NC	On-Off	42 V	42 V	Standard	IP40	Button Rectangular	100 mA	Solder Lug	-25 °C	65 °C	No Marking	8 mm
EAO 18-942.0	Snap Fit	Pushbutton	Rectangular	Non-Illuminated	Black	18 Series	7.5 mm	12.5 mm
