MTJG-2 Series

Manufacturer: Adam Tech

Catalog

GANGED 2 POSITION MODULAR JACK,

Part	Contact Finish Thickness	Housing Material	Shield Material	Number of Ports	Features	Contact Material	Tab Direction	Height Above Board	Height Above Board	Orientation	Contact Finish	LED Color	Connector Type	Number of Rows	Shielding	Termination	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Height Above Board [z]	Height Above Board [z]	Number of Rows [custom]	Number of Cores per Jack	Number of Positions/Contacts

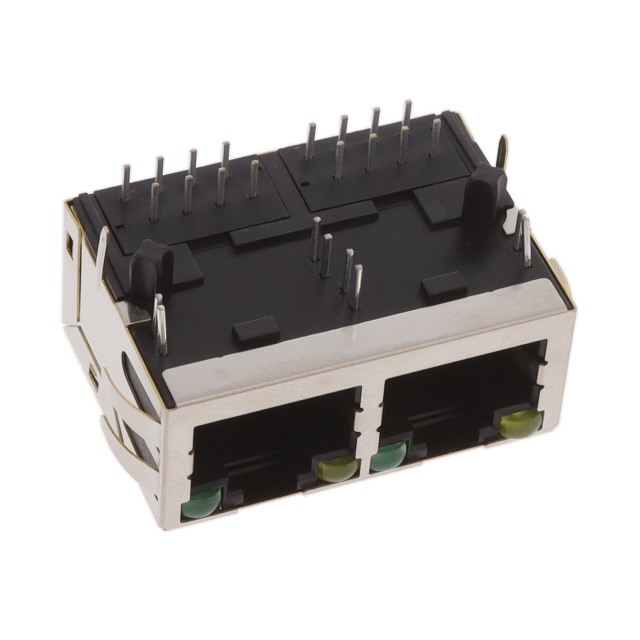

Adam Tech MTJG-2-88TUX1-FSD-PG-VLG-M5C	Flash	Thermoplastic	Brass Nickel Coated	2	Board Guide Solder Retention	Copper Alloy	Up	13.49 mm	0.531 in	90 °	Gold	Yellow - Green	Jack	1	EMI Finger Shielded	Solder	Through Hole	85 °C	-40 C

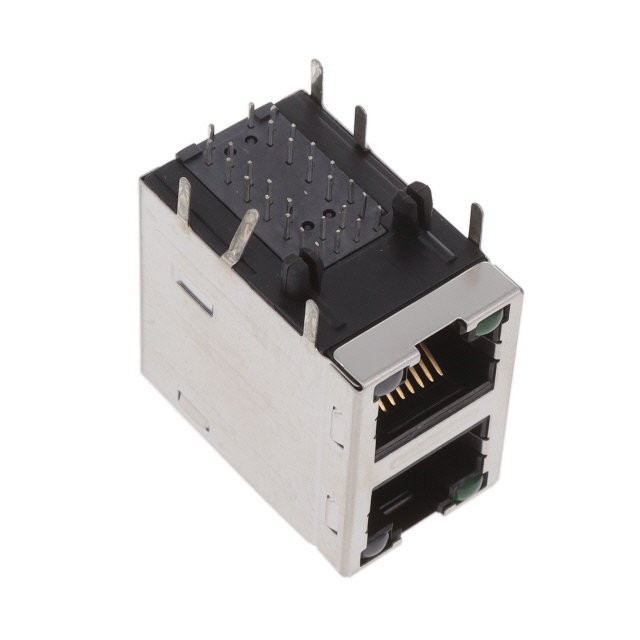

Adam Tech MTJG-2-88J11-V-FSG-L36-M268Y	Flash	Thermoplastic	Stainless Steel	2	Board Lock Solder Retention	Copper Alloy	Up and Down			90 °	Gold	Green - Green Orange	Jack		Shielded	Solder	Through Hole	70 °C	0 °C	0.943 in	24 mm	2	6
Adam Tech MTJG-2-88JX1-FSG-PG-L16	Flash	Polyamide (PA66) Nylon 6/6 Glass Filled		2	Board Lock Solder Retention	Phosphor Bronze	Up and Down			90 °	Gold	Green Yellow	Jack		EMI Finger Shielded	Solder	Through Hole	85 °C	-40 C			2		8p8c (RJ45 Ethernet)
Adam Tech MTJG-2-88JX1-FSH-LH-Y-HT	Flash	Thermoplastic		2	Board Lock Solder Retention	Phosphor Bronze	Up and Down			90 °	Gold	Green - Yellow	Jack		Shielded	Solder	Through Hole	85 °C	-40 C			2		8p8c (RJ45 Ethernet)

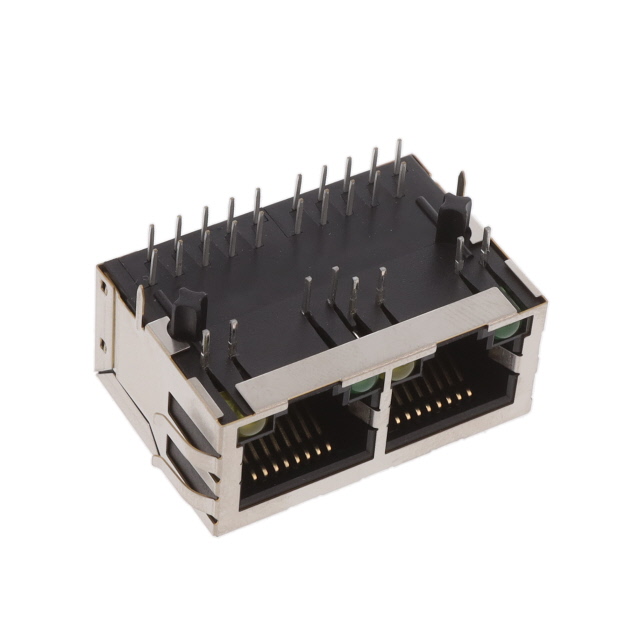

Adam Tech MTJG-2-88TX1-FSD-PG-LH-NRSP-M47C	Flash	Thermoplastic	Brass Nickel Coated	2	Board Guide Solder Retention	Phosphor Bronze	Down			90 °	Gold	Green - Yellow	Jack	1	EMI Finger Shielded	Solder	Through Hole	70 °C	0 °C	0.537 in	13.65 mm		8

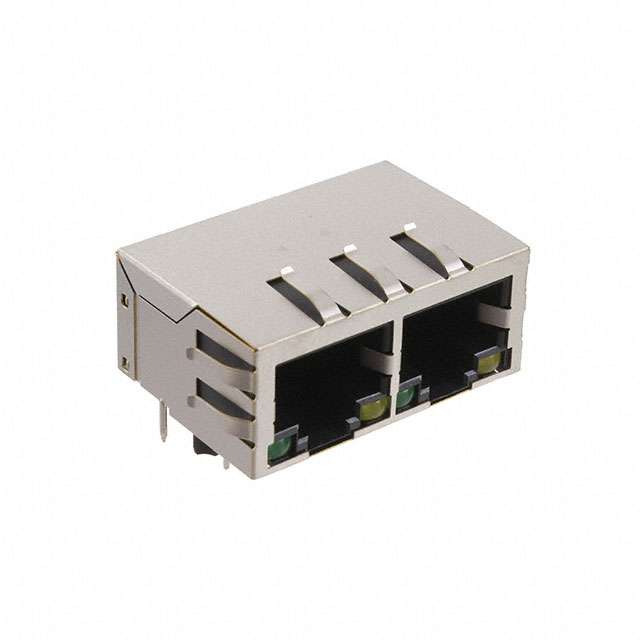

Adam Tech MTJG-2-88TX1-FSD-PG-LH-M4	Flash		Copper Alloy Nickel Coated	2	Board Guide Solder Retention	Copper Alloy	Down	13.49 mm	0.531 in	90 °	Gold	Green - Yellow	Jack	1	EMI Finger Shielded	Solder	Through Hole	70 °C	0 °C
