90056 Series
Manufacturer: Preci-Dip
Beta
⌘K

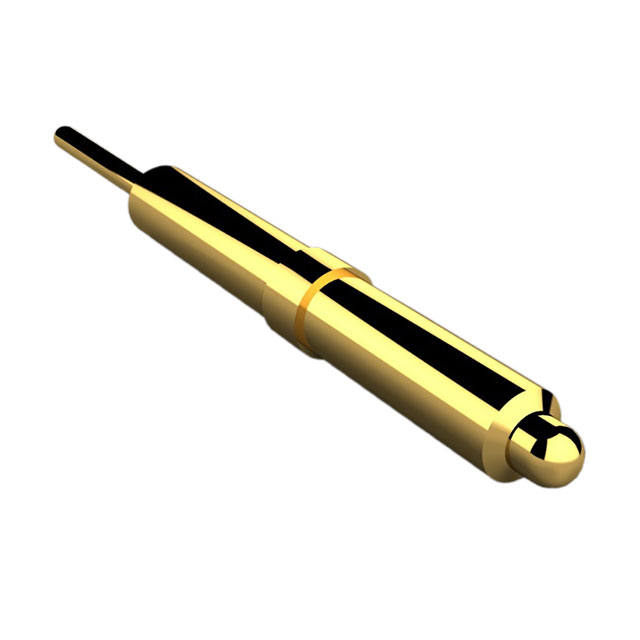

CONTACT SPRING LOADED T/H GOLD
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish | Minimum Working Height | Minimum Working Height | Pad Layout Dimension | Pad Layout Dimension | Pad Layout Dimension | Maximum Working Height [Max] [custom] | Maximum Working Height [Max] [custom] | Mounting Type | Mating Cycles | Current Rating (Amps) | Operating Force - Mid Compression | Contact Material | Plunger Size [diameter] | Plunger Size [diameter] | Contact Finish Thickness | Contact Finish Thickness | Contact Type | Operating Force - Initial |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Preci-Dip | -55 C | 125 °C | Gold | 11.2 mm | 0.441 " | 1.5 mm | 0.059 in | Circular | 0.472 in | 12 mm | Through Hole | 40000 | 3 A | 71.38 gf | Brass Alloy | 0.037 in | 0.95 mm | 30 Áin | 0.76 Ám | Sleeve & Plunger (Pogo Pins) | 36.71 gf |
