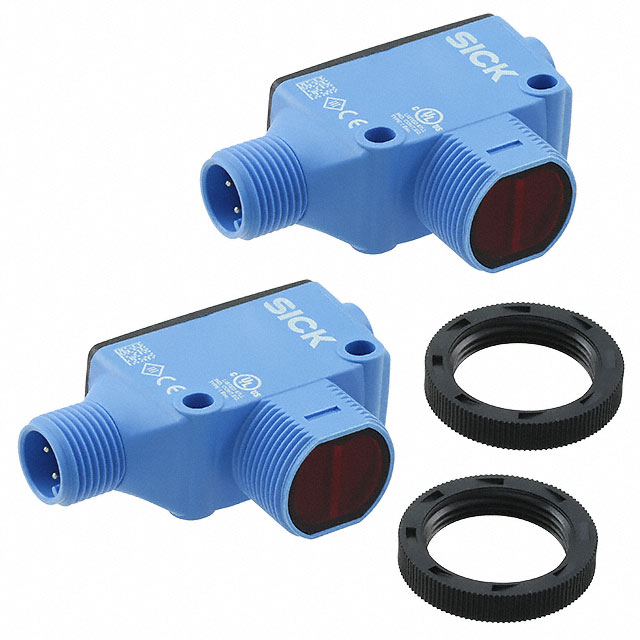

HSE18 Series

Catalog

SENSOR THROUGH-BEAM 20M NPN/PNP

Part	Connection Method	Light Source	Output Configuration	Voltage - Supply [Min]	Voltage - Supply [Max]	Response Time	Sensing Method	Operating Temperature [Max]	Operating Temperature [Min]	Adjustment Type	Sensing Distance	Sensing Distance	Ingress Protection	Sensing Distance [Max]	Sensing Distance [Max]	Sensing Distance [Min]	Sensing Distance [Min]	Cable Length	Cable Length
SICK, Inc. 1083150	Connector M12	Red (631nm)	NPN PNP	10 VDC	30 VDC	500 µs	Through-Beam	70 °C	-40 ¯C	Adjustable Potentiometer	2000 cm	787.402 in	IP67 IP69K
SICK, Inc. HSE18-B4A2BA	Connector M12 4POS	Red LED	NPN/PNP - Light-ON	10 VDC	30 VDC	500 µs	Through-Beam	70 °C	-40 C				IP67 IP69K	787.402 in	2000 cm	0 "	0 m
SICK, Inc. 1070999	Connector M12	Red (631nm)	NPN PNP	10 VDC	30 VDC	500 µs	Through-Beam	70 °C	-40 ¯C		2000 cm	787.402 in	IP67 IP69K
SICK, Inc. 1071015	Connector M12	Infrared (880nm)	PNP	10 VDC	30 VDC	500 µs	Through-Beam	70 °C	-40 ¯C	Adjustable Potentiometer	2000 cm	787.402 in	IP67
SICK, Inc. HSE18-P3A2BA	Connector M8	Red (631nm)	PNP	10 VDC	30 VDC	500 µs	Through-Beam	70 °C	-40 ¯C		25 m	984.252 in	IP67
SICK, Inc. 1070987	Cable	Red (631nm)	NPN PNP	10 VDC	30 VDC	500 µs	Through-Beam	70 °C	-40 ¯C		25 m	984.252 in	IP67					78.74 "	2 m
SICK, Inc. 1071744	Cable	Red (631nm)	NPN PNP	10 VDC	30 VDC	500 µs	Through-Beam	70 °C	-40 ¯C		25 m	984.252 in	IP67					78.74 "	2 m
SICK, Inc. 1082363	Connector M12	Infrared (880nm)	NPN PNP	10 VDC	30 VDC	500 µs	Through-Beam	70 °C	-40 ¯C		15 m	590.551 in	IP67 IP69K
SICK, Inc. 1085622	Connector M8	Red (631nm)	PNP	10 VDC	30 VDC	500 µs	Through-Beam	70 °C	-40 ¯C	Adjustable Potentiometer	25 m	984.252 in	IP67

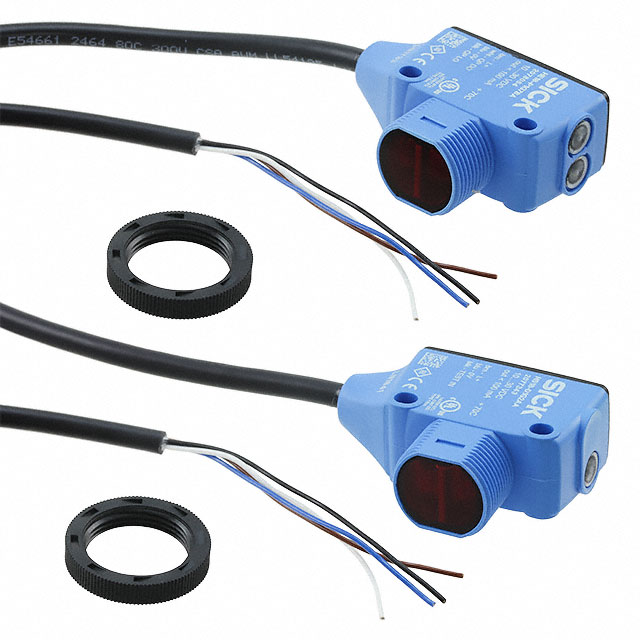

SICK, Inc. HSE18-P1G2BA	Cable	Red LED	PNP - Dark-ON/Light-ON - Selectable	10 VDC	30 VDC	500 µs	Through-Beam	70 °C	-40 C				IP67 IP69K	787.402 in	2000 cm	0 "	0 m
