29501 Series
Manufacturer: Belden Inc.
Beta
⌘K

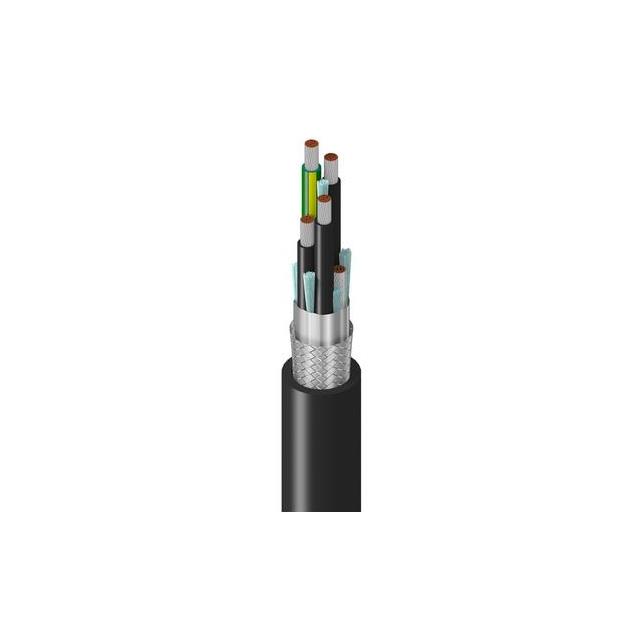

MULTICONDUCTOR CABLE, VFD, SHIELDED, 4 CONDUCTOR, 14 AWG, 100 FT, 30.48 M
| Part | Shield Material | Shield Coverage | Jacket Color | Number of Conductors | Features | Usage | Conductor Material | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Length [x] | Length [x] | Wire Gauge | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Shield Type | Jacket (Insulation) Material | Conductor Insulation | Conductor Insulation | Cable Type | Conductor Strand [custom] | Conductor Strand [custom] | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Aluminum Copper Tinned | 85 % 100 % | Black | 4 | Drain Wire Oil Resistant UV Resistant | Motor Supply Variable Frequency Drive (VFD) | Copper Tinned | 1.854 mm | 0.073 in | 100 ft | 30.5 m | 14.5 AWG | 0.604 " | 15.34 mm | Braid Foil | Poly-Vinyl Chloride (PVC) | Polyolefin | PO | Multi-Conductor | 41 | 30 | 90 °C | -40 C |
