IMSA-1012 Series

Catalog

CONN SOCKET VERT B-TO-B FLOATING

Part	Mounting Type	Pitch [x]	Pitch [x]	Connector Type	Number of Positions	Features	Height Above Board [z]	Height Above Board [z]	Number of Rows [custom]	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Pitch	Pitch	Height Above Board	Height Above Board

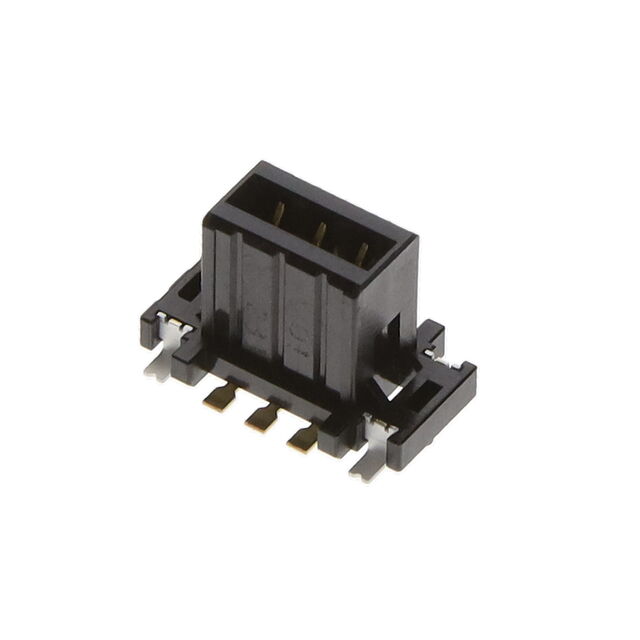

IRISO USA Inc. IMSA-10120S-06Z10-GFN4	Surface Mount	0.079 in	2 mm	Socket Center Strip Contacts	6	Board Guide Solder Retention	0.329 in	8.35 mm	2

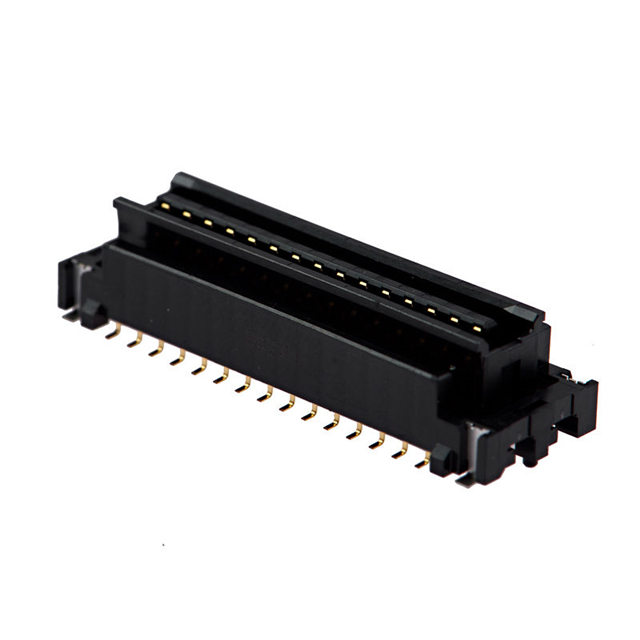

IRISO USA Inc. IMSA-10120B-30Z04-GFN4	Surface Mount	0.079 in	2 mm		30	Board Guide Solder Retention	0.352 in	8.95 mm	2	Gold	0.1 Ám	4 Áin

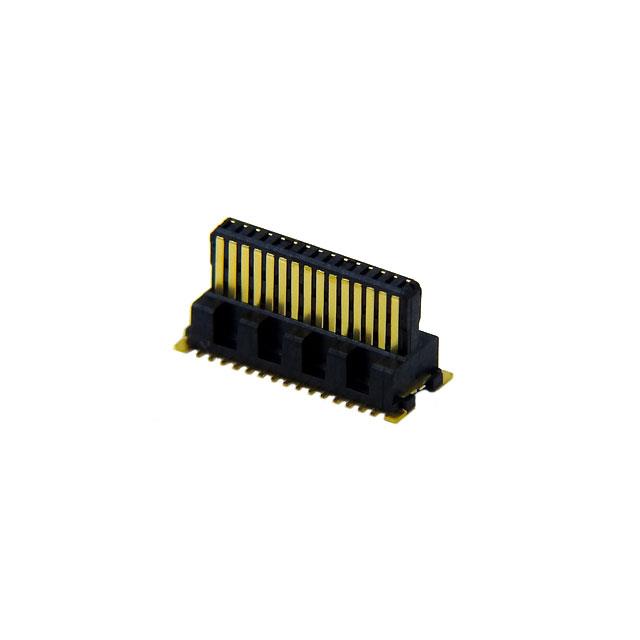

IRISO USA Inc. IMSA-10126B-30H-GFN4	Surface Mount				30	Solder Retention			2	Gold			0.4 mm	0.016 in
IRISO USA Inc. IMSA-10120S-20Z14-GFN4	Surface Mount	0.079 in	2 mm	Socket Center Strip Contacts	20	Board Guide Solder Retention	0.486 in	12.35 mm	2	Gold	0.1 Ám	4 Áin
IRISO USA Inc. IMSA-10120B-06Y913	Surface Mount	0.079 in	2 mm		6	Board Guide Solder Retention	0.352 in	8.95 mm	2	Gold	0.1 Ám	4 Áin

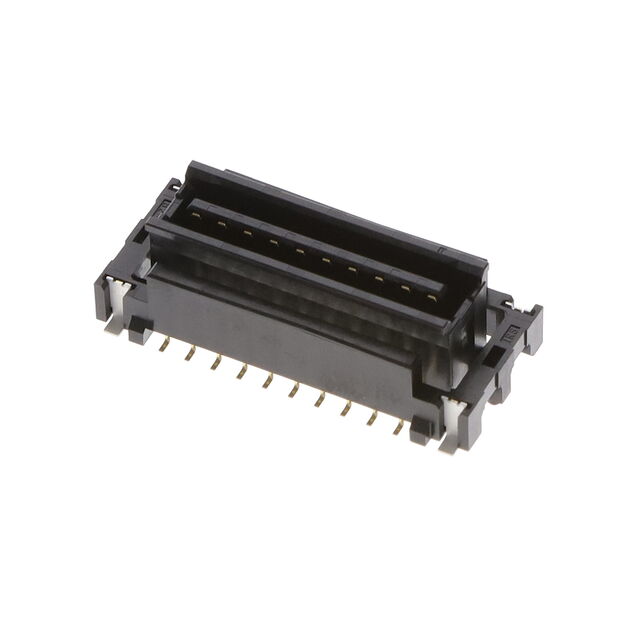

IRISO USA Inc. IMSA-10120B-20Z04-GFN4	Surface Mount	0.079 in	2 mm		20	Board Guide Solder Retention	0.352 in	8.95 mm	2	Gold	0.1 Ám	4 Áin
IRISO USA Inc. IMSA-10120S-06Z18-GFN4	Surface Mount	0.079 in	2 mm	Socket Center Strip Contacts	6	Board Guide Solder Retention			2	Gold	0.1 Ám	4 Áin			16.35 mm	0.644 in

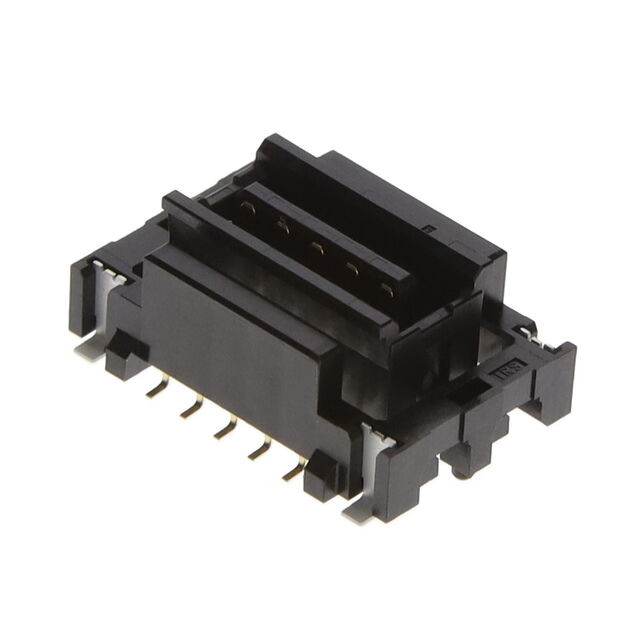

IRISO USA Inc. IMSA-10120B-10Z02-GFN4	Surface Mount	0.079 in	2 mm		10	Board Guide Solder Retention	0.313 in	7.95 mm	2	Gold	0.1 Ám	4 Áin

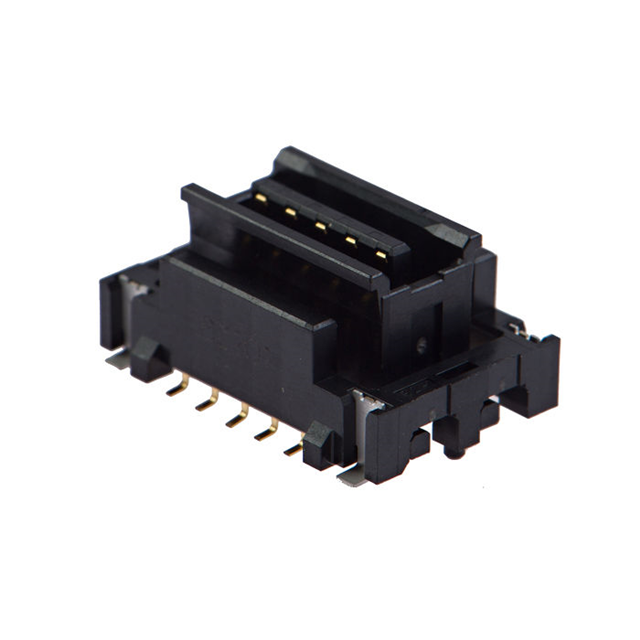

IRISO USA Inc. IMSA-10120B-10Z04-GFN4	Surface Mount	0.079 in	2 mm		10	Board Guide Solder Retention	0.352 in	8.95 mm	2	Gold	0.1 Ám	4 Áin
IRISO USA Inc. IMSA-10120B-30Y913	Surface Mount	0.079 in	2 mm		30	Board Guide Solder Retention	0.352 in	8.95 mm	2	Gold	0.1 Ám	4 Áin
