PCX Series
Manufacturer: Laird Thermal Systems, Inc.
Beta
⌘K

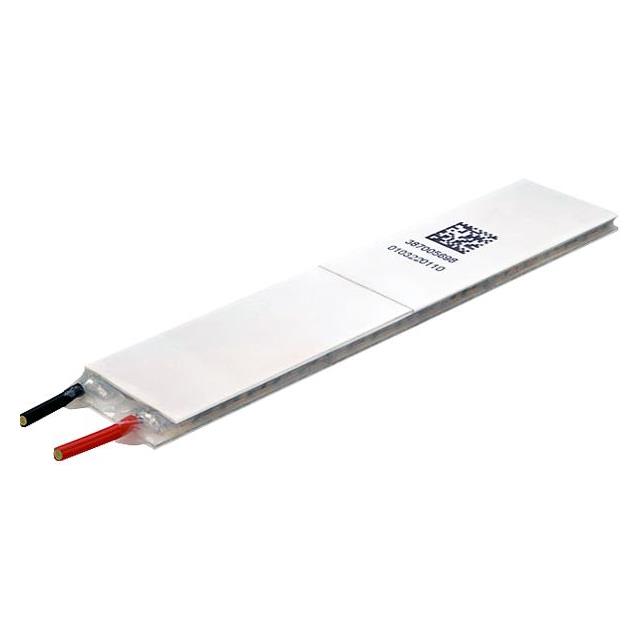

THERMOELECTRIC PELTIER MODULES THERMOELECTRIC COOLER, HIGH PERFORMANCE, LONG LIFE, RTV PERIMETER SEAL
| Part | Delta Tmax @ Th | Voltage - Max [Max] | Size / Dimension [y] | Size / Dimension [x] | Height [z] | Operating Temperature | Resistance | Current - Max [Max] | Number of Stages | Features | Qmax @ Th |
|---|---|---|---|---|---|---|---|---|---|---|---|
 Laird Thermal Systems, Inc. | 73.6 °C | 14 V | 25 mm | 29 mm | 3.3 mm | 120 °C | 810 mOhms | 16.4 A | 1 | Lead Wires Sealed - Silicone RTV | 133.1 W |
 Laird Thermal Systems, Inc. | 73.6 °C | 17.8 V | 16.8 mm | 76.7 mm | 2.55 mm | 120 °C | 1.94 Ohms | 8.6 A | 1 | Lead Wires Sealed - Silicone RTV | 88.8 W |
