1221-0 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

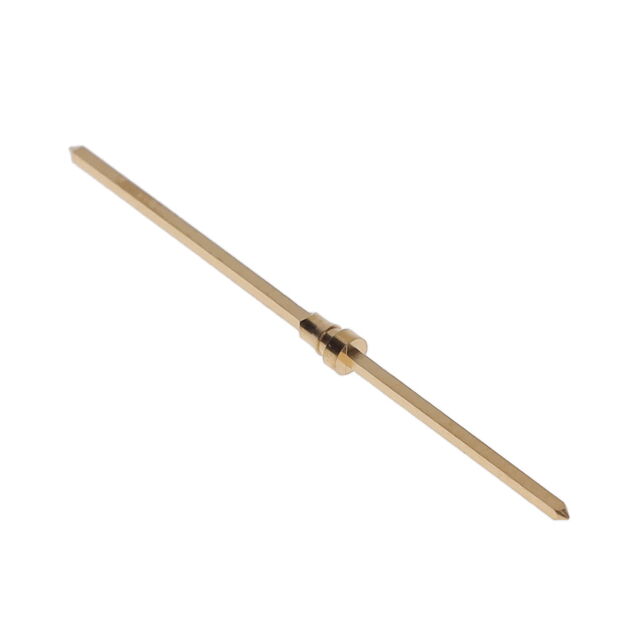

CONN PC PIN SQUARE 0.025 GOLD
| Part | Pin Size - Above Flange | Pin Size - Above Flange | Terminal Style | Mounting Type | Flange Diameter [diameter] | Flange Diameter [diameter] | Contact Finish Thickness | Contact Finish Thickness | Contact Finish | Insulation | Length - Above Flange [x] | Length - Above Flange [x] | Termination | Length - Below Flange [x] | Length - Below Flange [x] | Mounting Hole Diameter | Mounting Hole Diameter | Length - Overall [x] | Length - Overall [x] | Contact Material | Terminal Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | 0.025 in | 0.64 mm | Double End | Through Hole | 0.072 " | 1.83 mm | 0.25 Ám | 10 Áin | Gold | Non-Insulated | 13.21 mm | 0.52 in | Press-Fit Wire Wrap | 0.656 " | 16.66 mm | 1.42 mm | 0.056 " | 30.66 mm | 1.207 in | Brass Alloy | PC Pin |
 Mill-Max Manufacturing Corp. | 0.025 in | 0.64 mm | Double End | Through Hole | 0.072 " | 1.83 mm | 0.51 µm | 20 µin | Gold | Non-Insulated | 13.21 mm | 0.52 in | Press-Fit Wire Wrap | 0.656 " | 16.66 mm | 1.42 mm | 0.056 " | 30.66 mm | 1.207 in | Brass Alloy | PC Pin |
Mill-Max Manufacturing Corp. | 0.025 in | 0.64 mm | Double End | Through Hole | 0.072 " | 1.83 mm | 5.08 Ám | 200 Áin | Tin-Lead | Non-Insulated | 13.21 mm | 0.52 in | Press-Fit Wire Wrap | 0.656 " | 16.66 mm | 1.42 mm | 0.056 " | 30.66 mm | 1.207 in | Brass Alloy | PC Pin |
