DRV8842-EP Series

47-V, 5-A brushed DC or half-bipolar stepper motor driver with PWM control

Catalog

47-V, 5-A brushed DC or half-bipolar stepper motor driver with PWM control

Part	Output Configuration	Current - Output	Voltage - Supply [Max]	Voltage - Supply [Min]	Interface	Supplier Device Package	Motor Type - AC, DC	Technology	Function	Package / Case [custom]	Package / Case	Package / Case [custom]	Mounting Type	Voltage - Load [Max]	Voltage - Load [Min]	Applications	Motor Type - Stepper	Operating Temperature [Max]	Operating Temperature [Min]	Supplied Contents	Secondary Attributes	Utilized IC / Part	Embedded	Primary Attributes	Primary Attributes [Max]	Primary Attributes	Primary Attributes [Min]	Type
Texas Instruments DRV8842MPWPREP	Half Bridge (2)	3.5 A	45 V	8.2 V	Parallel	28-HTSSOP	Brushed DC	Power MOSFET	Driver - Fully Integrated Control and Power Stage	4.4 mm	28-PowerTSSOP	0.173 "	Surface Mount	45 V	8.2 V	General Purpose	Bipolar	125 ¯C	-55 °C

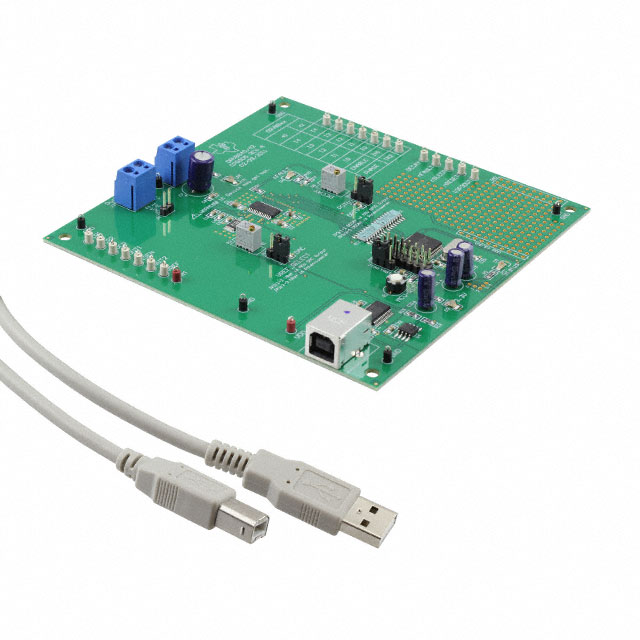

Texas Instruments DRV8842EVM									Motor Controller/Driver											Board(s)	Graphical User Interface (GUI)	DRV8842	16-Bit MCU	Single-H-Bridge Driver	45 V	3.5 A	8.2 V	Power Management
Texas Instruments DRV8842PWP	Half Bridge (2)	3.5 A	45 V	8.2 V	Parallel	28-HTSSOP	Brushed DC	Power MOSFET	Driver - Fully Integrated Control and Power Stage	4.4 mm	28-PowerTSSOP	0.173 "	Surface Mount	45 V	8.2 V	General Purpose	Bipolar	150 °C	-40 °C

Catalog

47-V, 5-A brushed DC or half-bipolar stepper motor driver with PWM control

Key Features

• Single H-Bridge Current-Control Motor DriverDrives One DC Motor, One Coil of a StepperMotor, or Other ActuatorsFive-Bit Winding Current Control Allows Up to32 Current LevelsLow MOSFET On-Resistance5-A Maximum Drive Current at 24 V, 25°CBuilt-In 3.3-V Reference OutputIndustry-Standard PWM Control Interface8.2-V to 45-V Operating Supply Voltage RangeThermally Enhanced Surface Mount PackageSupports Defense, Aerospace, and MedicalApplicationsControlled BaselineOne Assembly and Test SiteOne Fabrication SiteAvailable in Military (–55°C to 125°C)Temperature RangeExtended Product Life CycleExtended Product-Change NotificationProduct TraceabilitySingle H-Bridge Current-Control Motor DriverDrives One DC Motor, One Coil of a StepperMotor, or Other ActuatorsFive-Bit Winding Current Control Allows Up to32 Current LevelsLow MOSFET On-Resistance5-A Maximum Drive Current at 24 V, 25°CBuilt-In 3.3-V Reference OutputIndustry-Standard PWM Control Interface8.2-V to 45-V Operating Supply Voltage RangeThermally Enhanced Surface Mount PackageSupports Defense, Aerospace, and MedicalApplicationsControlled BaselineOne Assembly and Test SiteOne Fabrication SiteAvailable in Military (–55°C to 125°C)Temperature RangeExtended Product Life CycleExtended Product-Change NotificationProduct Traceability

Description

The DRV8842-EP provides an integrated motor driver solution for printers, scanners, and other automated equipment applications. The device has one H-bridge driver, and is intended to drive one DC motor, one coil of a stepper motor, or other loads. The output driver block consists of N-channel power MOSFETs configured as an H-bridge. The DRV8842-EP can supply up to 5-A peak or 3.5-A RMS output current (with proper heatsinking at 24 V and 25°C). Separate inputs to independently control each half of the H-bridge are provided. Internal shutdown functions are provided for overcurrent protection, short circuit protection, undervoltage lockout, and over-temperature. The DRV8842-EP is available in a 28-pin HTSSOP package with PowerPAD (Eco-friendly: RoHS & no Sb/Br). The DRV8842-EP provides an integrated motor driver solution for printers, scanners, and other automated equipment applications. The device has one H-bridge driver, and is intended to drive one DC motor, one coil of a stepper motor, or other loads. The output driver block consists of N-channel power MOSFETs configured as an H-bridge. The DRV8842-EP can supply up to 5-A peak or 3.5-A RMS output current (with proper heatsinking at 24 V and 25°C). Separate inputs to independently control each half of the H-bridge are provided. Internal shutdown functions are provided for overcurrent protection, short circuit protection, undervoltage lockout, and over-temperature. The DRV8842-EP is available in a 28-pin HTSSOP package with PowerPAD (Eco-friendly: RoHS & no Sb/Br).
