PPPC371 Series

Catalog

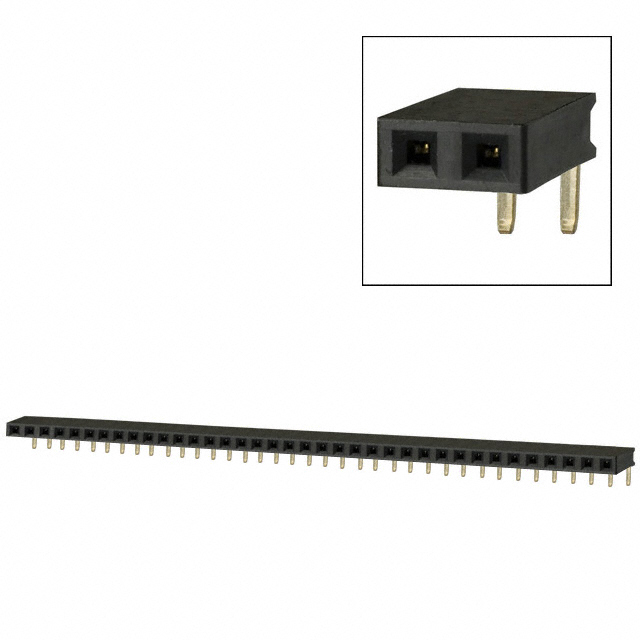

CONN HDR 37POS 0.1 GOLD PCB R/A

Part	Contact Shape	Insulation Material	Contact Material	Contact Finish Thickness - Post	Contact Type	Number of Rows	Contact Length - Post	Contact Length - Post	Current Rating (Amps)	Contact Finish - Post	Number of Positions	Connector Type	Insulation Color	Number of Positions Loaded	Contact Finish - Mating	Voltage Rating	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Material Flammability Rating	Insulation Height	Insulation Height	Pitch - Mating	Pitch - Mating	Mounting Type	Fastening Type	Contact Finish Thickness - Mating
Sullins Connector Solutions PPPC371LGBN-RC	Square	Polyester	Phosphor Bronze	Flash	Female Socket	1	0.124 in	3.15 mm	3 A	Gold	37	Header	Black	All	Gold	250 V	-40 C	105 ░C	Solder	UL94 V-0	0.1 in	2.54 mm	0.1 "	2.54 mm	Right Angle Through Hole	Push-Pull	Flash
