9513 Series
Manufacturer: Belden Inc.
Beta
⌘K

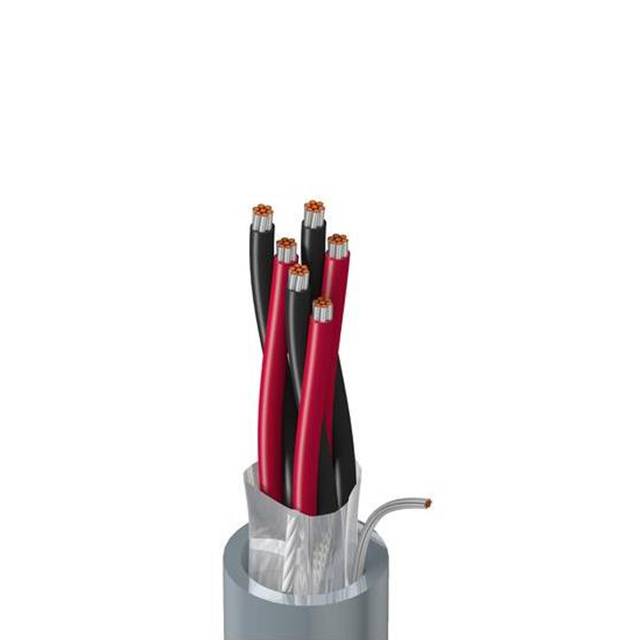

MULTI-PAIR 6COND 22AWG
| Part | Shield Material | Shield Coverage | Features | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Shield Type | Voltage | Jacket (Insulation) Material | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Number of Conductors | Conductor Material | Jacket Color | Conductor Insulation | Length | Length | Operating Temperature [Min] | Operating Temperature [Max] | Wire Gauge | Conductor Strand [custom] | Conductor Strand [custom] | Ratings | Usage | Cable Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Aluminum | 100 % | Drain Wire Flame Retardant Rip Cord | 8.31 mm | 0.327 " | Foil | 300 VDC | Poly-Vinyl Chloride (PVC) | 0.042 in | 1.067 mm | 6 | Copper Tinned | Chrome | Poly-Vinyl Chloride (PVC) | 304.8 m | 1000 ft | -30 ░C | 105 ░C | 22 AWG | 30 AWG | 7 | UL Style 2464 | Instrumentation | Multi-Pair |
Belden Inc. | Aluminum | 100 % | Drain Wire Flame Retardant Rip Cord | 8.31 mm | 0.327 " | Foil | 300 VDC | Poly-Vinyl Chloride (PVC) | 0.042 in | 1.067 mm | 6 | Copper Tinned | Chrome | Poly-Vinyl Chloride (PVC) | -30 ░C | 105 ░C | 22 AWG | 30 AWG | 7 | UL Style 2464 | Instrumentation | Multi-Pair |
