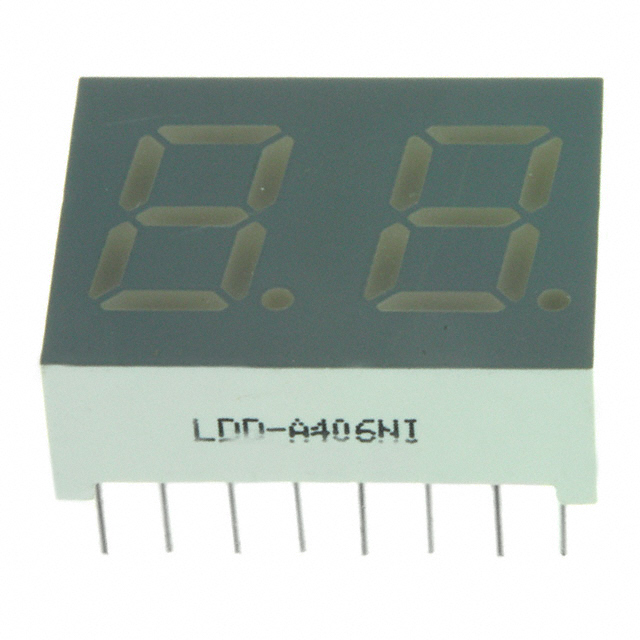

LDD-A406 Series
Manufacturer: Lumex Opto/Components Inc.
Beta
⌘K
DISPLAY 7-SEG 0.4" DBL RED 16DIP
| Part | Millicandela Rating | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Digit/Alpha Size | Digit/Alpha Size | Package / Case | Number of Characters | Color | Voltage - Forward (Vf) (Typ) | Common Pin | Wavelength - Peak | Current - Test | Display Type | Power Dissipation (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Lumex Opto/Components Inc. | 6.3 mcd | 0.276 in | 0.63 in | 20.1 mm | 0.791 " | 16 mm | 7 mm | 10.16 mm | 0.4 in | 16-DIP (0.500" 12.70mm) | 2 | Red | 1.7 V | Common Anode | 660 nm | 10 mA | 7-Segment | 105 mW |
