TAS5709A Series

20-W stereo, 8- to 24-V supply, digital input, open loop Class-D audio amplifier w/ speaker EQ & DRC

Catalog

20-W stereo, 8- to 24-V supply, digital input, open loop Class-D audio amplifier w/ speaker EQ & DRC

Part	Max Output Power x Channels @ Load [x]	Max Output Power x Channels @ Load	Type	Output Type	Package / Case	Supplier Device Package	Features	Mounting Type	Operating Temperature [Max]	Voltage - Supply [Min]	Voltage - Supply [Max]

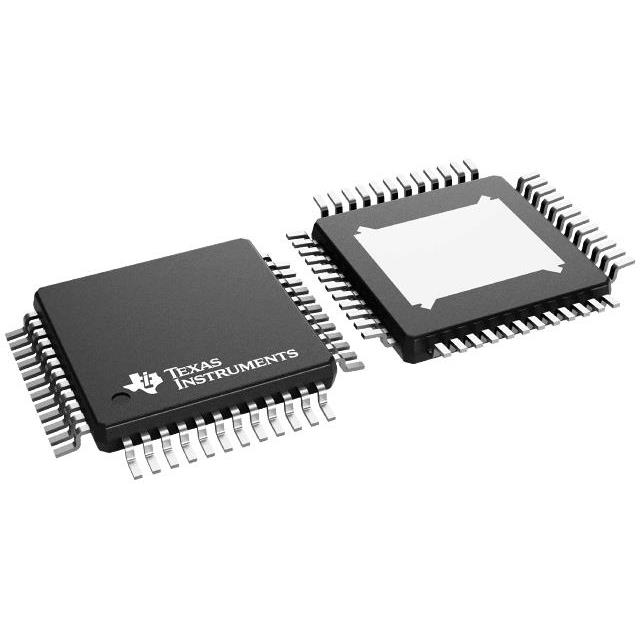

Texas Instruments TAS5709APHP	2	20.6 W	Class D	2-Channel (Stereo)	48-PowerTQFP	48-HTQFP (7x7)	Depop Digital Inputs I2C I2S Mute Short-Circuit and Thermal Protection Shutdown Volume Control	Surface Mount	85 C
Texas Instruments TAS5709PHPR	2	20.6 W	Class D	2-Channel (Stereo)	48-PowerTQFP	48-HTQFP (7x7)	Depop Digital Inputs I2C I2S Mute Short-Circuit and Thermal Protection Shutdown Volume Control	Surface Mount	85 C
Texas Instruments TAS5709PHP	2	20.6 W	Class D	2-Channel (Stereo)	48-PowerTQFP	48-HTQFP (7x7)	Depop Digital Inputs I2C I2S Mute Short-Circuit and Thermal Protection Shutdown Volume Control	Surface Mount	85 C
Texas Instruments TAS5709AGPHP	2	20.6 W	Class D	4 Half Bridge	48-PowerTQFP	48-HTQFP (7x7)		Surface Mount	85 C	3 V 8 V	3.6 V 24 V
Texas Instruments TAS5709APHPR	2	20.6 W	Class D	2-Channel (Stereo)	48-PowerTQFP	48-HTQFP (7x7)	Depop Digital Inputs I2C I2S Mute Short-Circuit and Thermal Protection Shutdown Volume Control	Surface Mount	85 C

Catalog

20-W stereo, 8- to 24-V supply, digital input, open loop Class-D audio amplifier w/ speaker EQ & DRC

Key Features

• Audio Input/Output20-W Into an 8-Load From an 18-V SupplyWide PVDD Range, From 8 V to 24 VEfficient Class-D Operation Eliminates Need for HeatsinksRequires Only 3.3 V and PVDDOne Serial Audio Input (Two Audio Channels)Supports 8-kHz to 48-kHz Sample Rate (LJ/RJ/I2S)Audio/PWM ProcessingIndependent Channel Volume Controls With 24 dB to MuteSoft Mute (50% Duty Cycle)Programmable 2-Band Dynamic Range Control22 Programmable Biquads for Speaker EQ and Other Audio-Processing FeaturesProgrammable Coefficients for DRC FiltersProgrammable Input and Output MixersDC Blocking FiltersSupport for 3D EffectsPseudo Bass SupportGeneral FeaturesSerial Control Interface Operational Without MCLKFactory-Trimmed Internal Oscillator for Automatic Rate DetectionSurface Mount, 48-Pin, 7-mm × 7-mm HTQFP PackageThermal and Short-Circuit ProtectionBenefitsEQ: Speaker Equalization Improves Audio PerformanceDRC: Dynamic Range Compression. Can Be Used As Power Limiter. Enables Speaker Protection, Easy Listening, Night-Mode ListeningTwo-Band DRC: Sets Two Different Thresholds for Low- and High-Frequency ContentAutobank Switching: Preload Coefficients for Different Sample Rates. No Need to Write New Coefficients to the Part When Sample Rate ChangesAutodetect: Automatically Detects Sample-Rate Changes. No Need for External Microprocessor InterventionAudio Input/Output20-W Into an 8-Load From an 18-V SupplyWide PVDD Range, From 8 V to 24 VEfficient Class-D Operation Eliminates Need for HeatsinksRequires Only 3.3 V and PVDDOne Serial Audio Input (Two Audio Channels)Supports 8-kHz to 48-kHz Sample Rate (LJ/RJ/I2S)Audio/PWM ProcessingIndependent Channel Volume Controls With 24 dB to MuteSoft Mute (50% Duty Cycle)Programmable 2-Band Dynamic Range Control22 Programmable Biquads for Speaker EQ and Other Audio-Processing FeaturesProgrammable Coefficients for DRC FiltersProgrammable Input and Output MixersDC Blocking FiltersSupport for 3D EffectsPseudo Bass SupportGeneral FeaturesSerial Control Interface Operational Without MCLKFactory-Trimmed Internal Oscillator for Automatic Rate DetectionSurface Mount, 48-Pin, 7-mm × 7-mm HTQFP PackageThermal and Short-Circuit ProtectionBenefitsEQ: Speaker Equalization Improves Audio PerformanceDRC: Dynamic Range Compression. Can Be Used As Power Limiter. Enables Speaker Protection, Easy Listening, Night-Mode ListeningTwo-Band DRC: Sets Two Different Thresholds for Low- and High-Frequency ContentAutobank Switching: Preload Coefficients for Different Sample Rates. No Need to Write New Coefficients to the Part When Sample Rate ChangesAutodetect: Automatically Detects Sample-Rate Changes. No Need for External Microprocessor Intervention

Description

The TAS5709 is a 20-W, efficient, digital audio-power amplifier for driving stereo bridge-tied speakers. One serial data input allows processing of up to two discrete audio channels and seamless integration to most digital-audio processors and MPEG decoders. The device accepts a wide range of input data and data rates. A fully programmable data path routes these channels to the internal speaker drivers. The TAS5709 is a slave-only device receiving all clocks from external sources. The TAS5709 operates with a PWM carrier between a 384-kHz switching rate and a 352-KHz switching rate, depending on the input sample rate. Oversampling combined with a fourth-order noise shaper provides a flat noise floor and excellent dynamic range from 20 Hz to 20 kHz. The TAS5709A is identical in function to the TAS5709, but has a unique I2C device address. The address of the TAS5709 is 0x36. The address of the TAS5709A is 0x3A. The TAS5709 is a 20-W, efficient, digital audio-power amplifier for driving stereo bridge-tied speakers. One serial data input allows processing of up to two discrete audio channels and seamless integration to most digital-audio processors and MPEG decoders. The device accepts a wide range of input data and data rates. A fully programmable data path routes these channels to the internal speaker drivers. The TAS5709 is a slave-only device receiving all clocks from external sources. The TAS5709 operates with a PWM carrier between a 384-kHz switching rate and a 352-KHz switching rate, depending on the input sample rate. Oversampling combined with a fourth-order noise shaper provides a flat noise floor and excellent dynamic range from 20 Hz to 20 kHz. The TAS5709A is identical in function to the TAS5709, but has a unique I2C device address. The address of the TAS5709 is 0x36. The address of the TAS5709A is 0x3A.
