EP7 Series Series
Manufacturer: SWITCHCRAFT/CONXALL
Beta
⌘K

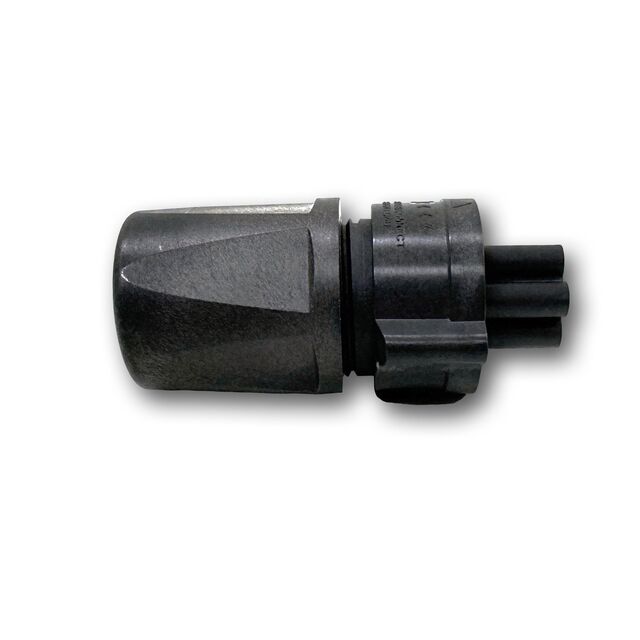

CIRCULAR CONNECTOR, EP7 SERIES, CABLE MOUNT RECEPTACLE, 3 CONTACTS, SCREW SOCKET, BAYONET
| Part | Shell Size - Insert | Features | Ingress Protection | Connector Type | Orientation | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material | Insert Material | Contact Finish - Mating | Mounting Type | Cable Opening [Min] | Cable Opening [Max] | Cable Opening [Max] | Cable Opening [Min] | Current Rating (Amps) | Voltage Rating | Primary Material | Color | Shielding | Fastening Type | Backshell Material, Plating | Termination | Accessory Type | For Use With/Related Products | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SWITCHCRAFT/CONXALL | C | Backshell | IP66 IP67 IP68 IP69K | Plug Female Sockets | Keyed | -40 C | 135 °C | Copper Alloy | Thermoplastic | Gold | Free Hanging (In-Line) | 0.375 in | 12.7 mm | 0.5 " | 9.53 mm | Varies by Wire Gauge | 600 VAC | Plastic | Black | Unshielded | Bayonet Lock | Thermoplastic | Screw | |||
 SWITCHCRAFT/CONXALL | Set Screw | Circular Connectors | ||||||||||||||||||||||||
 SWITCHCRAFT/CONXALL | B | Backshell | IP66 IP67 IP68 IP69K | Plug Female Sockets | Keyed | -40 C | 135 °C | Copper Alloy | Thermoplastic | Gold | Free Hanging (In-Line) | 0.375 in | 12.7 mm | 0.5 " | 9.53 mm | Varies by Wire Gauge | 600 VAC | Plastic | Black | Unshielded | Push-Pull | Thermoplastic | Screw | |||
 SWITCHCRAFT/CONXALL | B | Backshell | IP66 IP67 IP68 IP69K | Plug Female Sockets | Keyed | -40 C | 135 °C | Copper Alloy | Thermoplastic | Gold | Free Hanging (In-Line) | 0.375 in | 12.7 mm | 0.5 " | 9.53 mm | Varies by Wire Gauge | 600 VAC | Plastic | Black | Unshielded | Push-Pull | Thermoplastic | Screw | 4 |
