68582 Series

Catalog

CONN HEADER VERT 10POS 2.54MM

Part	Number of Positions	Contact Material	Material Flammability Rating	Number of Positions Loaded	Overall Contact Length	Overall Contact Length	Style	Contact Shape	Connector Type	Features	Insulation Color	Contact Length - Mating [custom]	Contact Length - Mating [custom]	Termination	Shrouding	Mounting Type	Contact Length - Post [x]	Contact Length - Post	Contact Finish - Mating	Contact Type	Insulation Height	Insulation Height	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Pitch - Mating	Pitch - Mating	Insulation Material	Number of Rows	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating

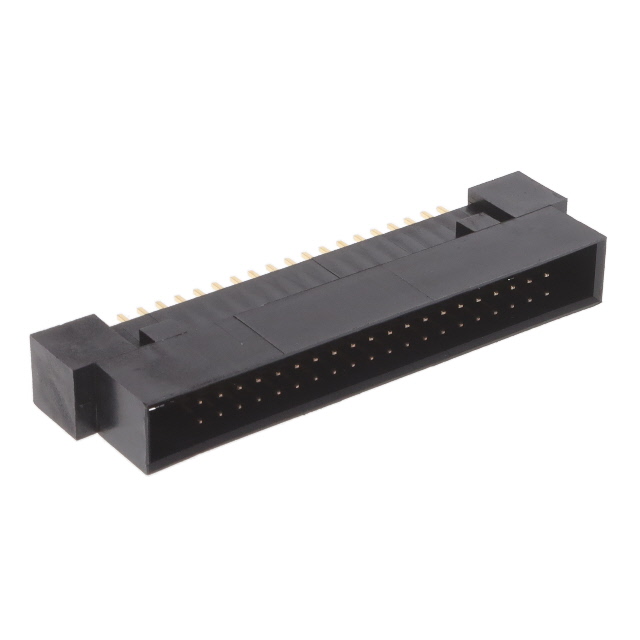

Amphenol ICC (FCI) 68582-001LF	10	Phosphor Bronze	UL94 V-0	All	0.81 in	20.57 mm	Board to Board Cable	Square	Header	Mounting Flange	Black	0.275 in	6.99 mm	Solder	Shrouded - 4 Wall	Through Hole	0.103 in	2.62 mm	Gold GXT™	Male Pin	0.755 in	19.18 mm	2.54 mm	0.1 in	0.1 in	2.54 mm	Glass Filled Nylon Polyamide (PA)	2	30 Áin	0.76 Ám
