725-112 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FML 112POS 0.100

Part	Read Out	Operating Temperature [Min]	Operating Temperature [Max]	Material - Insulation	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Number of Positions	Mounting Type	Card Type	Contact Finish Thickness	Contact Finish Thickness	Number of Positions/Bay/Row [custom]	Termination Rows	Contact Type	Termination	Contact Material	Contact Finish	Gender	Pitch [x]	Pitch [x]	Color	Number of Rows
EDAC Inc. 725-112-545-201	Dual	-40 °C	105 ░C	Polyester Thermoplastic	1.37 mm	0.054 "	1.78 mm	0.07 in	112	Through Hole	Non Specified - Dual Edge	0.76 Ám	30 Áin	56	2	Cantilever	Press-Fit Wire Wrap	Copper Alloy	Gold	Female	2.54 mm	0.1 in	Black	2
EDAC Inc. 725-112-540-201	Dual	-40 °C	105 ░C	Polyester Thermoplastic	1.37 mm	0.054 "	1.78 mm	0.07 in	112	Through Hole	Non Specified - Dual Edge	0.76 Ám	30 Áin	56	2	Cantilever	Press-Fit Wire Wrap	Copper Alloy	Gold	Female	2.54 mm	0.1 in	Black	2
EDAC Inc. 725-112-541-201	Dual	-40 °C	105 ░C	Polyester Thermoplastic	1.37 mm	0.054 "	1.78 mm	0.07 in	112	Through Hole	Non Specified - Dual Edge	0.76 Ám	30 Áin	56	2	Cantilever	Press-Fit Wire Wrap	Copper Alloy	Gold	Female	2.54 mm	0.1 in	Black	2

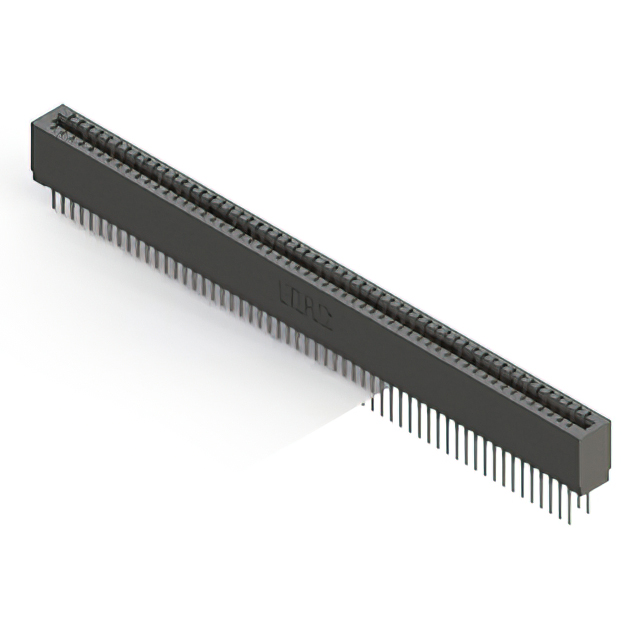

EDAC Inc. 725-112-522-201	Dual	-40 °C	105 ░C	Polyester Thermoplastic	1.37 mm	0.054 "	1.78 mm	0.07 in	112	Through Hole	Non Specified - Dual Edge	0.76 Ám	30 Áin	56	2	Cantilever	Press-Fit	Copper Alloy	Gold	Female	2.54 mm	0.1 in	Black	2
