Ultra-Fit Vertical Header, 3.50mm Pitch, Single Row, 4 Circuits, with Solder Clips, 0.38µm Gold (Au) Plating, Natural, Glow-Wire Capable
Ultra-Fit Vertical Header, 3.50mm Pitch, Single Row, 4 Circuits, with Solder Clips, 0.38µm Gold (Au) Plating, Natural, Glow-Wire Capable
Ultra-Fit Vertical Header, 3.50mm Pitch, Single Row, 4 Circuits, with Solder Clips, 0.38µm Gold (Au) Plating, Natural, Glow-Wire Capable
| Part | Contact Shape | Mated Stacking Heights | Pitch - Mating | Pitch - Mating | Insulation Height | Insulation Height | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Material | Features | Contact Type | Contact Finish - Mating | Termination | Applications | Shrouding | Connector Type | Mounting Type | Number of Rows | Insulation Material | Fastening Type | Contact Finish - Post | Material Flammability Rating | Operating Temperature [Min] | Operating Temperature [Max] | Number of Positions Loaded | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Voltage Rating | Style | Insulation Color | Contact Length - Post | Contact Length - Post [x] | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | Square | 26.99 mm | 0.138 in | 3.5 mm | 0.465 in | 11.8 mm | 15 µin | 0.38 µm | Copper Alloy | Board Guide Solder Retention | Male Pin | Gold | Solder | Automotive General Purpose Industrial Lighting Medical Military Telecommunications | Shrouded - 4 Wall | Header | Through Hole | 1 | Liquid Crystal Polymer (LCP) | Latch Holder | Tin | UL94 V-0 | -40 °C | 120 °C | All | 60 µin | 1.52 µm | 400 V | Board to Cable/Wire | Natural | 3.2 mm | 0.126 in | 2 |
 Molex | Square | 26.99 mm | 0.138 in | 3.5 mm | 0.465 in | 11.8 mm | 60 Áin | 1.52 Ám | Copper Alloy | Board Guide Solder Retention | Male Pin | Solder | Automotive General Purpose Industrial Lighting Medical Military Telecommunications | Shrouded - 4 Wall | Header | Through Hole | 1 | Liquid Crystal Polymer (LCP) | Latch Holder | Tin | UL94 V-0 | -40 °C | 105 ░C | All | 60 µin | 1.52 µm | 400 V | Board to Cable/Wire | Natural | 3.2 mm | 0.126 in | 6 | |

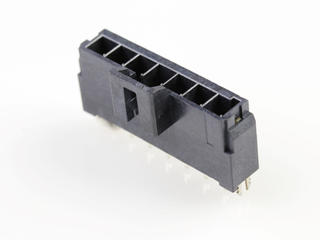

 Molex | Square | 26.99 mm | 0.138 in | 3.5 mm | 0.465 in | 11.8 mm | 15 µin | 0.38 µm | Copper Alloy | Solder Retention | Male Pin | Gold | Solder | Automotive General Purpose Industrial Lighting Medical Military Telecommunications | Shrouded - 4 Wall | Header | Through Hole | 1 | Liquid Crystal Polymer (LCP) | Latch Holder | Tin | UL94 V-0 | -40 °C | 120 °C | All | 60 µin | 1.52 µm | 400 V | Board to Cable/Wire | Black | 3.2 mm | 0.126 in | 7 |

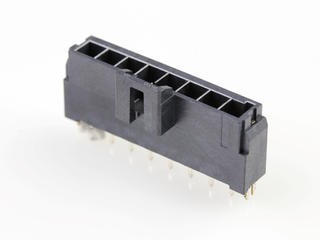

 Molex | Square | 26.99 mm | 0.138 in | 3.5 mm | 0.465 in | 11.8 mm | 30 Áin | 0.76 Ám | Copper Alloy | Board Guide Solder Retention | Male Pin | Gold | Solder | Automotive General Purpose Industrial Lighting Medical Military Telecommunications | Shrouded - 4 Wall | Header | Through Hole | 1 | Liquid Crystal Polymer (LCP) | Latch Holder | Tin | UL94 V-0 | -40 °C | 120 °C | All | 60 µin | 1.52 µm | 400 V | Board to Cable/Wire | Black | 3.2 mm | 0.126 in | 8 |
 Molex | Square | 26.99 mm | 0.138 in | 3.5 mm | 0.465 in | 11.8 mm | 15 µin | 0.38 µm | Copper Alloy | Solder Retention | Male Pin | Gold | Solder | Automotive General Purpose Industrial Lighting Medical Military Telecommunications | Shrouded - 4 Wall | Header | Through Hole | 1 | Liquid Crystal Polymer (LCP) | Latch Holder | Tin | UL94 V-0 | -40 °C | 120 °C | All | 60 µin | 1.52 µm | 400 V | Board to Cable/Wire | Black | 3.2 mm | 0.126 in | 2 |
 Molex | Square | 26.99 mm | 0.138 in | 3.5 mm | 0.465 in | 11.8 mm | 60 Áin | 1.52 Ám | Copper Alloy | Solder Retention | Male Pin | Solder | Automotive General Purpose Industrial Lighting Medical Military Telecommunications | Shrouded - 4 Wall | Header | Through Hole | 1 | Liquid Crystal Polymer (LCP) | Latch Holder | Tin | UL94 V-0 | -40 °C | 105 ░C | All | 60 µin | 1.52 µm | 400 V | Board to Cable/Wire | Black | 3.2 mm | 0.126 in | 6 | |
 Molex | Square | 26.99 mm | 0.138 in | 3.5 mm | 0.465 in | 11.8 mm | 60 Áin | 1.52 Ám | Copper Alloy | Solder Retention | Male Pin | Solder | Automotive General Purpose Industrial Lighting Medical Military Telecommunications | Shrouded - 4 Wall | Header | Through Hole | 1 | Liquid Crystal Polymer (LCP) | Latch Holder | Tin | UL94 V-0 | -40 °C | 105 ░C | All | 60 µin | 1.52 µm | 400 V | Board to Cable/Wire | Black | 3.2 mm | 0.126 in | ||
 Molex | Square | 26.99 mm | 0.138 in | 3.5 mm | 0.465 in | 11.8 mm | 60 Áin | 1.52 Ám | Copper Alloy | Solder Retention | Male Pin | Solder | Automotive General Purpose Industrial Lighting Medical Military Telecommunications | Shrouded - 4 Wall | Header | Through Hole | 1 | Liquid Crystal Polymer (LCP) | Latch Holder | Tin | UL94 V-0 | -40 °C | 105 ░C | All | 60 µin | 1.52 µm | 400 V | Board to Cable/Wire | Black | 3.2 mm | 0.126 in | 4 | |
 Molex | Square | 26.99 mm | 0.138 in | 3.5 mm | 0.465 in | 11.8 mm | 60 Áin | 1.52 Ám | Copper Alloy | Board Guide Solder Retention | Male Pin | Solder | Automotive General Purpose Industrial Lighting Medical Military Telecommunications | Shrouded - 4 Wall | Header | Through Hole | 1 | Liquid Crystal Polymer (LCP) | Latch Holder | Tin | UL94 V-0 | -40 °C | 105 ░C | All | 60 µin | 1.52 µm | 400 V | Board to Cable/Wire | Natural | 3.2 mm | 0.126 in | ||
Molex | Square | 26.99 mm | 0.138 in | 3.5 mm | 0.465 in | 11.8 mm | 15 µin | 0.38 µm | Copper Alloy | Board Guide Solder Retention | Male Pin | Gold | Solder | Automotive General Purpose Industrial Lighting Medical Military Telecommunications | Shrouded - 4 Wall | Header | Through Hole | 1 | Liquid Crystal Polymer (LCP) | Latch Holder | Tin | UL94 V-0 | -40 °C | 120 °C | All | 60 µin | 1.52 µm | 400 V | Board to Cable/Wire | Natural | 3.2 mm | 0.126 in | 6 |
