09307160 Series
Manufacturer: HARTING
Beta
⌘K
16B HOOD TOP ENTRY, SINGLE LEVER
| Part | Size | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Housing Color | Housing Material | Operating Temperature [Max] | Operating Temperature [Min] | Features | Style | Housing Finish | Ingress Protection | Connector Type | Lock Location | Thread Size | Size / Dimension [y] | Size / Dimension [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 HARTING | ||||||||||||||||||||

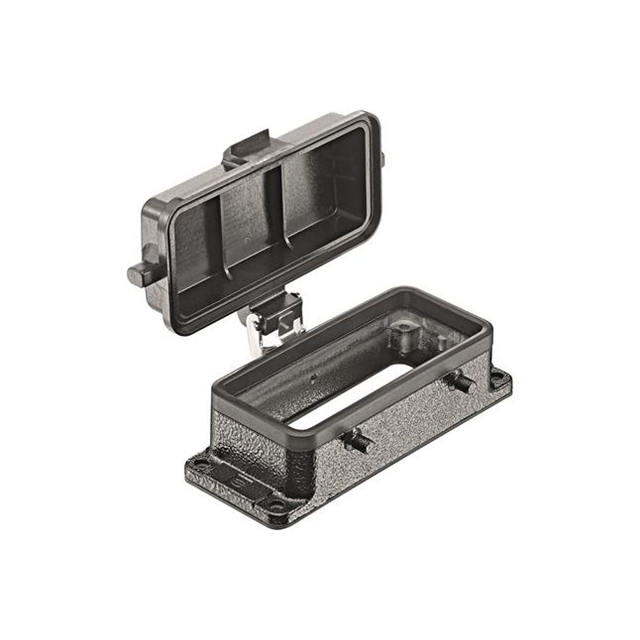

 HARTING | 16 B | 113 mm | 43.4 mm | 4.449 " | 1.138 " | 28.9 mm | 1.709 " | Black | Aluminum Die Cast | 125 °C | -40 C | Cover | Bottom Entry | Powder Coated | IP65 - Dust Tight Water Resistant | Base - Panel Mount | Locking Clip (2) on Base Bottom | |||
HARTING | 16 B | 93.5 mm | 3.681 in | 2.992 in | 1.693 " | Black | Aluminum Die Cast | 125 °C | -40 C | Side Entry | Powder Coated | IP65 - Dust Tight Water Resistant | Hood | Locking Clip (2) on Hood | PG29 | 43 mm | 76 mm | |||

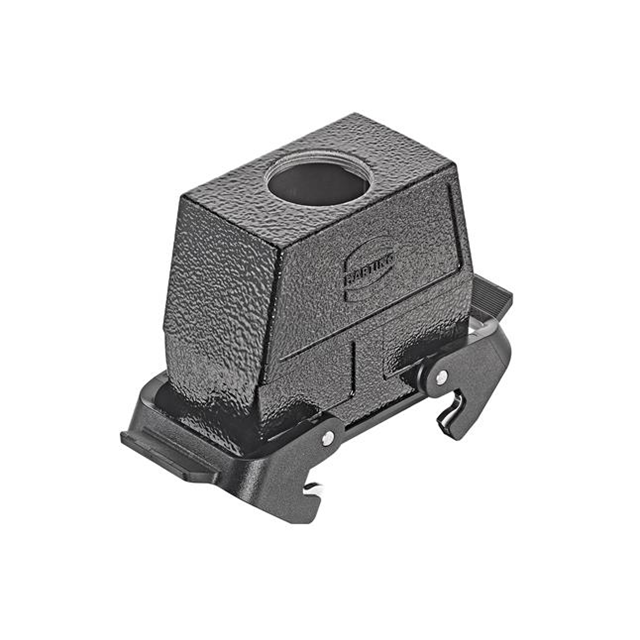

 HARTING | 16 B | 93.5 mm | 3.681 in | 3.087 " | 1.693 " | Black | Aluminum Die Cast | 125 °C | -40 C | Cable to Cable | Bottom Entry Top or Bottom Entry | Powder Coated | IP65 - Dust Tight Water Resistant | Hood - Coupling | Locking Clip (2) on Hood Top | PG21 | 43 mm | 78.4 mm |
