SRR1240 Series

Catalog

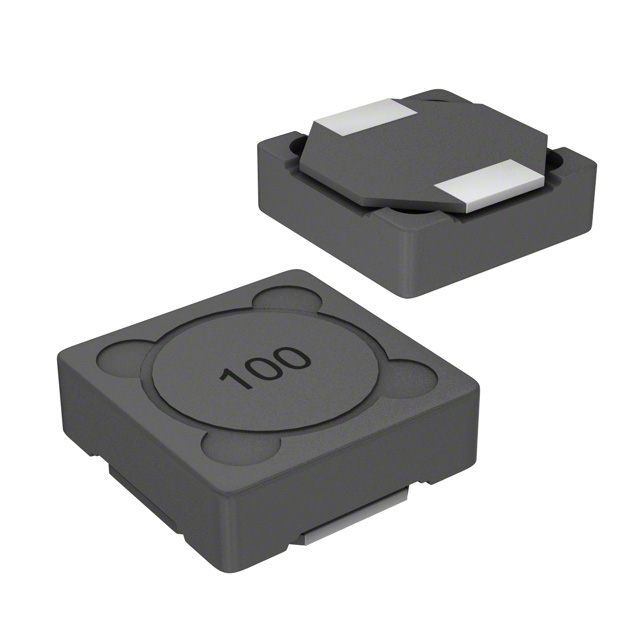

SURFACE MOUNT POWER INDUCTOR, SRR1240 SERIES, 6.8 H, 20%, SHIELDED, 0.023 OHM, 5.2 A ROHS COMPLIANT: YES

Part	Frequency - Self Resonant	Current Rating (Amps)	DC Resistance (DCR) [Max]	Material - Core	Type	Tolerance	Inductance Frequency - Test	Q @ Freq [custom]	Q @ Freq [custom]	Mounting Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Current - Saturation (Isat)	Shielding	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Inductance	Q @ Freq	DC Resistance (DCR)
Bourns Inc. SRR1240-6R8M	34 MHz	5.2 A	23 mOhm	Ferrite	Drum Core Wirewound	20 %	100 kHz	14	7.96 MHz	Surface Mount	12.5 mm	0.492 "	12.5 mm	0.492 "	Nonstandard	125 °C	-40 C	4.7 A	Shielded	4.5 mm	0.177 in	6.8 µH
Bourns Inc. SRR1240-1R5Y	80 MHz	9.2 A	9.5 mOhm	Ferrite	Drum Core Wirewound	30 %	100 kHz			Surface Mount	12.5 mm	0.492 "	12.5 mm	0.492 "	Nonstandard	125 °C	-40 C	9 A	Shielded	4.5 mm	0.177 in	1.5 µH	7.96 MHz 16
Bourns Inc. SRR1240-3R9Y	39 MHz	6.35 A	15 mOhm	Ferrite	Drum Core Wirewound	30 %	100 kHz	14	7.96 MHz	Surface Mount	12.5 mm	0.492 "	12.5 mm	0.492 "	Nonstandard	125 °C	-40 C	6.2 A	Shielded	4.5 mm	0.177 in	3.9 µH
Bourns Inc. SRR1240-100M	27 MHz	4 A		Ferrite	Drum Core Wirewound	20 %	100 kHz			Surface Mount	12.5 mm	0.492 "	12.5 mm	0.492 "	Nonstandard	125 °C	-40 C	4 A	Shielded	4.5 mm	0.177 in	10 µH	2.52 MHz 17	32 mOhm
Bourns Inc. SRR1240-5R6M	35 MHz	5.4 A	20 mOhm	Ferrite	Drum Core Wirewound	20 %	100 kHz	14	7.96 MHz	Surface Mount	12.5 mm	0.492 "	12.5 mm	0.492 "	Nonstandard	125 °C	-40 C	5.1 A	Shielded	4.5 mm	0.177 in	5.6 µH
Bourns Inc. SRR1240-270M	15.5 MHz	2.55 A	85 mOhm	Ferrite	Drum Core Wirewound	20 %	100 kHz			Surface Mount	12.5 mm	0.492 "	12.5 mm	0.492 "	Nonstandard	125 °C	-40 C	2.35 A	Shielded	4.5 mm	0.177 in	27 µH	2.52 MHz 16
Bourns Inc. SRR1240-331K	5.5 MHz	750 mA	950 mOhm	Ferrite	Drum Core Wirewound	10 %	100 kHz			Surface Mount	12.5 mm	0.492 "	12.5 mm	0.492 "	Nonstandard	125 °C	-40 C	750 mA	Shielded	4.5 mm	0.177 in	330 µH	12 796 kHz
Bourns Inc. SRR1240-390M	14 MHz	2.15 A	120 mOhm	Ferrite	Drum Core Wirewound	20 %	100 kHz			Surface Mount	12.5 mm	0.492 "	12.5 mm	0.492 "	Nonstandard	125 °C	-40 C	2 A	Shielded	4.5 mm	0.177 in	39 µH	2.52 MHz 14
Bourns Inc. SRR1240-271K	6 MHz	800 mA		Ferrite	Drum Core Wirewound	10 %	100 kHz	10	796 kHz	Surface Mount	12.5 mm	0.492 "	12.5 mm	0.492 "	Nonstandard	125 °C	-40 C	800 mA	Shielded	4.5 mm	0.177 in	270 µH		780 mOhm
Bourns Inc. SRR1240-101K	8 MHz	1.25 A	300 mOhm	Ferrite	Drum Core Wirewound	10 %	100 kHz			Surface Mount	12.5 mm	0.492 "	12.5 mm	0.492 "	Nonstandard	125 °C	-40 C	1.2 A	Shielded	4.5 mm	0.177 in	100 µH	14 796 kHz
